AmeriGlide Atlas Vertical Platform Lift - Commercial

spacer

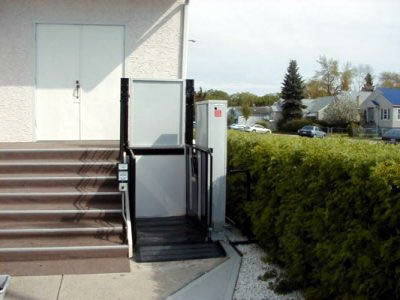

  • AmeriGlide Atlas Vertical Platform Lift - Commercial

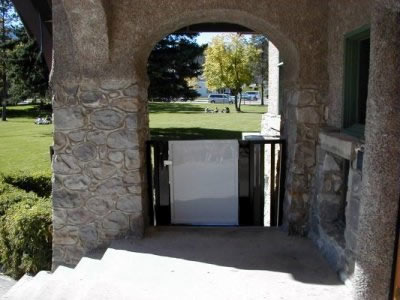

  • Commercial Installation - Angle 1

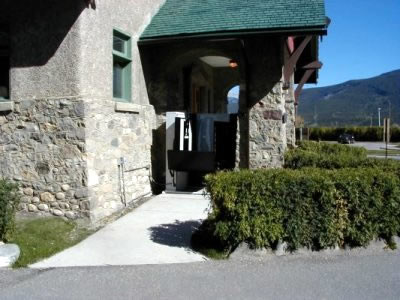

  • Commercial Installation - Angle 2
spacer
click an image to enlarge
Warranty
Warranty
Add To Cart
$12,900.00
$9,499.00
Free Shipping
Product Review
(0 reviews)
(0)
Write a review!

More and more commercial locations are realizing the benefits of providing access to their locations for customers who use wheelchairs, power chairs, scooters, and other mobility devices. Customers are loyal to businesses that meet their needs, and making it easy to get into your location by installing a commercial Atlas VPL meets the needs of these mobility device users.

Of course, meeting ADA and other local code requirements is going to be a factor, too. The commercial Atlas VPL does this by providing standard: a pair of interlocks, full length side walls, keyed platform controls with emergency stop, emergency alarm, & light, upper and lower keyed call boxes, a solid platform, and a wide platform entry ramp. What's more, this lift can be configured even further for 3 stop applications and a variety of other applications.

For commercial installations please obtain approval from your local elevator branch before beginning construction.

spacer
Features
Lifting Capacity 550 lb
Standard Lift Height 96"
Maximum Lift Height 144"
Portable No
Arrives Assembled No
Drive System Direct Worm-Gear & Screw-Nut
Optional Drive Systems None
Battery Powered Option Yes
Constant Pressure Platform Control Yes
Emergency Stop Platform Control Standard
Alarm Button Standard
Keyed Platform Control Standard
Call-Send Controls One Direction with Key x2
Optional Call-Send Controls Two Direction Toggle, Two Direction Toggle with Key
Platform Type Solid
Platform Size 34" x 54"
Optional Platform Sizes 40" x 54"
Platform Configuration Straight-Thru Access
Optional Platform Configurations Adjacent Access
Upper Landing Gate Optional
Upper Access Ramp None Available
Lower Access Ramp 18" Fixed Toeplate
Grab Rail Optional
Guard Panel Standard
Maximum Stops 3

Options Available

  • Lifting Height

    • 96" Maximum Lift Height
      $0.00
      No Image
      spacer
    • 120" Maximum Lift Height
      $571.42
      No Image
      spacer
    • 144" Maximum Lift Height
      $1,321.42
      No Image
      spacer

  • Tower Orientation

    • Tower On The Left
      $0.00
      No Image
      spacer
    • Tower On The Right
      $0.00
      No Image
      spacer

  • Power Source

    • AC Powered
      $0.00
      No Image
      spacer
    • AC Powered with DC Battery Backup (Batteries Not Included)
      $1,572.05
      No Image
      spacer

  • Platform Size

    • 34" x 54" Platform
      $0.00
      No Image
      spacer
    • 40" x 54" Platform (For Adjacent Access Only)
      $0.00
      No Image
      spacer

  • Platform Access

    • Straight Through
      $0.00
      No Image
      spacer
    • Adjacent Access
      $228.58
      No Image
      spacer
    • Same Side Entry / Exit (also requires Solid End Wall)
      $471.43
      No Image
      spacer

  • Platform Gate

    • No Platform Gate
      $0.00
      No Image
      spacer
    • Platform Gate
      $478.58
      No Image
      spacer

  • Platform Controls

    • Paddle Controls with Emergency Stop Button
      $0.00
      No Image
      spacer

  • Platform Control Options

    • Keylock for Platform Controls
      $0.00
      No Image
      spacer
    • Audible Emergency Alarm & Light Package with Backlit Emergency Stop Button
      $0.00
      No Image
      spacer

  • Platform Options

    • 18" Toeplate for Ground to Platform Transition
      $0.00
      No Image
      spacer
    • Full Length Side Walls
      $0.00
      No Image
      spacer
    • Solid Platform
      $0.00
      No Image
      spacer
    • Solid Platform with Safety Pan
      $214.29
      No Image
      spacer
    • Solid End Wall
      $314.29
      No Image
      spacer
    • Inside Grab Bar - 48"
      $107.15
      No Image
      spacer

  • Landing Controls

    • Upper Keyed Pushbutton Call Control
      $0.00
      No Image
      spacer
    • Lower Keyed Pushbutton Call Control
      $0.00
      No Image
      spacer
    • Additional Pushbutton Call Control (each)
      $135.00
      No Image
      spacer
    • Additional Keyed Pushbutton Call Control (each)
      $230.00
      No Image
      spacer
    • Additional Toggle Call & Send Control (each)
      $195.00
      No Image
      spacer
    • Additional Keyed Toggle Call & Send Control (each)
      $285.00
      No Image
      spacer

  • Landing Gate

    • Left Swing Upper Landing Gate
      $507.15
      No Image
      spacer
    • Right Swing Upper Landing Gate
      $507.15
      No Image
      spacer
    • Lower Non-Fire Door with Interlock
      $2,107.15
      No Image
      spacer
    • Lower Fire Door with Interlock
      $3,728.58
      No Image
      spacer
    • Upper Non-Fire Door with Interlock
      $2,107.15
      No Image
      spacer
    • Upper Fire Door with Interlock
      $3,728.58
      No Image
      spacer

  • Landing Gate Options

    • Oversized Upper Landing Gate Upcharge
      $378.58
      No Image
      spacer

  • Interlocks

    • Upper and Lower Interlocks
      $0.00
      No Image
      spacer
    • Additional Interlocks (each)
      $450.00
      No Image
      spacer

  • Additional Options

    • 3rd Stop Wiring Charge
      $450.00
      No Image
      spacer
    • Batteries for Backup System
      $335.05
      No Image
      spacer

  • Additional Delivery Services

    • Trucking Terminal or Commercial Location with Loading Dock
      $0.00
      No Image
      spacer
    • Liftgate Delivery, 28" & 52" Units Only
      $279.00
      No Image
      spacer
    • Limited Access Delivery Charge
      $109.00
      No Image
      spacer
    • AK, HI, PR, or International - Please Call for Quote
      $0.00
      No Image
      spacer
spacer
