AmeriGlide Atlas Vertical Platform Lift - Residential

spacer
  • AmeriGlide Atlas Vertical Platform Lift - Residential

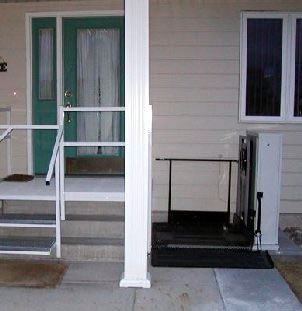

  • Residential Example 1

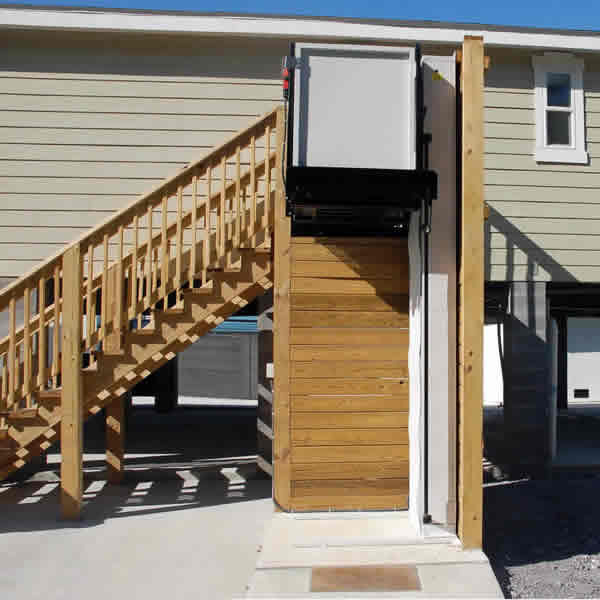

  • Residential Example 2
  • Residential Example 3
spacer
click an image to enlarge
Warranty
Warranty
Add To Cart
$6,500.00
$4,799.00
Free Shipping
Product Review
(0 reviews)
(0)
Write a review!

Designed to meet US and Canadian safety standards, the residential Atlas VPL has provided safe, reliable, and independent access to the homes of mobility device users across North America. The residential Atlas features an expanded metal platform, an automatic folding access ramp, keyed platform controls, and lift heights from 6 feet to 12 feet, making it the tallest residential unit available on the market today.

spacer
Features
Lifting Capacity 550 lb
Standard Lift Height 72"
Maximum Lift Height 144"
Portable No
Arrives Assembled No
Drive System Direct Worm-Gear & Screw-Nut
Optional Drive Systems None Available
Battery Powered Option Yes
Constant Pressure Platform Control Yes
Emergency Stop Platform Control Standard
Alarm Button None Available
Keyed Platform Control Standard
Call-Send Controls Not Included
Optional Call-Send Controls Call-Send, Call-Send with Key, Toggle, Toggle with Key
Platform Type Expanded Metal
Platform Size 34" x 54"
Optional Platform Sizes 40" x 54"
Platform Configuration Straight-Thru Access
Optional Platform Configurations Adjacent Access
Upper Landing Gate Optional
Upper Access Ramp None Available
Lower Access Ramp Automatic Folding
Grab Rail Standard
Guard Panel Optional
Maximum Stops 3

Options Available

  • Lifting Height

    • 72" Maximum Lift Height
      $0.00
      No Image
      spacer
    • 96" Maximum Lift Height
      $1,700.00
      No Image
      spacer
    • 120" Maximum Lift Height
      $2,250.00
      No Image
      spacer
    • 144" Maximum Lift Height
      $3,000.00
      No Image
      spacer

  • Tower Orientation

    • Tower On The Left
      $0.00
      No Image
      spacer
    • Tower On The Right
      $0.00
      No Image
      spacer

  • Power Source

    • AC Powered
      $0.00
      No Image
      spacer
    • AC Powered with DC Battery Backup (Batteries Not Included)
      $1,572.05
      No Image
      spacer

  • Platform Size

    • 34" x 54" Platform
      $0.00
      No Image
      spacer
    • 40" x 54" Platform (For Adjacent Access Only)
      $0.00
      No Image
      spacer

  • Platform Access

    • Straight Through
      $0.00
      No Image
      spacer
    • 90° Adjacent Access
      $228.58
      No Image
      spacer
    • Same Side Entry / Exit (requires Solid End Wall)
      $471.43
      No Image
      spacer

  • Platform Gate

    • No Platform Gate
      $0.00
      No Image
      spacer
    • Platform Gate with Interlock
      $928.58
      No Image
      spacer

  • Platform Controls

    • Paddle Controls with Emergency Stop Button
      $0.00
      No Image
      spacer

  • Platform Control Options

    • Keylock for Platform Controls
      $0.00
      No Image
      spacer
    • Backlit Emergency Stop Button
      $100.00
      No Image
      spacer

  • Platform Options

    • Automatic Ramp for Ground to Platform Transition
      $0.00
      No Image
      spacer
    • Solid Hand Rail
      $185.72
      No Image
      spacer
    • Solid End Wall
      $314.29
      No Image
      spacer
    • Control Wall Extension
      $314.29
      No Image
      spacer
    • Solid Platform
      $271.43
      No Image
      spacer
    • Solid Platform with Safety Pan
      $485.72
      No Image
      spacer
    • Inside Grab Bar - 48"
      $107.15
      No Image
      spacer

  • Landing Controls

    • Pushbutton Call Control (each)
      $135.00
      No Image
      spacer
    • Keyed Pushbutton Call Control (each)
      $232.50
      No Image
      spacer
    • Toggle Call & Send Control (each)
      $195.00
      No Image
      spacer
    • Keyed Toggle Call & Send Control (each)
      $285.00
      No Image
      spacer

  • Landing Gate

    • No Landing Gate
      $0.00
      No Image
      spacer
    • Left Swing Landing Gate - with Interlock & Keyed Pushbutton Call Control
      $1,185.72
      No Image
      spacer
    • Right Swing Landing Gate - with Interlock & Keyed Pushbutton Call Control
      $1,185.72
      No Image
      spacer
    • Left Swing Landing Gate - with Interlock & Keyed Toggle Call/Send Control
      $1,242.86
      No Image
      spacer
    • Right Swing Landing Gate - with Interlock & Keyed Toggle Call/Send Control
      $1,242.86
      No Image
      spacer

  • Landing Gate Options

    • Oversized Upper Landing Gate Upcharge
      $378.58
      No Image
      spacer

  • Interlocks

    • Additional Interlock (each)
      $450.00
      No Image
      spacer

  • Other Options

    • 3 Stop Wiring Charge
      $450.00
      No Image
      spacer
    • Batteries for Backup System
      $335.05
      No Image
      spacer

  • Additional Delivery Services

    • Trucking Terminal or Commercial Location with Loading Dock
      $0.00
      No Image
      spacer
    • Liftgate Delivery, 28" & 52" Units Only
      $279.00
      No Image
      spacer
    • Limited Access Delivery Charge
      $109.00
      No Image
      spacer
    • AK, HI, PR, or International - Please Call for Quote
      $0.00
      No Image
      spacer
