AmeriGlide Hercules II Residential Reconditioned Vertical Platform Lift

click an image to enlarge

$4,589.00

$3,439.00

Plus Shipping

Product Review

(0)

(100)

Write a review!

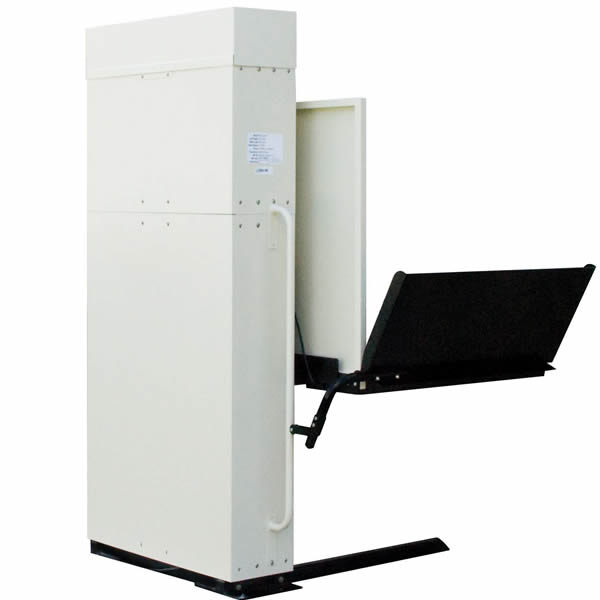

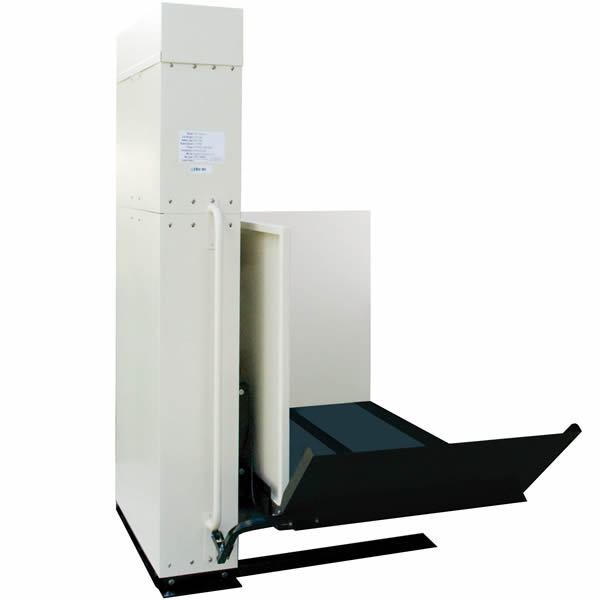

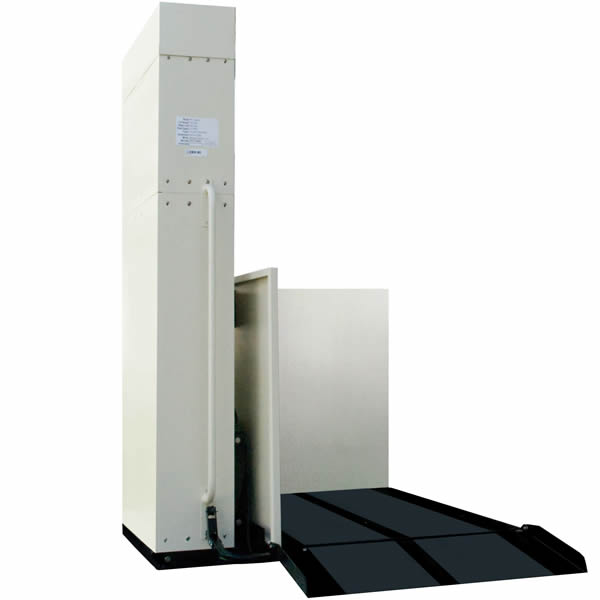

The Reconditioned AmeriGlide Hercules II Residential Vertical Platform Lift is a like-new lift that meets the same specifications of new Hercules II Residential lifts. This means that it maintains the same safety standards and quality of construction, but has a 30 day parts warranty instead of a 1 year parts warranty. The Reconditioned Residential uses a screw drive system and comes with an automatic folding ramp and a solid platform. Numerous safety features are incorporated into its design as well.

Complies with ASME A18.1 (Section 5), CSA B44.1 / ASME 17.5 safety design standards.

Features

Lifting Capacity	600 lb
Standard Lift Height	53"
Maximum Lift Height	171"
Portable	No
Arrives Assembled	No
Drive System	Acme Screw Drive
Optional Drive Systems	None Available
Battery Powered Option	Yes
Constant Pressure Platform Control	Yes
Emergency Stop Platform Control	Included
Alarm Button	Optional Audible Alarm
Keyed Platform Control	Optional
Call-Send Controls	Optional Non-Keyed & Keyed Call-Send
Platform Type	Solid with Non-Skid Coating
Platform Size	36" x 48" Platform (34" Usable Width)
Optional Platform Sizes	36" x 54", 36" x 60", 42" x 54" (40" Usable Width)
Platform Configuration	Straight-Thru Access
Optional Platform Configurations	Same Side Entry-Exit, Adjacent Access
Upper Landing Gate	Optional
Upper Access Ramp	None Available
Lower Access Ramp	Automatic Folding, Optional Fixed
Grab Rail	Included
Guard Panel	36", Optional 42"
Maximum Stops	3
Lift Speed (FPM)	10

Options Available

Lifting Height
- 53" Max Lift Height, Acme Screw Drive

  $0.00
- 77" Max Lift Height, Acme Screw Drive

  $660.00
- 101" Max Lift Height, Acme Screw Drive

  $1,680.00
- 125" Max Lift Height, Acme Screw Drive

  $3,150.00
- 149" Max Lift Height, Ball Screw Drive

  $4,780.00
- 171" Max Lift Height, Ball Screw Drive

  $6,040.00
Crating & Assembly
- No Crating - Some assembly is required.

  $0.00
- 36" x 48" or 36" x 54" Platform

  $0.00
- 53" Unit Shipped Crated & Fully Assembled

  $461.05
- 36" x 60" or 42" x 54" Platform - Requires Extra Large Crate

  $0.00
- 53" Unit Shipped Crated & Fully Assembled

  $690.77
Tower Orientation
- Tower On The Left

  $0.00
- Tower On The Right

  $0.00
Power Source
- AC Powered

  $0.00
- DC Battery Powered - Battery provides 15-20 cycles during power outage. Batteries included.

  $1,000.05
Electronics
- A standard electronics control board will work with a landing gate, one call/send only, and 36" side walls.

  $0.00
- Standard Electronics Control Board

  $0.00
- A commercial electronics control board allows operation with doors, gates, multiple call/send controls, and other devices.

  $0.00
- 42" high side walls require a Commercial Electronics Control Board

  $0.00
- Commercial Electronics Control Board

  $308.05
- Ball Screw Drive Models Include A Commercial Electronics Control Board

  $0.00
Portable Package
- None

  $0.00

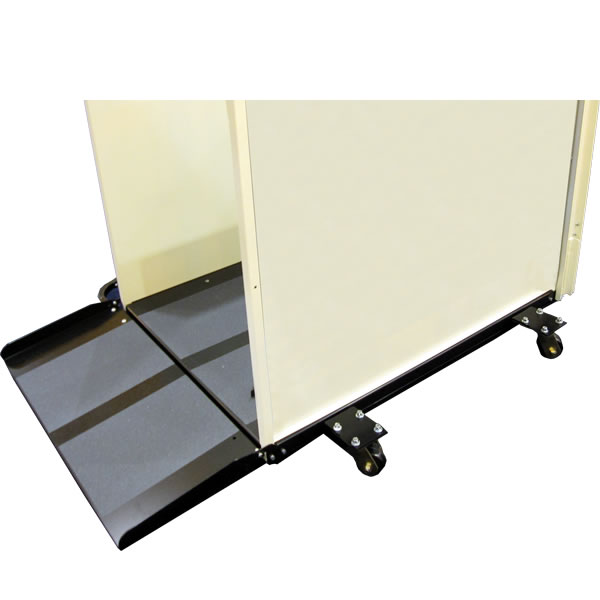

- Portable Package
  53" or 77" Max Lift Height
  36" x 54" Straight Thru Platform
  Platform Gate On Exit Side Included

  $1,614.05
- Portable Package also includes an Automatic Ramp and Safety Pan

  $0.00
Platform Type
- 36" x 48" Straight Thru (34" Usable Width)

  $0.00
- 36" x 54" Straight Thru (34" Usable Width)

  $154.05
- 36" x 60" Straight Thru (34" Usable Width)

  $246.05
- 42" x 54" Straight Thru (40" Usable Width)

  $492.05
- 36" x 54" 90 Degree (34" Usable Width)

  $369.05
- 36" x 60" 90 Degree (34" Usable Width)

  $491.05
- 42" x 54" 90 Degree (40" Usable Width)

  $738.05
Platform Access
- Straight Thru or 90 Degree

  $0.00
- Same Side Entry & Exit - Lift height must be 101" or greater.

  $369.05
Platform Gate
- Lifts 8' and over that are not in a hoistway require a platform gate or an interlock for a customer provided gate.

  $0.00
- Platform gates require 42" high side walls (found below).

  $0.00
- No Platform Gate

  $0.00

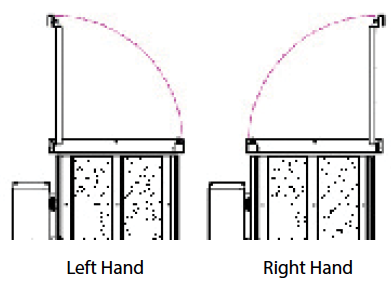

- Left Swing 36" Wide Straight Thru Platform Gate with Interlock

  $614.05
- Right Swing 36" Wide Straight Thru Platform Gate with Interlock

  $614.05
- Left Swing 42" Wide Straight Thru Platform Gate with Interlock

  $861.05
- Right Swing 42" Wide Straight Thru Platform Gate with Interlock

  $861.05
- Left Swing 90 Degree Platform Gate with Interlock

  $985.05
- Right Swing 90 Degree Platform Gate with Interlock

  $985.05
Platform Controls
- Paddle Controls with Emergency Stop Button

  $0.00
Platform Control Options
- Emergency Alarm & Lighted Button

  $209.05
- Keylocks for Controls

  $34.05
Platform Options
- Solid Platform with Safety Pan

  $0.00
- Inside Grab Bar

  $0.00
- 42" high side walls are required for lifts 8' and taller.

  $0.00
- 42" high side walls are required for ANY lift with a platform gate.

  $0.00

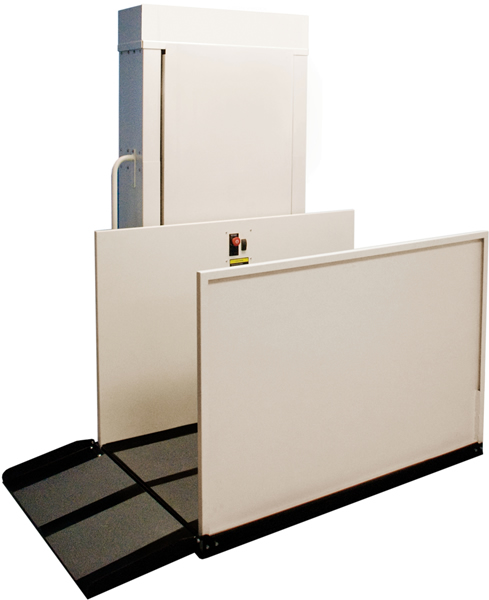

- 36" High Side Walls

  $0.00
- 42" High Side Walls

  $153.05
- 42" high side walls require a Commercial Electronics Control Board

  $0.00
Ramp Type & Pit Switch
- Automatic Ramp

  $0.00
- Fixed Ramp

  $0.00
- No Ramp with Pit Switch Option

  $123.05
Landing Controls
- Call/Send Control Station (each)

  $119.00
- Wireless Call/Send Control Stations (pair)

  $479.00

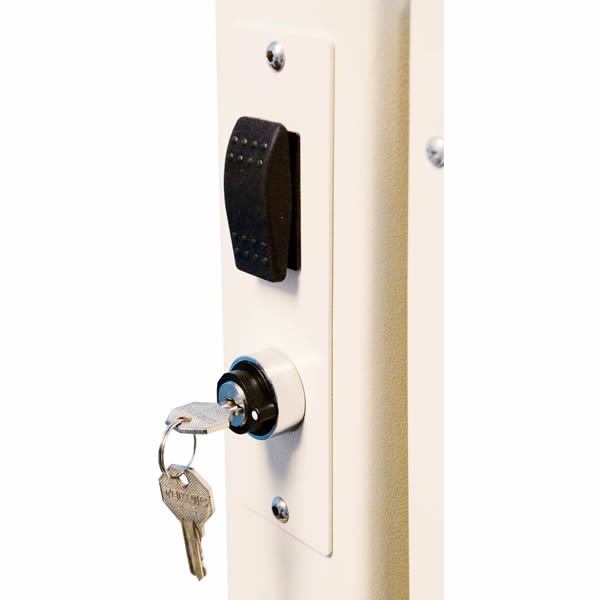

- Keylocks for Controls (each)

  $34.00
Landing Gate
- Landing gates below include an interlock and a call/send control built into the gate.

  $0.00

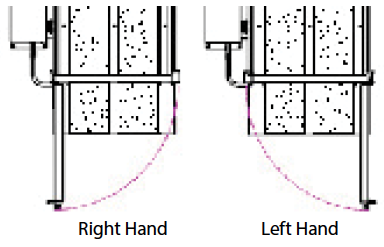

- Left Swing 36" Wide Landing Gate with Interlock & Call/Send Control (each)

  $809.00
- Right Swing 36" Wide Landing Gate with Interlock & Call/Send Control (each)

  $809.00
- Left Swing 42" Wide Landing Gate with Interlock & Call/Send Control (each)

  $979.00
- Right Swing 42" Wide Landing Gate with Interlock & Call/Send Control (each)

  $979.00
- Keylocks for Controls (each)

  $34.00
- Landing gates below include an interlock only.

  $0.00
- Left Swing 36" Wide Landing Gate with Interlock Only (each)

  $739.00
- Right Swing 36" Wide Landing Gate with Interlock Only (each)

  $739.00
- Left Swing 42" Wide Landing Gate with Interlock Only (each)

  $909.00
- Right Swing 42" Wide Landing Gate with Interlock Only (each)

  $909.00
- Keylocks for Controls (each)

  $34.00
Fire Rated Doors
- No Door

  $0.00
- Fire-Rated Hoistway Door with EMI - Left (each)

  $2,079.00
- Fire-Rated Hoistway Door with EMI - Right (each)

  $2,079.00
- Fire-Rated Hoistway Door with Electric Strike - Left (each)

  $2,219.00
- Fire-Rated Hoistway Door with Electric Strike - Right (each)

  $2,219.00
Interlocks
- Surface mount EMI interlocks below are for a customer provided door or gate.

  $0.00
- Left Swing Top Landing Door/Gate EMI Interlock (each)

  $409.00
- Right Swing Top Landing Door/Gate EMI Interlock (each)

  $409.00
- Flush mount electric strike interlocks below are for a customer provided door or gate.

  $0.00
- Top Landing Electric Strike Interlock - Metal Frame (each)

  $409.00
- Bottom Landing Electric Strike Interlock - Metal Frame (each)

  $409.00
- Top Landing Electric Strike Interlock - Wood Frame (each)

  $409.00
- Bottom Landing Electric Strike Interlock - Wood Frame (each)

  $409.00
- Other Interlock Options

  $0.00
- Keyed Dead Latch for Flush Mount Electric Strike Interlock (each)

  $139.00
- Wiring For Interlock (per landing)

  $159.00
Accessories
- Anchor Bolt Kit

  $0.00
- Tower Braces

  $155.05
- 3rd Stop Wiring Charge

  $492.05
- Phone Jack

  $138.05
- Emergency Light

  $137.05
- Fascia Panel (per foot)

  $59.00
- Automatic Door Opener - Requires Upgraded Electronics

  $2,349.00
Additional Delivery Services
- Free Liftgate Service on 53" Units As Requested

  $0.00
