Vertical Platform Lift Technical Specifications

Back
Adjacent Access
Straight Through Access
spacer
Deck Dimensions (L, D, W)
Access
L
Deck Length		D
Deck Width		W
Total Width
Straight Through Access
54" (1372 mm)
34" (864 mm)
48" (1219 mm)
Adjacent Access
54" (1372 mm)
40" (1016 mm)
54" (1372 mm)
spacer
Tower Dimensions
Total Travel
H
Tower Height
28" (711 mm) Lift Height
48" (1219 mm)
52" (1321 mm) Lift Height
72" (1829 mm)
72" (1829 mm) Lift Height
92" (2337 mm)
96" (2438 mm) Lift Height
118" (2997 mm)
120" (3048 mm) Lift Height
142" (3607 mm)
144" (3658 mm) Lift Height
166" (4216 mm)
spacer
spacer
spacer

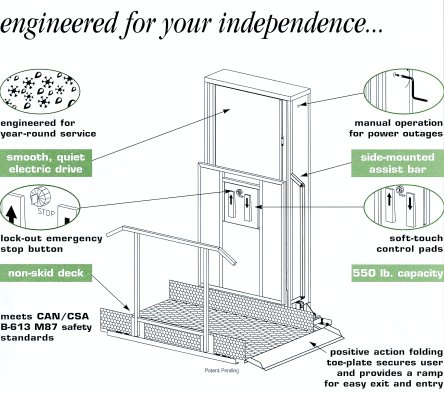

Technical
  • Constant pressure Soft Touch control pads
  • 550 pound (250-kg) lift capacity
  • Constant pressure Soft Touch control pads
  • 8 feet/minute lift speed
  • Direct worm gear/acme screw drive
  • Non-load-bearing backup safety nut on lift shaft
  • Low maintenance
  • Expanded metal platform with full under platform visibility and non skid surface
  • 8" positive action, reversible toe-plate for universal access
  • Emergency manual operation
  • Fuse box accessible from carriage
  • Quick and easy set-up and adjustment
  • Baked on Powder Coat finish
  • Baked on Powder Coat finish
  • Extreme Weather resistant design
  • U.L. and C.S.A. Certified
spacer
spacer
spacer
Options
  • Under platform safety plate and solid platform
  • Carriage gate
  • Landing gates
  • Portable model
  • Solid Hand Rail
  • 12V DC battery backup
  • 18" extra wide toe plate
  • Remote call stations
  • Electric Interlocks
