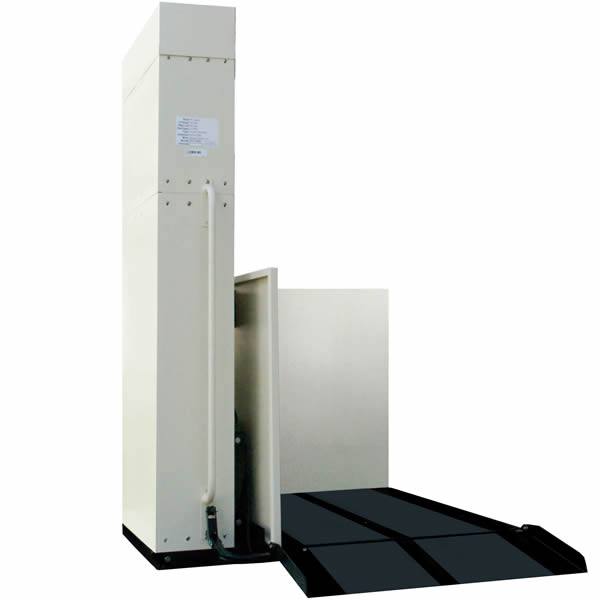

AmeriGlide Hercules II VPL - Residential

spacer
  • AmeriGlide Hercules II VPL - Residential
  • Lowered
  • Middle
  • Raised

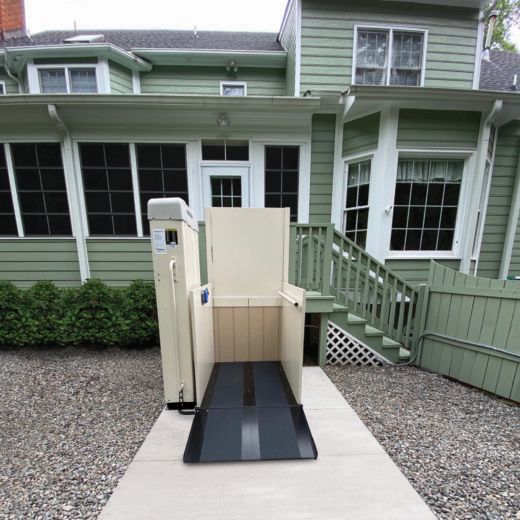

  • At Home
spacer
click an image to enlarge
Add To Cart
$5,289.00
$3,849.00
Plus Shipping
Product Review
(0)
(87.2)
Write a review!

The AmeriGlide Hercules II Residential Vertical Platform Lift is based off the top-notch Hercules II Commercial lift. It maintains the same safety standards and quality of construction, but has few features and a lower price. The Residential uses a screw drive system and comes with an automatic folding ramp and a solid platform. Numerous safety features are incorporated into its design as well.

Complies with ASME A18.1 (Section 5), CSA B44.1 / ASME 17.5 safety design standards.

spacer
Features
Lifting Capacity 600 lb
Standard Lift Height 53"
Maximum Lift Height 171"
Portable No
Arrives Assembled No
Drive System 53" - 125" Acme Screw Drive, 149" - 171" Ball Screw Drive
Optional Drive Systems None Available
Battery Powered Option Yes
Constant Pressure Platform Control Yes
Emergency Stop Platform Control Included
Alarm Button Optional Audible Alarm
Keyed Platform Control Optional
Call-Send Controls Optional Non-Keyed & Keyed Call-Send
Platform Type Solid with Non-Skid Coating
Platform Size 36" x 48" Platform (34" Usable Width)
Optional Platform Sizes 36" x 54", 36" x 60", 42" x 54" (40" Usable Width)
Platform Configuration Straight-Thru Access
Optional Platform Configurations Same Side Entry-Exit, Adjacent Access
Upper Landing Gate Optional
Upper Access Ramp None Available
Lower Access Ramp Automatic Folding, Optional Fixed
Grab Rail Included
Guard Panel 36", Optional 42"
Maximum Stops 3
Lift Speed (FPM) 10

Options Available

  • Lifting Height

    • 53" Max Lift Height, Acme Screw Drive
      $0.00
      No Image
      spacer
    • 77" Max Lift Height, Acme Screw Drive
      $730.00
      No Image
      spacer
    • 101" Max Lift Height, Acme Screw Drive
      $1,840.00
      No Image
      spacer
    • 125" Max Lift Height, Acme Screw Drive
      $3,450.00
      No Image
      spacer
    • 149" Max Lift Height, Ball Screw Drive
      $5,250.00
      No Image
      spacer
    • 171" Max Lift Height, Ball Screw Drive
      $6,630.00
      No Image
      spacer

  • Crating & Assembly

    • No Crating - Some assembly is required.
      $0.00
      No Image
      spacer
    • 36" x 48" or 36" x 54" Platform
      $0.00
      No Image
      spacer
    • 53" Unit Shipped Crated & Fully Assembled
      $461.05
      No Image
      spacer
    • 36" x 60" or 42" x 54" Platform - Requires Extra Large Crate
      $0.00
      No Image
      spacer
    • 53" Unit Shipped Crated & Fully Assembled
      $690.77
      No Image
      spacer

  • Tower Orientation

    • Tower On The Left
      $0.00
      Tower Left
      spacer
    • Tower On The Right
      $0.00
      Tower Right
      spacer

  • Power Source

    • AC Powered
      $0.00
      No Image
      spacer
    • DC Battery Powered - Battery provides 15-20 cycles during power outage. Batteries included.
      $1,000.05
      No Image
      spacer

  • Electronics

    • A standard electronics control board will work with a landing gate, one call/send only, and 36" side walls.
      $0.00
      No Image
      spacer
    • Standard Electronics Control Board
      $0.00
      No Image
      spacer
    • A commercial electronics control board allows operation with doors, gates, multiple call/send controls, and other devices.
      $0.00
      No Image
      spacer
    • 42" high side walls require a Commercial Electronics Control Board
      $0.00
      No Image
      spacer
    • Commercial Electronics Control Board
      $308.05
      No Image
      spacer
    • Ball Screw Drive Models Include A Commercial Electronics Control Board
      $0.00
      No Image
      spacer

  • Platform Type

    • 36" x 48" Straight Thru (34" Usable Width)
      $0.00
      No Image
      spacer
    • 36" x 54" Straight Thru (34" Usable Width)
      $154.05
      No Image
      spacer
    • 36" x 60" Straight Thru (34" Usable Width)
      $246.05
      No Image
      spacer
    • 42" x 54" Straight Thru (40" Usable Width)
      $492.05
      No Image
      spacer
    • 36" x 54" 90 Degree (34" Usable Width)
      $369.05
      No Image
      spacer
    • 36" x 60" 90 Degree (34" Usable Width)
      $491.05
      No Image
      spacer
    • 42" x 54" 90 Degree (40" Usable Width)
      $738.05
      No Image
      spacer

  • Platform Access

    • Straight Thru or 90 Degree
      $0.00
      No Image
      spacer
    • Same Side Entry & Exit - Lift height must be 101" or greater.
      $369.05
      No Image
      spacer

  • Platform Gate

    • Lifts 8' and over that are not in a hoistway require a platform gate or an interlock for a customer provided gate.
      $0.00
      No Image
      spacer
    • Platform gates require 42" high side walls (found below).
      $0.00
      No Image
      spacer
    • No Platform Gate
      $0.00
      No Image
      spacer
    • Left Swing 36" Wide Straight Thru Platform Gate with Interlock
      $614.05
      No Image
      spacer
    • Right Swing 36" Wide Straight Thru Platform Gate with Interlock
      $614.05
      No Image
      spacer
    • Left Swing 42" Wide Straight Thru Platform Gate with Interlock
      $861.05
      No Image
      spacer
    • Right Swing 42" Wide Straight Thru Platform Gate with Interlock
      $861.05
      No Image
      spacer
    • Left Swing 90 Degree Platform Gate with Interlock
      $985.05
      No Image
      spacer
    • Right Swing 90 Degree Platform Gate with Interlock
      $985.05
      No Image
      spacer

  • Platform Controls

    • Paddle Controls with Emergency Stop Button
      $0.00
      No Image
      spacer

  • Platform Control Options

    • Emergency Alarm & Lighted Button
      $209.05
      No Image
      spacer
    • Keylocks for Controls
      $34.05
      Keyed Control Upgrade Charge
      spacer

  • Platform Options

    • Solid Platform with Safety Pan
      $0.00
      No Image
      spacer
    • Inside Grab Bar
      $0.00
      No Image
      spacer
    • 42" high side walls are required for lifts 8' and taller.
      $0.00
      No Image
      spacer
    • 42" high side walls are required for ANY lift with a platform gate.
      $0.00
      No Image
      spacer
    • 42" high side walls require a Commercial Electronics Control Board
      $0.00
      No Image
      spacer
    • 36" High Side Walls
      $0.00
      No Image
      spacer
    • 42" High Side Walls
      $153.05
      No Image
      spacer

  • Ramp Type & Pit Switch

    • Automatic Ramp
      $0.00
      No Image
      spacer
    • Fixed Ramp
      $0.00
      No Image
      spacer
    • No Ramp with Pit Switch Option
      $123.05
      No Image
      spacer

  • Landing Controls

    • Call/Send Control Station (each)
      $119.00
      No Image
      spacer
    • Wireless Call/Send Control Stations (pair)
      $479.00
      No Image
      spacer
    • Keylocks for Controls (each)
      $34.00
      No Image
      spacer

  • Landing Gate

    • Landing gates below include an interlock and a call/send control built into the gate.
      $0.00
      No Image
      spacer
    • Left Swing 36" Wide Landing Gate with Interlock & Call/Send Control (each)
      $809.00
      No Image
      spacer
    • Right Swing 36" Wide Landing Gate with Interlock & Call/Send Control (each)
      $809.00
      No Image
      spacer
    • Left Swing 42" Wide Landing Gate with Interlock & Call/Send Control (each)
      $979.00
      No Image
      spacer
    • Right Swing 42" Wide Landing Gate with Interlock & Call/Send Control (each)
      $979.00
      No Image
      spacer
    • Keylocks for Controls (each)
      $34.00
      No Image
      spacer
    • Landing gates below include an interlock only.
      $0.00
      No Image
      spacer
    • Left Swing 36" Wide Landing Gate with Interlock Only (each)
      $739.00
      No Image
      spacer
    • Right Swing 36" Wide Landing Gate with Interlock Only (each)
      $739.00
      No Image
      spacer
    • Left Swing 42" Wide Landing Gate with Interlock Only (each)
      $909.00
      No Image
      spacer
    • Right Swing 42" Wide Landing Gate with Interlock Only (each)
      $909.00
      No Image
      spacer
    • Keylocks for Controls (each)
      $34.00
      No Image
      spacer

  • Fire Rated Doors

    • No Door
      $0.00
      No Image
      spacer
    • Fire-Rated Hoistway Door with EMI - Left (each)
      $2,079.00
      No Image
      spacer
    • Fire-Rated Hoistway Door with EMI - Right (each)
      $2,079.00
      No Image
      spacer
    • Fire-Rated Hoistway Door with Electric Strike - Left (each)
      $2,219.00
      No Image
      spacer
    • Fire-Rated Hoistway Door with Electric Strike - Right (each)
      $2,219.00
      No Image
      spacer

  • Interlocks

    • Surface mount EMI interlocks below are for a customer provided door or gate.
      $0.00
      No Image
      spacer
    • Left Swing Top Landing Door/Gate EMI Interlock (each)
      $409.00
      No Image
      spacer
    • Right Swing Top Landing Door/Gate EMI Interlock (each)
      $409.00
      No Image
      spacer
    • Flush mount electric strike interlocks below are for a customer provided door or gate.
      $0.00
      No Image
      spacer
    • Top Landing Electric Strike Interlock - Metal Frame (each)
      $409.00
      No Image
      spacer
    • Bottom Landing Electric Strike Interlock - Metal Frame (each)
      $409.00
      No Image
      spacer
    • Top Landing Electric Strike Interlock - Wood Frame (each)
      $409.00
      No Image
      spacer
    • Bottom Landing Electric Strike Interlock - Wood Frame (each)
      $409.00
      No Image
      spacer
    • Other Interlock Options
      $0.00
      No Image
      spacer
    • Keyed Dead Latch for Flush Mount Electric Strike Interlock (each)
      $139.00
      No Image
      spacer
    • Wiring For Interlock (per landing)
      $159.00
      No Image
      spacer

  • Accessories

    • Anchor Bolt Kit
      $0.00
      No Image
      spacer
    • Tower Braces
      $155.05
      No Image
      spacer
    • 3rd Stop Wiring Charge
      $492.05
      No Image
      spacer
    • Phone Jack
      $138.05
      No Image
      spacer
    • Emergency Light
      $137.05
      No Image
      spacer
    • Fascia Panel (per foot)
      $59.00
      No Image
      spacer
    • Automatic Door Opener - Requires Upgraded Electronics
      $2,349.00
      No Image
      spacer

  • Additional Delivery Services

    • Free Liftgate Service on 53" Units As Requested
      $0.00
      No Image
      spacer
spacer
What customers say about this product...
This product currently has no reviews. Would you like to leave one?
