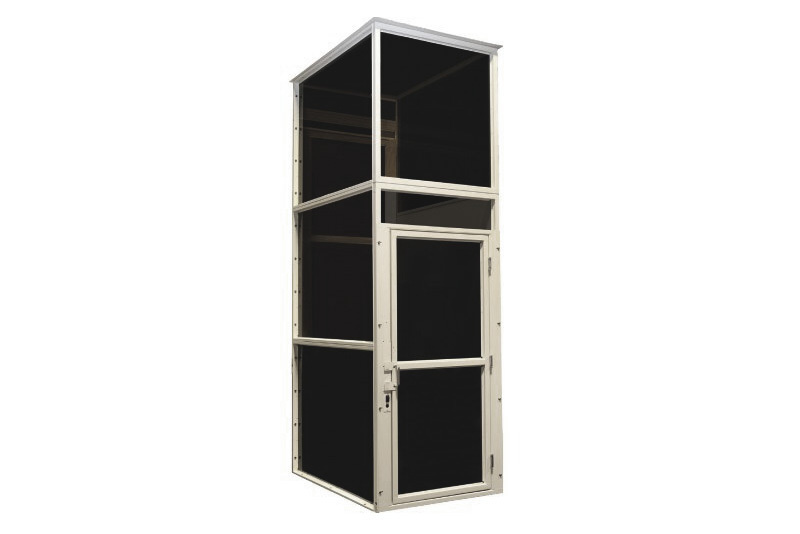

| $20,855.00 Plus Shipping Free Shipping The Highlander Enclosed VPL represents a new generation and evolution in VPLs. New technologies introduced in the Highlander Enclosed VPL make this VPL series more reliable, easier to use, easier to service, easier to troubleshoot, and the premiere market choice for platform lift solutions.
Innovation is at the heart of this next generation Vertical Platform Lift. The Highlander is an outstanding choice for vertical lifting solutions in the home or in light commercial settings where an elevator is impractical or unnecessary.
Features: - Guardian System: 4 bright, high-contrast
LED status lights give continual performance
feedback from the lift's control board.
Monitoring almost every critical system,
Guardian can provide immediate feedback and
guidance.
- SteadyDrive: Ensures
a smooth, quiet
and stable lift.
- ReadyUPS System: True
battery back-up option that
can deliver at least 5-cycles
in the event of power loss.
- Certifications:
ETL listed,
CSA B44.1/ASME A17.5,
Safety standard ASME A18.1,
Rated commercial and residential.
 | Lifting Capacity | 750 lb | | Standard Lift Height | 53" | | Maximum Lift Height | 171" | | Arrives Assembled | No | | Drive System | 1" diameter ACME Scrwe | | Battery Powered Option | Yes | | Constant Pressure Platform Control | Yes | | Emergency Stop Platform Control | Pit Switch Standard, Safety Underpan Option | | Alarm Button | Lighted Emergency Stop with Alarm Option | | Keyed Platform Control | Optional | | Call-Send Controls | One per Stop Included | | Optional Call-Send Controls | Keyed and/or Wireless | | Platform Type | Solid with Non-Skid Coating | | Platform Size | 36" x 60" x 42" (34" Usable) | | Optional Platform Sizes | 42"x 60" (40" Usable) | | Platform Configuration | Straight Thru Access | | Optional Platform Configurations | Same Side Entry-Exit, 90 Degree Adjacent Access | | Upper Access Ramp | None Available | | Lower Access Ramp | 36" or 42" Fixed Ramp | | Grab Rail | Optional | | Guard Panel | 42" | | Maximum Stops | 3 | | Lift Speed (FPM) | 10 | | Other Options | Fire-Rated Doors, Automatic Door Openers |
Included for Stratos Enclosed VPL Lower Landing Door $0.00 Upper Landing Gate $0.00 Pit Switch $0.00
Lifting Height 53" MAXIMUM LIFT HEIGHT $0.00  77" MAXIMUM LIFT HEIGHT $1,080.00 101" MAXIMUM LIFT HEIGHT $3,390.00 125" MAXIMUM LIFT HEIGHT $5,390.00 149" MAXIMUM LIFT HEIGHT $7,390.00 173" MAXIMUM LIFT HEIGHT $9,390.00
Enclosure Kit (Must Match VPL Lifting Height Above) ENCLOSURE KIT FOR 53" MAXIMUM LIFT HEIGHT $0.00 ENCLOSURE KIT FOR 77" MAXIMUM LIFT HEIGHT $830.00 ENCLOSURE KIT FOR 101" MAXIMUM LIFT HEIGHT $1,661.00 ENCLOSURE KIT FOR 125" MAXIMUM LIFT HEIGHT $2,500.00 ENCLOSURE KIT FOR 149" MAXIMUM LIFT HEIGHT $3,330.00 ENCLOSURE KIT FOR 171" MAXIMUM LIFT HEIGHT $4,161.00
Enclosure Width Enclosure Material Steel Panels $0.00 Acrylic Panels $1,500.00
Residential/Commercial Power Source AC POWERED $0.00 READYUPS - BATTERY BACKUP - STD.. 2, 12v @ 12ah $1,070.00 READYUPS - BATTERY BACKUP - PLUS.. 4, 12v @ 12ah $1,224.00

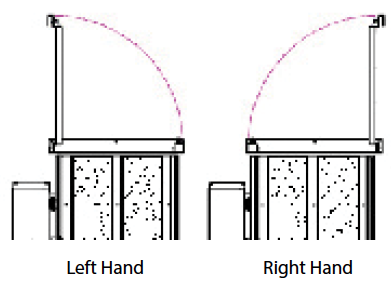

Use Options Tower Orientation TOWER ON THE LEFT $0.00 TOWER ON THE RIGHT $0.00
Number of Stops Platform Type (Width, Depth, Height) Select From Options Below $0.00 Straight Through (180 degrees) $0.00 36 X 60 X 42 STRAIGHT THROUGH PLATFORM $839.00 42 X 60 X 42 STRAIGHT THROUGH PLATFORM $1,047.00 90 Degree $0.00 36 X 60 X 42 90 Degree LEFT PLATFORM $1,247.00 36 X 60 X 42 90 Degree RIGHT PLATFORM $1,247.00 42 X 60 X 42 90 Degree LEFT PLATFORM $1,454.00 42 X 60 X 42 90 Degree RIGHT PLATFORM $1,454.00 Same Side Entry/Exit (0 degrees) $0.00 36 X 60 X 42 SAME SIDE ENTRY EXIT PLATFORM $1,247.00 42 X 60 X 42 SAME SIDE ENTRY EXIT PLATFORM $1,454.00
Platform Controls Platform Options Handrail (for Residential VPL) No Handrail (for Residential VPL) $0.00 54" Handrail (for Residential VPL) $154.00 60" Handrail (for Residential VPL) $193.00
Ramp Type Landing Gate Call/Send Fire Rated Doors 36" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-LH $3,915.00  36" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-RH $3,915.00 42" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-LH $4,531.00 42" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-RH $4,531.00
Automatic Opener Interlocks INTERLOCKS BELOW ARE FOR A CUSTOMER PROVIDED DOOR OR GATE. $0.00 EMI INTERLOCK FOR DOOR/GATE PROVIDED BY OTHERS - LH $585.00 EMI INTERLOCK FOR DOOR/GATE PROVIDED BY OTHERS - RH $585.00
General Enclosure Options 3-Sided Enclosure (required for non-Enter/Exit Same Side) $585.00 Enter/Exit Same-Side Upgrade $585.00 90 Degree Upper Landing Upgrade $1,154.00 Upper 6'8" (20.7 m) Enclosure Door Upgrade LH $970.00 Upper 6'8" (20.7 m) Enclosure Door Upgrade RH $970.00 Middle 6'8" (20.7 m) Enclosure Door LH $2,393.00 Middle 6'8" (20.7 m) Enclosure Door RH $2,393.00 42" Wide Upper 6'8" Enclosure Door Upgrade $1,539.00 Acrylic Door Panel (Each) $393.00 Platform Safety Pan $585.00 Acrylic Roof (Requires 6'8" Enclosure) $970.00 Power Ventilation System (for Enclosure WITH Roof) $2,870.00
Call Send Options CALL/SEND STATION IN-FRAME CONTROL BOX - TOP/BOTTOM (EACH) $216.00 KEYED CALL/SEND IN-FRAME STATION CONTROL BOX - TOP/BOTTOM (EACH) $300.00 WIRELESS CALL/SEND CONTROLS FOR 1 LANDING $393.00 WIRELESS CALL/SEND CONTROLS FOR 2 LANDINGS $770.00 WIRELESS CALL/SEND CONTROLS FOR 3 LANDINGS $1,154.00 In-Frame Call Station (EACH) $216.00
Additional Options PLATFORM SAFETY PAN $585.00 TOWER BRACE WITH BRACKET $300.00 PHONE JACK $262.00 EMERGENCY TOWER LIGHT, BACK-UP $262.00 EXTRA KEYS (EACH) $47.00 CUSTOM COLOR (ALLOW 6-8 WEEKS - Call for color options and price) $0.00 FLOAT LEVEL SWITCH $262.00 lighted E-Stop w/Audible Alarm (for Residential Units) $193.00
State Required Inspections / Permits Delivery Options FLAT BED AND FORKLIFT DELIVERY $539.00 Residential Delivery or High Cost Delivery Zone $145.00 Pickup at Freight Terminal $0.00
