Harmar Pinnacle Premium Stair Lift

spacer

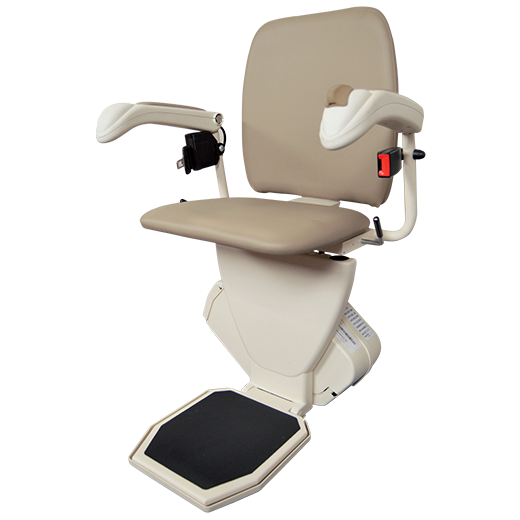

  • Harmar Pinnacle Premium Stair Lift

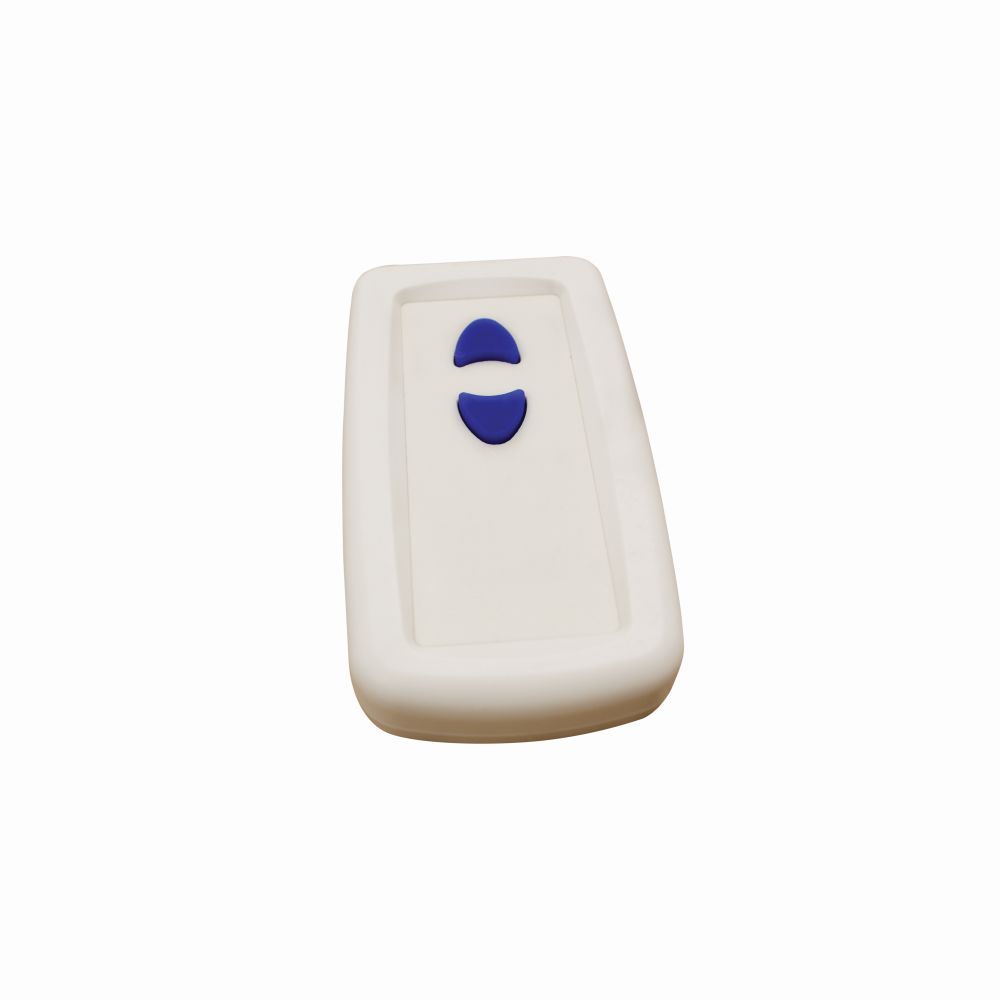

  • Remote
spacer
click an image to enlarge
Add To Cart
$5,295.00
$4,195.00
Plus Shipping
Product Review
(0)
(0)
The Pinnacle Premiun has earned its name and reputation for standing above the rest. Design, Form and Function come together to make Pinnacle the most reliable, durable, and sought after stair lift on the market.

What makes Pinnacle different? It's what you don't see, the patented Helical Worm Gear and reinforced Nylon Polymer Gear Rack. This innovative drive system eliminates maintenance, provides you savings with lower energy bills, and delivers a smooth, stable ride you can rely on.

Although exceptionally compact, Pinnacle boasts a 350 lb capacity with a wide, comfortable seat that swivels at the top landing to aid in safely entering and exiting the lift. Safety sensors prevent the lift from running if the seat is not in the proper position or if something is blocking the stairway or track.
* CT, MI and WA residents need to check their local building codes to ensure compliance.
spacer
Features
Drive TypePolymer Worm / Worm-Rack
Battery PoweredYes
Self InstallableYes
Basic Installation IncludedNo
Standard Capacity350 lb
Max Track Length, Standard15.5'
Max Track Length, Optional70'
Track MaterialAliuminum
Seat Width20"
Seat Depth15.5"
Swivel SeatYes
Flip-Up SeatYes
Flip-Up ArmrestsYes
Constant Pressure ControlsYes
Footrest Safety SensorYes
Unit Footprint, In Use22.5"
Unit Footprint, Folded11"
Track Footprint7"
Track Width4.875"
Call Stations IncludedWireless
Rail Angle, Min32°
Rail Angle, Max52°
Digital Diagnostics DisplayNo
Power Cord Lengths10' with the charger box in the middle
Key LockYes

Options Available

  • Track Lengths Selection: 15' (180") is Standard *

    • * Actual track is 7" longer. A 7" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.
      $0.00
      option_name
      spacer
    • 15' (180") of Track
      $0.00
      No Image
      spacer
    • Length in inches if Shorter than 180" (allow +7" for entry/exit)
      $0.00
      No Image
      spacer
  • Additional Track (Maximum 70' Including the 15' Standard Track)

    • Up to 3' of Additional Track
      $215.00
      No Image
      spacer
    • Up to 5' of Additional Track
      $358.00
      No Image
      spacer
    • Up to 7'9" (93") of Additional Track
      $500.00
      No Image
      spacer
  • Additional Brackets (comes with standard)

    • Standard Brackets
      $29.00
      No Image
      spacer
    • Tall Brackets
      $29.00
      No Image
      spacer
  • Options

    • Seat Belt
      $0.00
      No Image
      spacer
    • Track Cut to Custom Length (Required for any track cut)
      $136.00
      No Image
      spacer
    • Key Lock on Chasis
      $136.00
      No Image
      spacer
  • Call Stations

    • Top & Bottom Call-Send Stations
      $0.00
      No Image
      spacer
  • Orientation (looking UP the staircase)

    • The stair lift will be on the left
      $0.00
      No Image
      spacer
    • The stair lift will be on the right
      $0.00
      No Image
      spacer
  • Installation

    • NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout
      $0.00
      No Image
      spacer
    • Self Installation
      $0.00
      No Image
      spacer
    • Nationwide Installation
      $599.00
      No Image
      spacer
    • Nationwide Installation and Measurement Service
      $749.00
      No Image
      spacer
    • Double Stair Lift Installation Service - Per Stair Lift
      $437.50
      No Image
      spacer
    • Stair Lift Removal and Disposal
      $499.00
      No Image
      spacer
  • Installation Special Cases

    • Installation On Concrete, Steel, or Tile Stairs
      $300.00
      No Image
      spacer
    • Installation In Remote or Limited Access Location
      $285.00
      No Image
      spacer
  • Measurements

    • Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.
      $0.00
      No Image
      spacer
    • 1. Overall length
      $0.00
      No Image
      spacer
    • 2. Top stair to bottom stair
      $0.00
      No Image
      spacer
    • 3. Staircase width
      $0.00
      No Image
      spacer
    • 4. Bottom clearance
      $0.00
      No Image
      spacer
    • 5. Rise of one step
      $0.00
      No Image
      spacer
    • 6. Tread of one step
      $0.00
      No Image
      spacer
    • 7. Diagonal
      $0.00
      No Image
      spacer
    • 8. Door at the top
      $0.00
      No Image
      spacer
    • Need help measuring? Please see our "How to Measure" page.
      $0.00
      No Image
      spacer
spacer
What customers say about this product...
This product currently has no reviews. Would you like to leave one?
