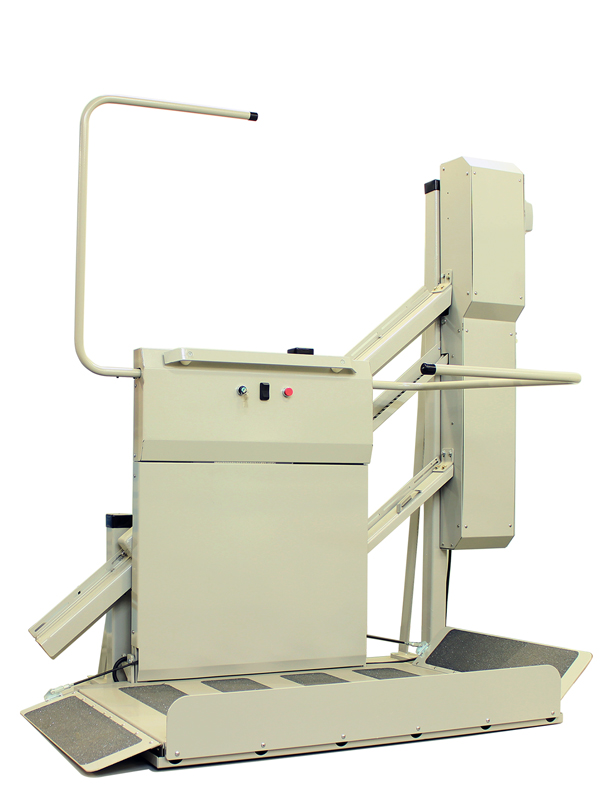

Titan Incline Platform Lift - Commercial

spacer
  • Titan Incline Platform Lift - Commercial

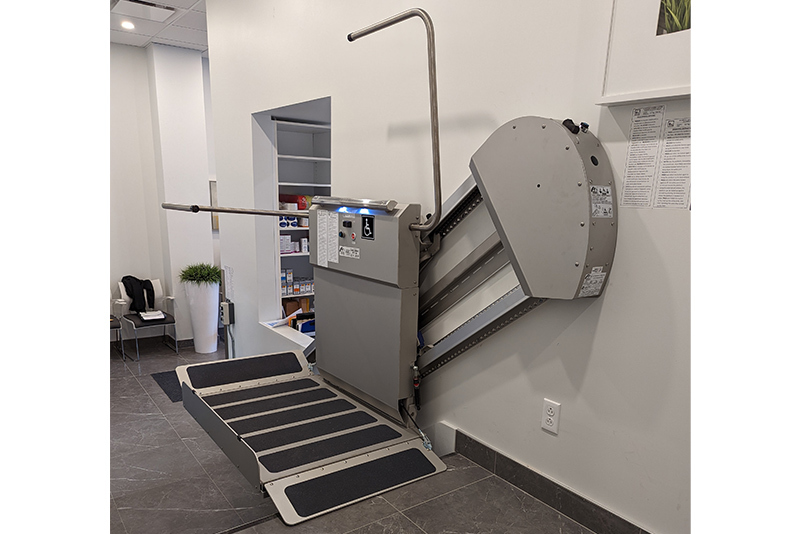

  • Ready for access

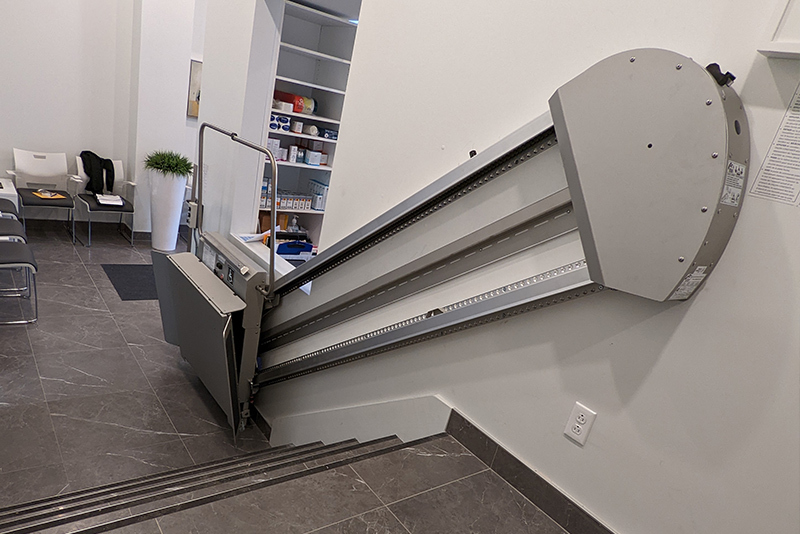

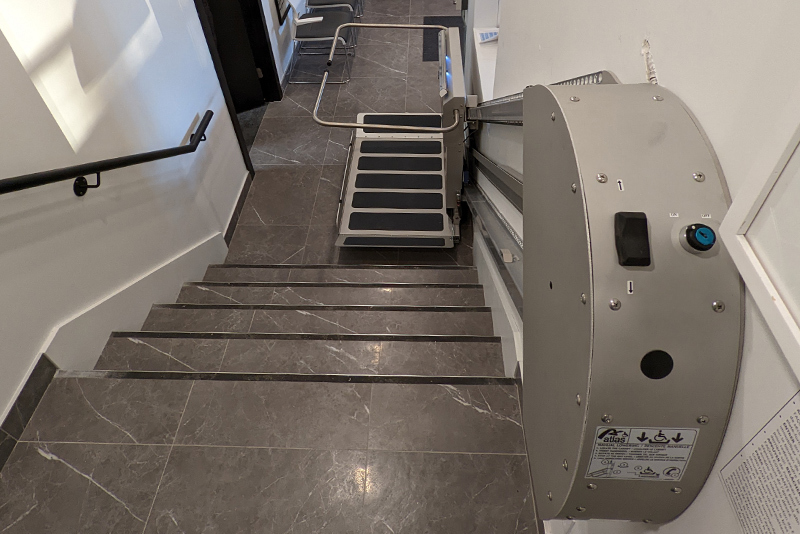

  • View down the stairs

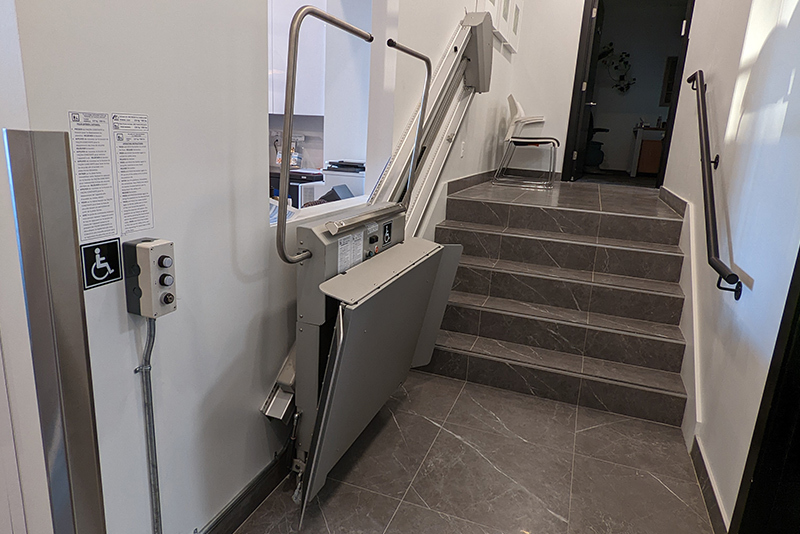

  • Not in use, folded close to the wall

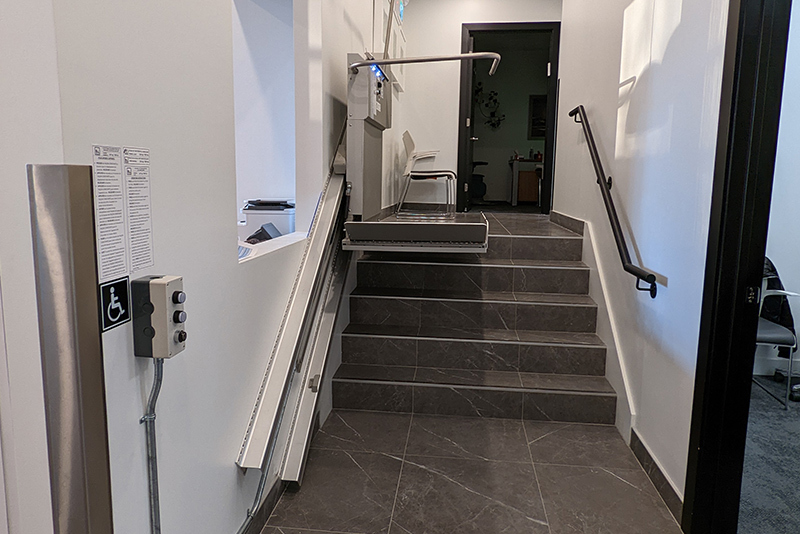

  • Lift arrived at top of stairs
  • Close up view of unit folded until needed
spacer
click an image to enlarge
Warranty
Warranty
Add To Cart
$16,995.00
$18,999.00
Plus Shipping
Product Review
(0)
(0)

The Titan Incline Platform Lift - Commercial is the ideal solution for making stairs in a commercial building wheelchair accessible. This particular model offers a lifting capacity of 550 pounds (one person in a wheelchair) and includes installation. While built to fulfill code requirements in much of the United States, additional options can be configured to fulfill requirements for your specific locale. To start the process, call our Commercial Incline Platform Lift experts and we will be happy to provide advice and the most ideal solution for your application.

Base pricing includes track, which is cut to the length needed for your staircase, as well as a "straight through" entry/exit platform. Custom platform sizes are available and can be built to your requirements. Safety features and additional options include: Call/send controls with a key lock (post, surface, or flush mount), fold down seat, and handsfree phone.

Give us a call to learn how we can help make your commercial building wheelchair accessible with the Titan Incline Platform Lift.

NOTE: Maximum travel is 200 inches

spacer
Features
Drive TypeSprocket and Chain Drive
Battery PoweredYes
Self InstallableNo
Basic Installation IncludedYes
Standard Capacity550 lb
Max Track Length, Standard16'
Max Track Length, Optional16'
Track MaterialAluminum
Swivel SeatNo
Flip-Up SeatYes
Flip-Up ArmrestsNo
Constant Pressure ControlsYes
Footrest Safety SensorNo
Track Footprint13"
Call Stations IncludedUpper Landing on Drive Column, Bottom has Options
Rail Angle, Min25°
Rail Angle, Max50°
Digital Diagnostics DisplayNo
Key LockYes

Options Available

  • Information

    • Please Call For More Information
      $0.00
      No Image
      spacer
  • Cab Entrance/Exit

    • Straight Through
      $0.00
      Straight Through
      spacer
    • 90 Degree
      $1,555.59
      AC105-90 Degree Entrance
      spacer
  • Platform

    • 30" Wide x 40" Long (requires at least a 36" wide stair case)
      $0.00
      No Image
      spacer
    • 30" Wide x 44" Long (requires at least a 36" wide stair case)
      $0.00
      No Image
      spacer
    • Custom Size (28" to 32" Wide x 38" to 48" Long)
      $2,072.73
      No Image
      spacer

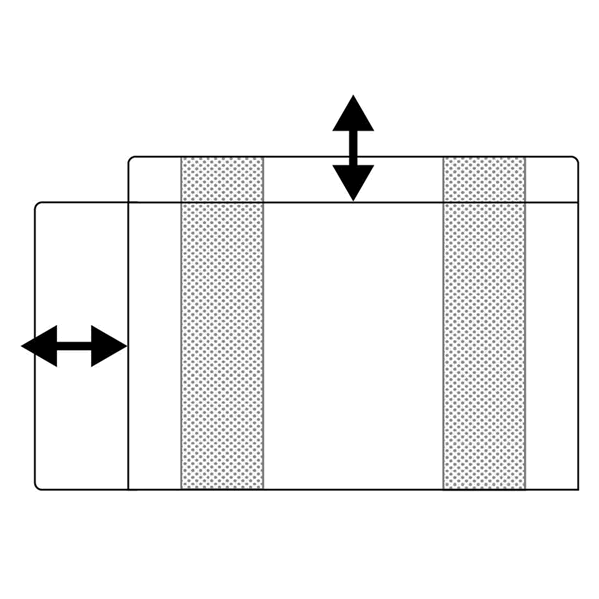

  • Custom Platform Dimensions

    • Custom Platform Width (28" to 32")
      $0.00
      No Image
      spacer
    • Custom Platform Length (38" to 48")
      $0.00
      No Image
      spacer
  • Orientation (looking UP the staircase)

    • Rail On The Left
      $0.00
      No Image
      spacer
    • Rail On The Right
      $0.00
      No Image
      spacer
  • Track Length

    • Total Track Length Required (feet and inches or decimal feet)
      $0.00
      No Image
      spacer
  • Mounting Method

    • Wall Mounted (Commercial Installation Requires Wood Studs)
      $0.00
      No Image
      spacer
    • Non-Wall Mounted (Includes Required Mounting Posts)
      $1,795.00
      No Image
      spacer
  • Bottom Landing Call w/Key Lock

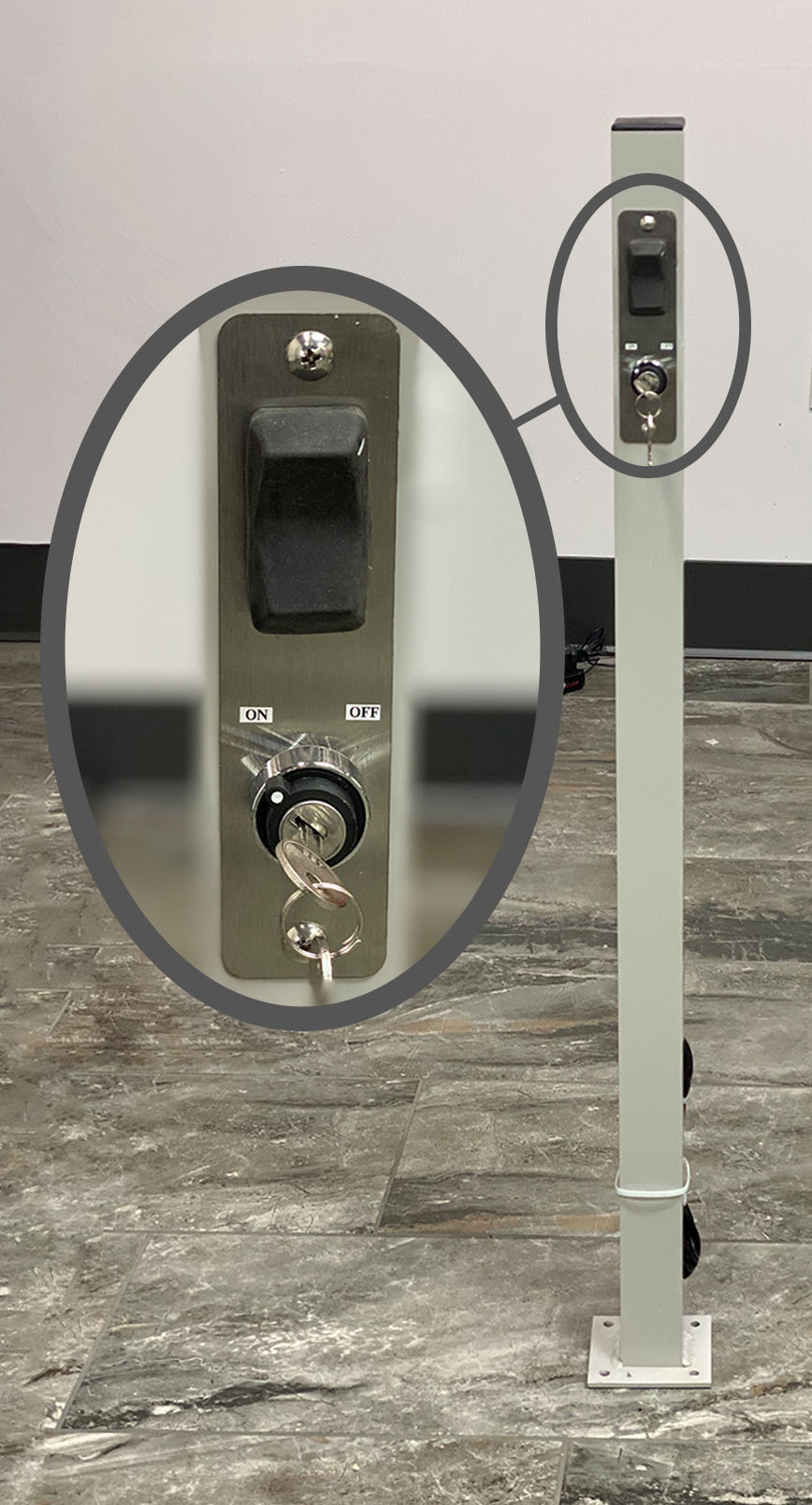

    • Post Mount
      $0.00
      Hercules DC 750 Call/Send Post
      spacer

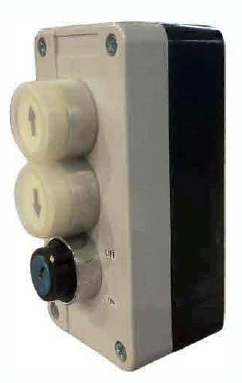

    • Surface Mount
      $0.00
      Hercules DC 750 Surface Mount Call/Send
      spacer

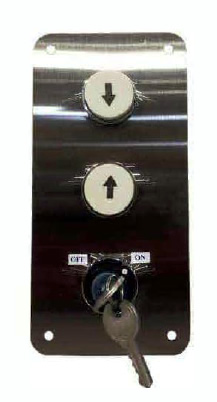

    • Flush Mount
      $0.00
      Hercules DC 750 Flush Mount Call/Send
      spacer
  • Options

    • Fold Down Seat
      $929.88
      No Image
      spacer
    • Handsfree Phone
      $450.00
      No Image
      spacer
    • Custom Color (Call for Color Availability)
      $1,500.00
      No Image
      spacer
  • Installation (Customer must pull required permits.)

    • Note: Commercial Wall Mounting REQUIRES Wood Studs
      $0.00
      No Image
      spacer
    • Install on Concrete, Steel, or Tile Stair Treads
      $300.00
      No Image
      spacer
    • Install on Concrete or Concrete Block Walls
      $300.00
      No Image
      spacer
