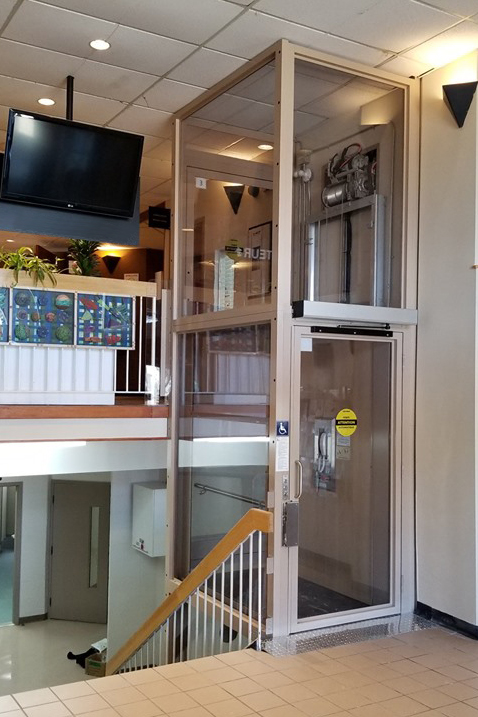

AmeriGlide Hercules 750 Commercial Enclosed Vertical Platform Lift

spacer
  • AmeriGlide Hercules 750 Commercial Enclosed Vertical Platform Lift

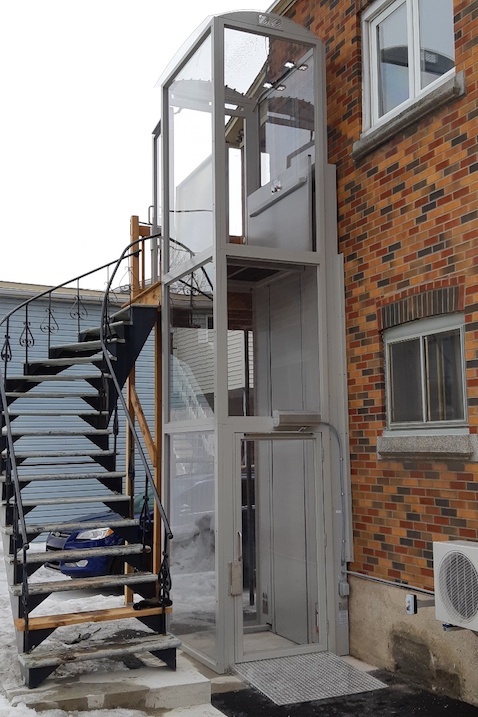

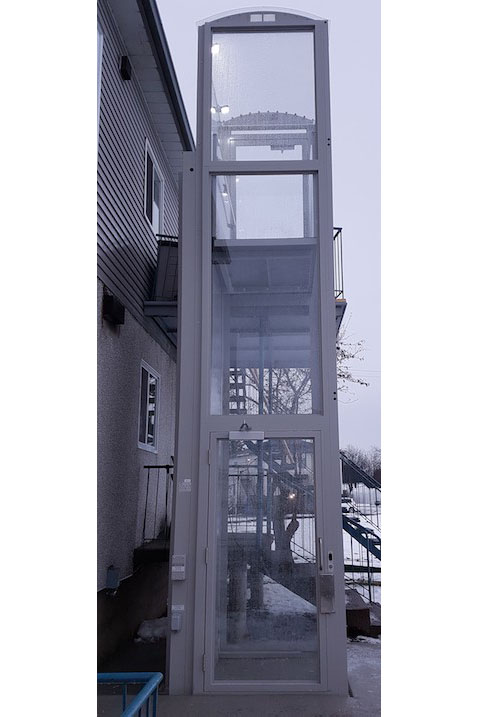

  • Shown with Acrylic Enclosure Outdoors

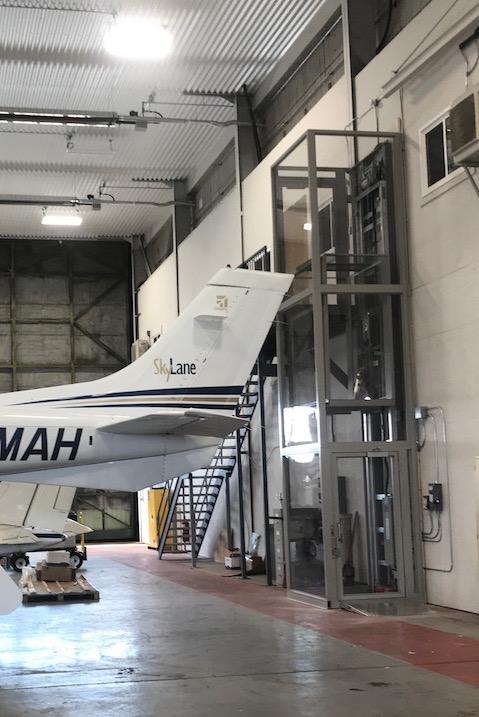

  • Shown with Acrylic Enclosure Inside a Hangar
  • Shown with Acrylic Enclosure Outdoors - Side View
spacer
click an image to enlarge
Warranty
Warranty
Add To Cart
$14,499.00
Free Shipping
Product Review
(0)
(0)

The AmeriGlide Hercules II DC 750 Commercial Enclosed Vertical Lift is the ideal vertical platform lift for outdoor or indoor commercial applications. Perfect for businesses, municipal buildings, colleges, churches, theaters, and more. The non-skid epoxy coated floor and galvanized steel panel is weather resistant, even in the harshest conditions. The enclosure provided with this vertical platform lift makes it unnecessary to have a hoistway built where the lift will be installed.

A 750 pound weight capacity comes standard on the Hercules II DC, but a 1000-pound capacity is available as an option. Great for lifting large wheelchairs and two people at one time.

The acme screw direct drive makes the Hercules II DC the smoothest and quietest lift on the market. Being battery powered, the lift and its automatic self-lowering folding ramp (standard) will even work during a power outage.

Safety features include under platform obstruction detection, emergency stop switch, anti-skid floor surface, emergency alarm, and much more.

To learn more about the Hercules II DC 750 Commercial Vertical Lift, call and speak with our experienced VPL experts today.

spacer
Features
Lifting Capacity750 lb
Standard Lift Height64"
Maximum Lift Height160"
Arrives AssembledNo
Drive SystemDirect Drive Acme Screw
Battery Powered OptionYes
Constant Pressure Platform ControlYes
Alarm ButtonIncluded
Platform TypeNon-skid (Epoxy crushed and recycled tires)
Platform SizeW 34"-36" x L 54"-60"
Optional Platform SizesCustom: W (31" to 42") x L (46" to 66")
Platform ConfigurationStraight-Thru Access
Optional Platform ConfigurationsSame Side Entry-Exit, 90 Degree Adjacent Access
Grab RailIncluded
Maximum Stops3
Lift Speed (FPM)9

Options Available

  • Hercules 750 Commercial Enclosed Includes

    • 2252 Keys
      $0.00
      No Image
      spacer
    • Rocker Switch or NEMA 3R
      $0.00
      No Image
      spacer
    • Manually Resettable Audible Platform Alarm
      $0.00
      No Image
      spacer
    • Pit Switch
      $0.00
      No Image
      spacer
    • Grab Bar
      $0.00
      No Image
      spacer
    • Platform Lights
      $0.00
      No Image
      spacer
    • Main Disconnect
      $0.00
      No Image
      spacer
    • AC Power Cord and Interlock Wiring Kit (for Interlocks Included with Doors, Gates)
      $0.00
      No Image
      spacer
    • Wing Walls
      $0.00
      No Image
      spacer
  • Power Source

    • DC Battery Powered (2 x U1 Batteries Included)
      $0.00
      No Image
      spacer
    • AC Powered
      $0.00
      No Image
      spacer
  • Number of Stops

    • Two Stop
      $0.00
      No Image
      spacer
    • Three Stop
      $1,995.00
      No Image
      spacer
  • Lifting Height

    • 44" Maximum Lift Height (tower 72")
      $1,500.00
      No Image
      spacer
    • 64" Maximum Lift Height (tower 92")
      $0.00
      No Image
      spacer
    • 78" Maximum Lift Height (tower 108")
      $3,999.00
      No Image
      spacer
    • 98" Maximum Lift Height (tower 126")
      $4,999.00
      No Image
      spacer
    • 115" Maximum Lift Height (tower 158")
      $8,999.00
      No Image
      spacer
    • 130" Maximum Lift Heigth (tower 158")
      $10,999.00
      No Image
      spacer
    • 160" Maximum Lift Height (tower 190")
      $12,999.00
      No Image
      spacer
  • Select Tower Bracket Type

    • For Tower Heights: 44", 64", 78", 98"
      $0.00
      No Image
      spacer
    • No Bracket Desired (for 44", 64", 78", 98")
      $0.00
      No Image
      spacer
    • Triangle (for 44", 64", 78", 98")
      $390.91
      No Image
      spacer
    • Ground Bracket (for 44", 64", 78", 98")
      $390.91
      No Image
      spacer
    • For Tower Heights 115", 130", 160" (bracket included in unit price)
      $0.00
      No Image
      spacer
    • Triangle Bracket (for 115",130", 160")
      $0.00
      No Image
      spacer
    • Ground Bracket (for 115",130", 160")
      $0.00
      No Image
      spacer
  • Color of Unit

    • Grey (standard)
      $0.00
      No Image
      spacer
    • Custom Color (Call to Verify Color Available)
      $3,500.00
      No Image
      spacer
    • Stainless Steel
      $8,995.00
      No Image
      spacer
  • Fascia Panels

    • No Fascia Panels
      $0.00
      No Image
      spacer
    • Fascia Panels can be any height up to 98". Specify height in decimal feet below.
      $0.00
      No Image
      spacer
    • Galvanized Steel Fascia Panels (per foot)
      $60.00
      No Image
      spacer
    • 3/16" Acrylic Lexan w/Aluminum Frame (per foot)
      $54.00
      No Image
      spacer
  • Platform / Tower Configuration

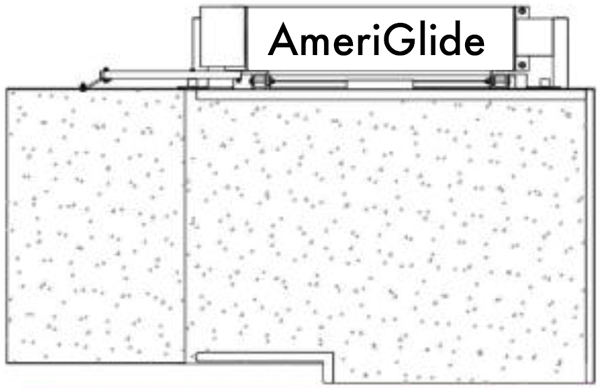

    • Straight Thru Left Hand
      $0.00
      Straight Thru Left Hand
      spacer

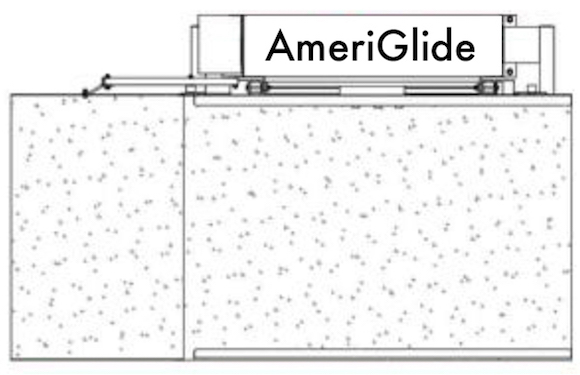

    • 90 Degree Left Hand
      $999.00
      90 Degree Left Hand
      spacer

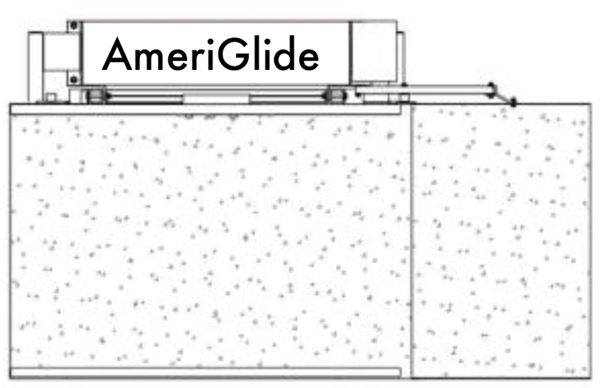

    • Straight Thru Right Hand
      $0.00
      Straight Thru Right Hand
      spacer
    • 90 Degree Right Hand
      $999.00
      90 Degree Right Hand
      spacer
    • Same Side Entry/Exit
      $999.00
      No Image
      spacer
  • Guard Panels

    • 42" High Steel Guard Panels (Standard)
      $0.00
      No Image
      spacer
  • Platform Dimensions (Dimensions are All Clear)

    • 34" x 54"
      $0.00
      No Image
      spacer
    • 34" x 60"
      $0.00
      No Image
      spacer
    • 36" x 54"
      $0.00
      No Image
      spacer
    • 36" x 60"
      $1,499.00
      No Image
      spacer
    • Custom: W=30" to 42" by L=46" to 66"
      $1,499.00
      No Image
      spacer
  • Platform Controls

    • 40mm (1.57") Diameter Buttons on Platform
      $400.00
      No Image
      spacer
    • 60mm (2.36") Diameter Buttons on Platform
      $400.00
      No Image
      spacer
    • Joystick
      $209.10
      No Image
      spacer
    • Additional Platform Controls (On Opposite Side)
      $699.00
      No Image
      spacer
    • Lighted Buttons for COP
      $399.00
      No Image
      spacer
  • Enclosure Options

    • Polycarbonate
      $0.00
      No Image
      spacer
    • Tinted Polycarbonate - Per Inch of Height
      $18.91
      No Image
      spacer
    • Polycarbonate Rigid Roof & Ventilation System
      $2,995.00
      No Image
      spacer
    • * Glass Instead of Polycarbonate - Per Inch of Height
      $167.00
      No Image
      spacer
    • * Glass will increase freight charges. Please call for correct freight charges if glass is selected.
      $0.00
      No Image
      spacer
  • Lower Landing Orientation

    • Note: If Selecting a Platform Gate It Must Be Hinged Same Side as Tower
      $0.00
      No Image
      spacer
    • Open on Left
      $0.00
      Open on Left
      spacer
    • Open on Right
      $0.00
      Open on Right
      spacer
  • Lower Landing Entrance (Interlock Included with Door/Gate)

    • A Call/Send Control must be ordered for every Door or Gate Ordered
      $0.00
      Open on Right
      spacer

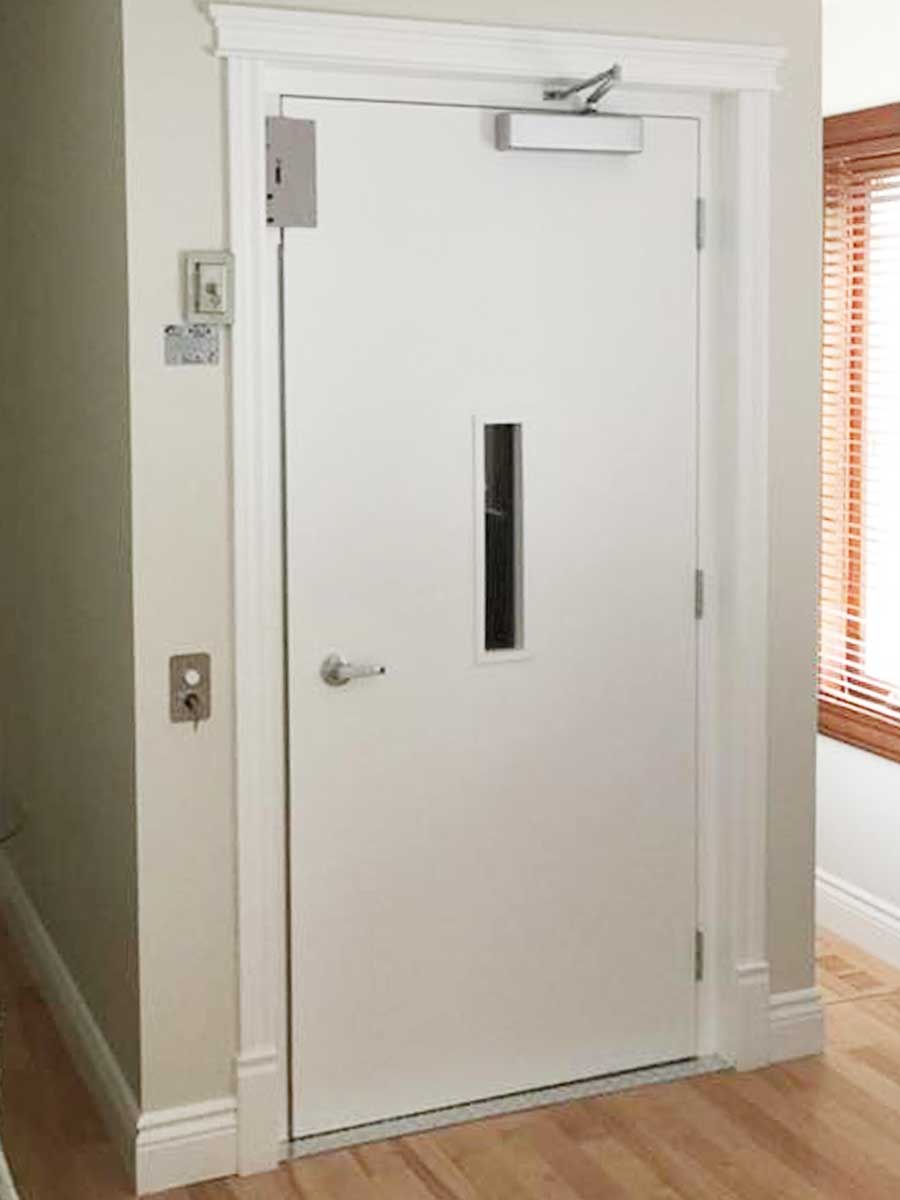

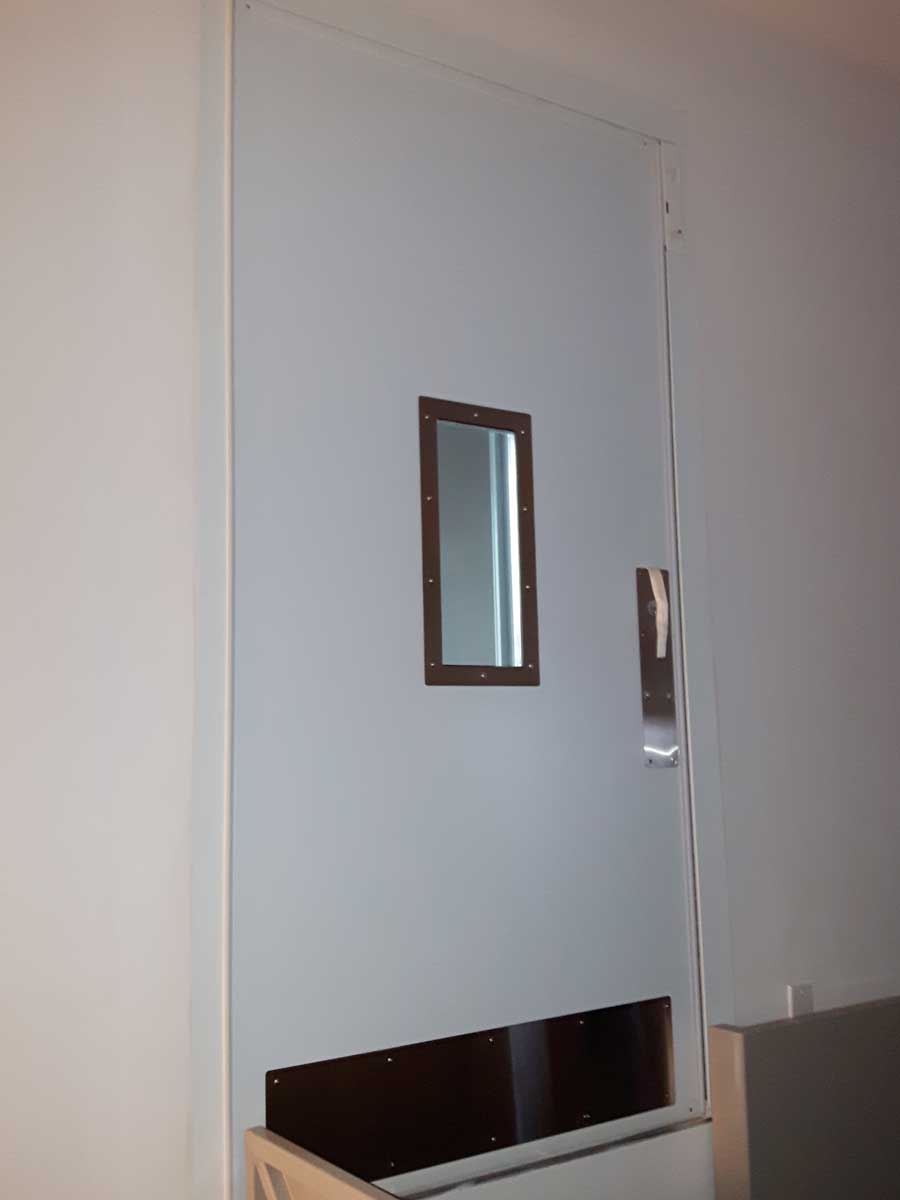

    • Door 80" H x 36" W Interior
      $1,350.00
      Hercules Door 36" x 80" Interior
      spacer
    • Door 80" H x 36" W Exterior
      $2,399.00
      Hercules Door 36" x 80" Exterior
      spacer

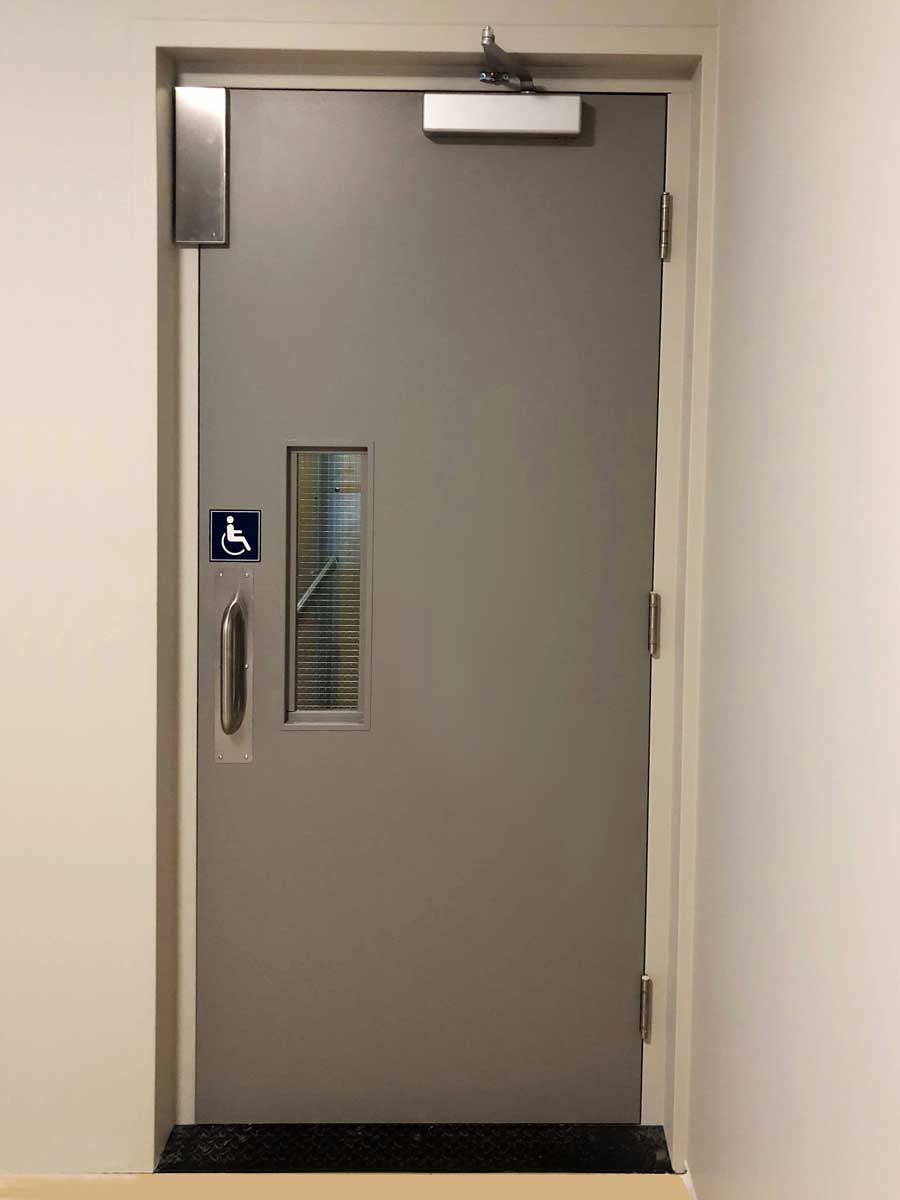

    • Door 80" H x 36" W Fire Rated
      $2,250.00
      Hercules Door 36" x 80" Fire Rated
      spacer

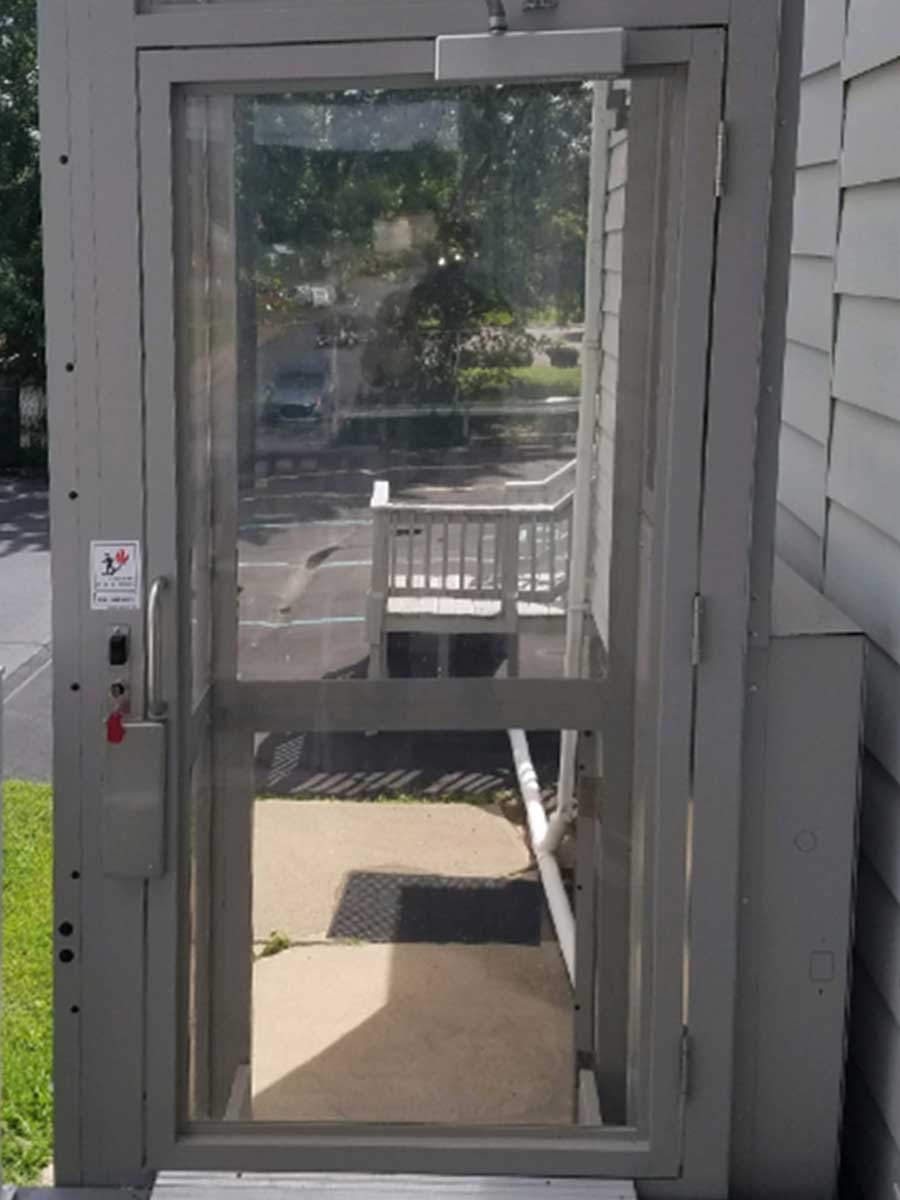

    • Door 80" H x 36" W Exterior Polycarbonate
      $2,399.00
      Hercules Door 36" x 80" Exterior Polycarbonate
      spacer
    • Door 80" H x 42" W Interior
      $2,295.00
      Hercules Door 42" x 80" Interior
      spacer
    • Door 80" H x 42" W Exterior
      $3,250.00
      Hercules Door 42" x 80" Exterior
      spacer
    • Door 80" H x 42" W Fire Rated
      $2,999.00
      Hercules Door 42" x 80" Fire Rated
      spacer
    • Door 80" H x 42" W Exterior Polycarbonate
      $3,250.00
      Hercules Door 42" x 80" Exterior Polycarbonite
      spacer
    • No Gate or Door (For Gates/Doors Provided by Others)
      $0.00
      No Image
      spacer
  • Mid Landing Orientation (3 Stop Units Only)

    • Open on Left
      $0.00
      No Image
      spacer
    • Open on Right
      $0.00
      No Image
      spacer
  • Mid Landing Entrance (3 Stop Units Only, Interlock Included)

    • A Call/Send Control must be ordered for every Door or Gate Ordered
      $0.00
      No Image
      spacer
    • Door 80" H x 36" W Interior
      $1,350.00
      Hercules Door 36" x 80" Interior
      spacer
    • Door 80" H x 36" W Exterior
      $2,399.00
      Hercules Door 36" x 80" Exterior
      spacer
    • Door 80" H x 36" W Fire Rated
      $2,250.00
      Hercules Door 36" x 80" Fire Rated
      spacer
    • Door 80" H x 36" W Exterior Polycarbonate
      $2,399.00
      Hercules Door 36" x 80" Exterior Polycarbonate
      spacer
    • Door 80" H x 42" W Interior
      $2,295.00
      Hercules Door 42" x 80" Interior
      spacer
    • Door 80" H x 42" W Exterior
      $3,250.00
      Hercules Door 42" x 80" Exterior
      spacer
    • Door 80" H x 42" W Fire Rated
      $2,999.00
      Hercules Door 42" x 80" Fire Rated
      spacer
    • Door 80" H x 42" W Exterior Polycarbonate
      $3,250.00
      Hercules Door 42" x 80" Exterior Polycarbonite
      spacer
    • Interlock is included with any Door Ordered
      $0.00
      Hercules Door 42" x 80" Exterior Polycarbonite
      spacer
    • No Door (For Doors Provided by Others)
      $0.00
      No Image
      spacer
  • Upper Landing Orientation

    • Open on Left
      $0.00
      Open on Left
      spacer
    • Open on Right
      $0.00
      Open on Right
      spacer
  • Upper Landing Entrance (Interlock Included with Door/Gate)

    • A Call/Send Control must be ordered for every Door or Gate Ordered
      $0.00
      Open on Right
      spacer
    • 34" or 36" W x 42" H Upper Landing Gate (includes Call/Send in Frame)
      $1,199.00
      No Image
      spacer
    • 38" to 42" W x 42 H Upper Landing Gate (includes Call/Send in Frame)
      $1,695.00
      No Image
      spacer
    • Door 80" H x 36" W Interior
      $1,350.00
      Hercules Door 36" x 80" Interior
      spacer
    • Door 80" H x 36" W Exterior
      $2,399.00
      Hercules Door 36" x 80" Exterior
      spacer
    • Door 80" H x 36" W Fire Rated
      $2,250.00
      Hercules Door 36" x 80" Fire Rated
      spacer
    • Door 80" H x 36" W Exterior Polycarbonate
      $2,399.00
      Hercules Door 36" x 80" Exterior Polycarbonate
      spacer
    • Door 80" H x 42" W Interior
      $2,295.00
      Hercules Door 42" x 80" Interior
      spacer
    • Door 80" H x 42" W Exterior
      $3,250.00
      Hercules Door 42" x 80" Exterior
      spacer
    • Door 80" H x 42" W Fire Rated
      $2,999.00
      Hercules Door 42" x 80" Fire Rated
      spacer
    • Door 80" H x 42" W Exterior Polycarbonate
      $3,250.00
      Hercules Door 42" x 80" Exterior Polycarbonite
      spacer
    • No Gate or Door (For Gates/Doors Provided by Others)
      $0.00
      No Image
      spacer
  • Polycarbonate Gate Option

    • If a gate is selected for Upper Landing, this option allows you to switch to a Polycarbonate panel
      $0.00
      No Image
      spacer
    • Polycarbonate Panel in Upper Landing Gate (must have selected gate above)
      $595.00
      No Image
      spacer
  • Interlocks (For Gates/Doors Provided by Others)

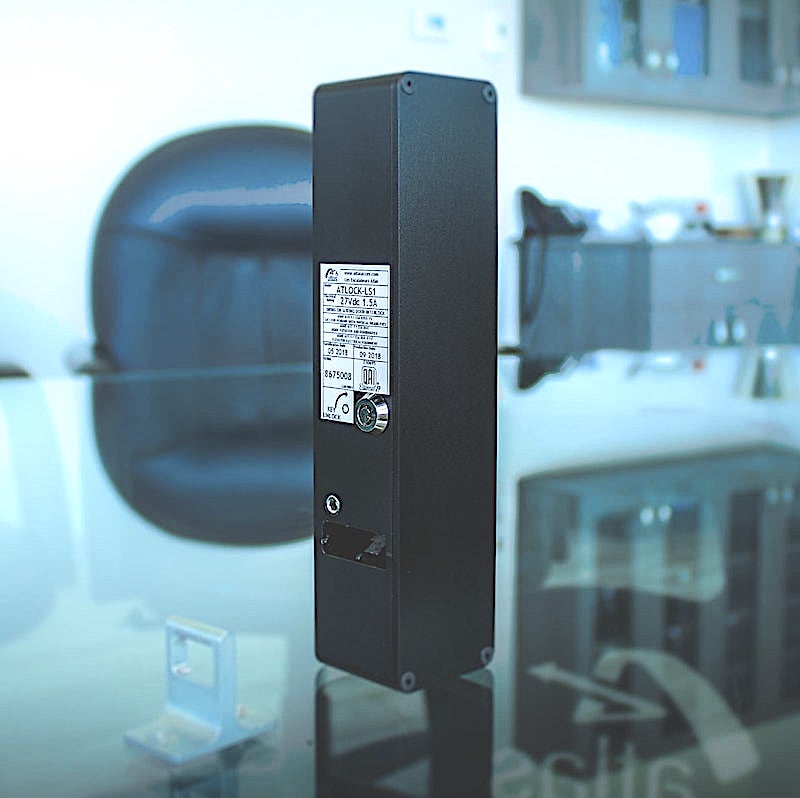

    • Interlock Only (For Gates/Doors Provided by Others)
      $399.00
      Hercules Interlock for Customer Provided Gate or Door
      spacer
  • Call/Send Options

    • Call/Send Control must be ordered for every Door or Gate Ordered
      $0.00
      Hercules Interlock for Customer Provided Gate or Door
      spacer
    • Keyed Call/Send Post - Lower Landing
      $250.00
      Hercules DC 750 Call/Send Post
      spacer
    • Keyed Call/Send Post - Mid Landing
      $250.00
      Hercules DC 750 Call/Send Post
      spacer
    • Keyed Call/Send Post - Upper Landing
      $250.00
      Hercules DC 750 Call/Send Post
      spacer
    • Keyed Call/Send Flush Mount - Lower Landing
      $250.00
      Hercules DC 750 Flush Mount Call/Send
      spacer
    • Keyed Call/Send Flush Mount - Mid Landing
      $250.00
      Hercules DC 750 Flush Mount Call/Send
      spacer
    • Keyed Call/Send Flush Mount - Upper Landing
      $250.00
      Hercules DC 750 Flush Mount Call/Send
      spacer
    • Keyed Call/Send Surface Mount - Lower Landing
      $250.00
      Hercules DC 750 Surface Mount Call/Send
      spacer
    • Keyed Call/Send Surface Mount - Mid Landing
      $250.00
      Hercules DC 750 Surface Mount Call/Send
      spacer
    • Keyed Call/Send Surface Mount - Upper Landing
      $250.00
      Hercules DC 750 Surface Mount Call/Send
      spacer
    • Lighted Buttons for Call Station
      $285.00
      No Image
      spacer
    • 40mm (1.57") Diameter Buttons on Call Station
      $144.00
      No Image
      spacer
    • 60mm (2.36") Diameter Buttons on Call Station
      $144.00
      No Image
      spacer
    • Anti-Tamper Commercial Buttons
      $176.00
      No Image
      spacer
    • The Following Can Only Be Applied to a Polycarbonate Door
      $0.00
      No Image
      spacer
    • Keyed Call/Send In Door's Frame - Lower Landing
      $350.00
      Hercules DC 750 Door Frame Call/Send - Polycarbonate Door Only
      spacer
    • Keyed Call/Send In Door's Frame - Mid Landing
      $350.00
      Hercules DC 750 Door Frame Call/Send - Polycarbonate Door Only
      spacer
    • Keyed Call/Send In Door's Frame - Upper Landing
      $350.00
      Hercules DC 750 Door Frame Call/Send - Polycarbonate Door Only
      spacer
  • Auto Openers and Closers

    • Auto Operator for Gate Qty.
      $1,495.00
      No Image
      spacer

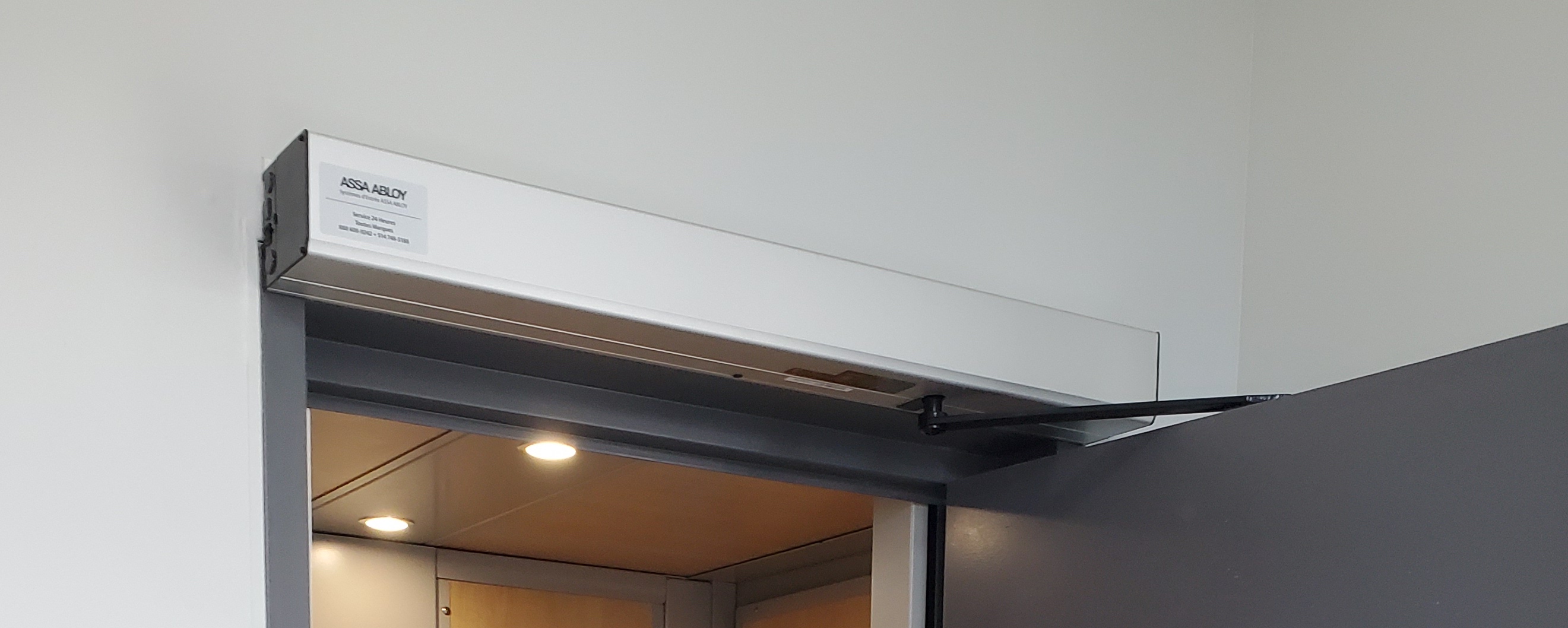

    • Auto Operator for Door Qty.
      $2,295.00
      Hercules DC 750 Auto Opener for Door (Commercial-Fire Rated)
      spacer
    • Wireless Remotes for Auto Operators (2x)
      $240.00
      No Image
      spacer

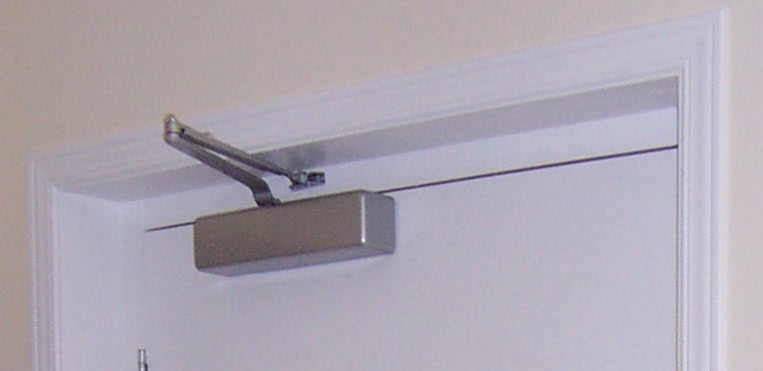

    • Gas Spring Loaded Door Closer (Required for Doors Without Auto Operator)
      $156.00
      Hercules DC 750 Gas-Spring Door Closer
      spacer
  • Other Options

    • Designer Gate
      $320.00
      No Image
      spacer
    • Easy Access Lowering Mechanism
      $527.00
      No Image
      spacer
    • Folding Seat
      $599.00
      No Image
      spacer
    • Fixed Ramp for Bottom Landing
      $599.00
      No Image
      spacer
    • Custom Sized Folding Ramp (less than 24")
      $390.91
      No Image
      spacer
    • Additional Weather Protection Coating
      $1,995.00
      No Image
      spacer
    • Front Panel Brushes (Travel Track Protection)
      $399.00
      No Image
      spacer
    • GFI Outlet in Wing Wall
      $159.82
      No Image
      spacer
    • Handsfree Phone
      $999.00
      No Image
      spacer
    • 1000 lbs. Capacity
      $1,995.00
      No Image
      spacer
    • All Wooden Crate
      $199.00
      No Image
      spacer
  • Delivery Options

    • Factory Pickup
      $0.00
      No Image
      spacer
    • Pick up at Local Freight Terminal
      $0.00
      No Image
      spacer
    • Site Shipping - Customer Provided Fork Lift or Loading Dock Available
      $0.00
      No Image
      spacer
    • Site Shipping - Liftgate Delivery (only for 64" models)
      $250.00
      No Image
      spacer
  • Delivery State

    • Alabama
      $0.00
      No Image
      spacer
    • Alaska
      $0.00
      No Image
      spacer
    • Arizona
      $0.00
      No Image
      spacer
    • Arkansas
      $0.00
      No Image
      spacer
    • California
      $0.00
      No Image
      spacer
    • Colorado
      $0.00
      No Image
      spacer
    • Connecticut
      $0.00
      No Image
      spacer
    • Delaware
      $0.00
      No Image
      spacer
    • District of Columbia
      $0.00
      No Image
      spacer
    • Florida
      $0.00
      No Image
      spacer
    • Georgia
      $0.00
      No Image
      spacer
    • Hawaii
      $0.00
      No Image
      spacer
    • Idaho
      $0.00
      No Image
      spacer
    • Illinois
      $0.00
      No Image
      spacer
    • Indiana
      $0.00
      No Image
      spacer
    • Iowa
      $0.00
      No Image
      spacer
    • Kansas
      $0.00
      No Image
      spacer
    • Kentucky
      $0.00
      No Image
      spacer
    • Louisiana
      $0.00
      No Image
      spacer
    • Maine
      $0.00
      No Image
      spacer
    • Maryland
      $0.00
      No Image
      spacer
    • Massachusetts
      $0.00
      No Image
      spacer
    • Michigan
      $0.00
      No Image
      spacer
    • Minnesota
      $0.00
      No Image
      spacer
    • Mississippi
      $0.00
      No Image
      spacer
    • Missouri
      $0.00
      No Image
      spacer
    • Montana
      $0.00
      No Image
      spacer
    • Nebraska
      $0.00
      No Image
      spacer
    • Nevada
      $0.00
      No Image
      spacer
    • New Hampshire
      $0.00
      No Image
      spacer
    • New Jersey
      $0.00
      No Image
      spacer
    • New Mexico
      $0.00
      No Image
      spacer
    • New York
      $0.00
      No Image
      spacer
    • North Carolina
      $0.00
      No Image
      spacer
    • North Dakota
      $0.00
      No Image
      spacer
    • Ohio
      $0.00
      No Image
      spacer
    • Oklahoma
      $0.00
      No Image
      spacer
    • Oregon
      $0.00
      No Image
      spacer
    • Pennsylvania
      $0.00
      No Image
      spacer
    • Rhode Island
      $0.00
      No Image
      spacer
    • South Carolina
      $0.00
      No Image
      spacer
    • South Dakota
      $0.00
      No Image
      spacer
    • Tennessee
      $0.00
      No Image
      spacer
    • Texas
      $0.00
      No Image
      spacer
    • Utah
      $0.00
      No Image
      spacer
    • Vermont
      $0.00
      No Image
      spacer
    • Virginia
      $0.00
      No Image
      spacer
    • Washington
      $0.00
      No Image
      spacer
    • West Virginia
      $0.00
      No Image
      spacer
    • Wisconsin
      $0.00
      No Image
      spacer
    • Wyoming
      $0.00
      No Image
      spacer
  • Shipping Cost

    • Call for Shipping Cost
      $0.00
      No Image
      spacer
spacer
What customers say about this product...
This product currently has no reviews. Would you like to leave one?



Stair Lifts 4 Less Bottom
spacer
