AmeriGlide Hercules 750 Residential

spacer
  • AmeriGlide Hercules 750 Residential
spacer
click an image to enlarge
Warranty
Warranty
Add To Cart
$4,100.00
$3,495.00
Plus Shipping
Product Review
(0)
(100)

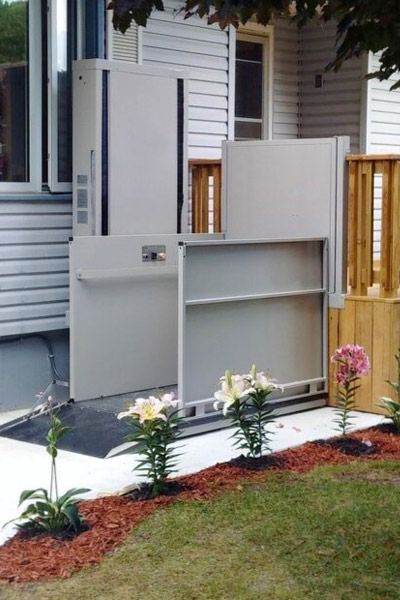

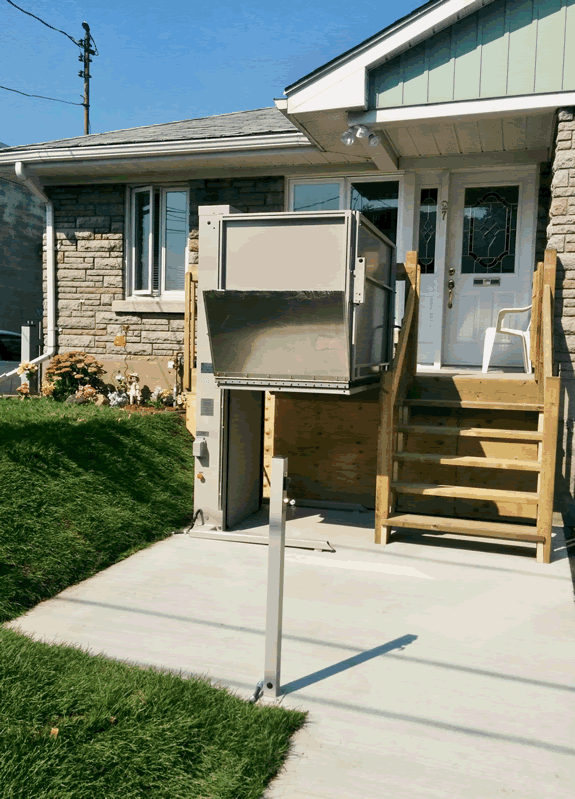

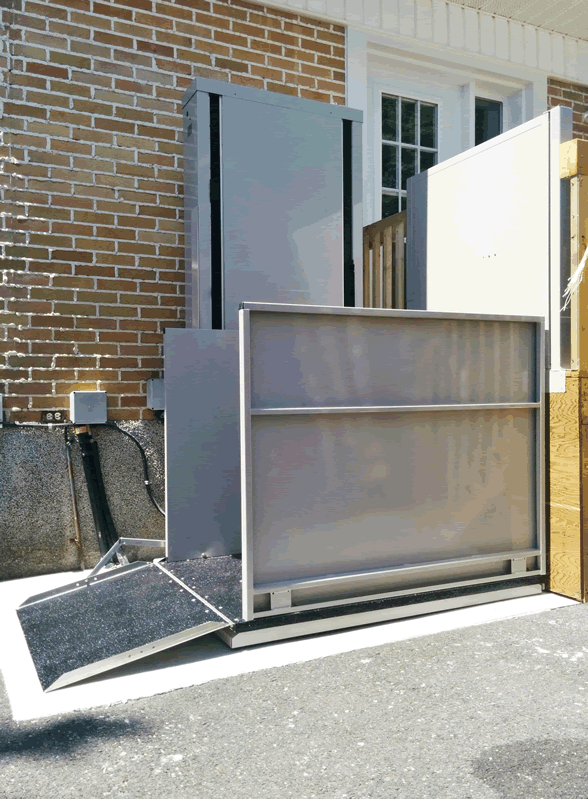

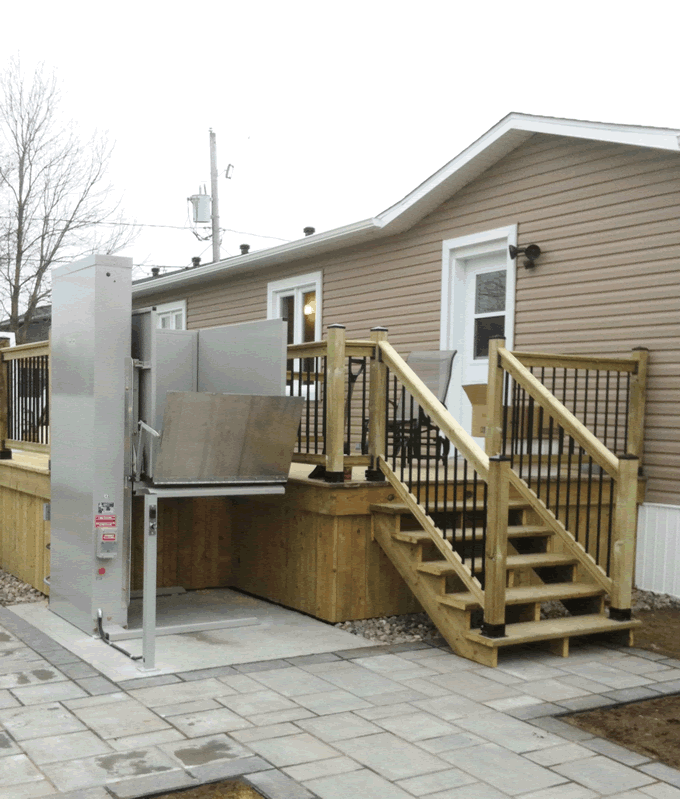

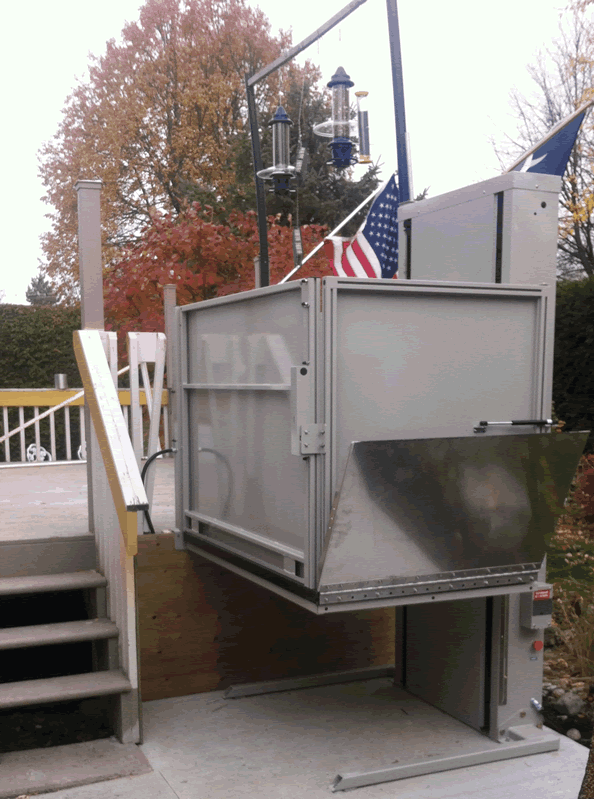

The AmeriGlide Hercules 750 Residential Vertical Lift is the ideal vertical platform lift for outdoor or indoor applications. Great for porches, decks, and garages too! The non-skid epoxy coated floor and galvanized steel panel is weather resistant, even in the harshest conditions.

A 750 pound weight capacity comes standard on the Hercules, but a 1000-pound capacity is available as an option. Great for lifting large wheelchairs and two people at one time.

The acme screw direct drive makes the Hercules the smoothest and quietest lift on the market. Being battery powered, the lift and its automatic self-lowering folding ramp (standard) will even work during a power outage.

Safety features include under platform obstruction detection, emergency stop switch, anti-skid floor surface, emergency alarm, and much more.

To learn more about the Hercules 750 Residential Vertical Lift, call and speak with our experienced VPL experts today.

If you need a fully enclosed Vertical Lift, see our AmeriGlide Hercules 750 Commercial Enclosed Vertical Platform Lift.

spacer
Features
Lifting Capacity750 lb
Standard Lift Height64"
Maximum Lift Height160"
Arrives AssembledNo
Drive SystemDirect Drive ACME Screw
Battery Powered OptionYes
Constant Pressure Platform ControlYes
Alarm ButtonIncluded
Platform TypeNon-skid (Epoxy crushed and recycled tires)
Platform SizeW 34"-36" x L 54"-60"
Optional Platform SizesCustom: W (31" to 42") x L (46" to 66")
Platform ConfigurationStraight-Thru Access
Optional Platform ConfigurationsSame Side Entry-Exit, 90 Degree Adjacent Access
Grab RailIncluded
Maximum Stops3
Lift Speed (FPM)12
PortableOptional

Options Available

  • Residential Hercules DC 750 Includes

    • 455 Keys
      $0.00
      No Image
      spacer
    • Rocker Switch
      $0.00
      No Image
      spacer
    • Audible Emergency Alarm
      $0.00
      No Image
      spacer
    • Pit Switch
      $0.00
      No Image
      spacer
    • AC Power Cord and Interlock Wiring Kit (Interlocks Not Included)
      $0.00
      AC Power Cord and Interlock Wiring Kit (Interlocks Not Included)
      spacer
  • Power Source

    • DC Battery Powered (2 x U1 Batteries Included)
      $0.00
      No Image
      spacer
    • AC Powered
      $0.00
      No Image
      spacer
  • Number of Stops

    • Two Stop
      $0.00
      No Image
      spacer
    • Three Stop
      $962.00
      No Image
      spacer
  • Lifting Height

    • 44" Maximum Lift Height (tower 72")
      $463.00
      No Image
      spacer
    • 64" Maximum Lift Height (tower 92")
      $0.00
      No Image
      spacer
    • 78" Maximum Lift Height (tower 108")
      $695.00
      No Image
      spacer
    • 98" Maximum Lift Height (tower 126")
      $1,172.00
      No Image
      spacer
    • 115" Maximum Lift Height (tower 158")
      $2,335.00
      No Image
      spacer
    • 130" Maximum Lift Heigth (tower 158")
      $3,528.00
      No Image
      spacer
    • 160" Maximum Lift Height (tower 190")
      $4,721.00
      No Image
      spacer
  • Color of Unit

    • Grey (standard)
      $0.00
      No Image
      spacer
    • Custom Color (Call to Verify Color Available)
      $835.00
      No Image
      spacer
    • Stainless Steel
      $6,106.00
      No Image
      spacer
  • Fascia Panels

    • No Fascia Panels
      $0.00
      No Image
      spacer
    • Fascia Panels can be any height up to 98". Specify height in decimal feet below.
      $0.00
      No Image
      spacer
    • Galvanized Steel Fascia Panels (per foot)
      $35.00
      No Image
      spacer
    • 3/16" Acrylic Lexan w/Aluminum Frame (per foot)
      $54.00
      No Image
      spacer
  • Platform / Tower Configuration

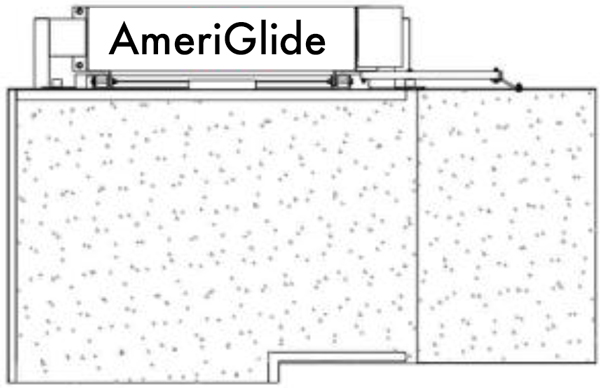

    • Straight Thru Left Hand
      $0.00
      Straight Thru Left Hand
      spacer

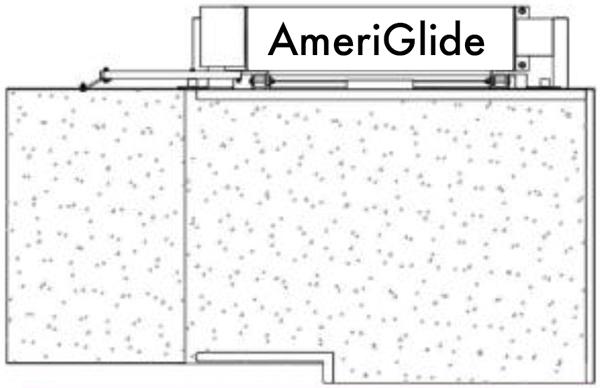

    • 90 Degree Left Hand
      $499.00
      90 Degree Left Hand
      spacer

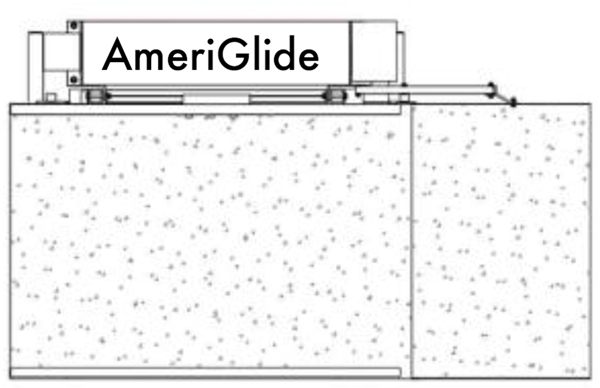

    • Straight Thru Right Hand
      $0.00
      Straight Thru Right Hand
      spacer

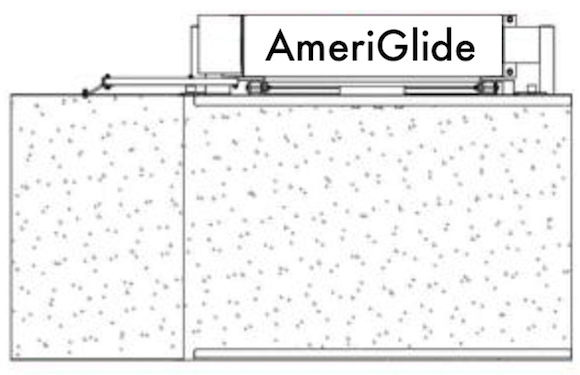

    • 90 Degree Right Hand
      $499.00
      90 Degree Right Hand
      spacer
    • Same Side Entry/Exit (For Hoistway Installs Only)
      $499.00
      No Image
      spacer
  • Guard Panels / Cab

    • 42" High Steel Guard Panels (Standard)
      $0.00
      No Image
      spacer
    • 80" High Outdoor Cab - Steel (Includes 2 Gates and Roof)
      $3,202.00
      No Image
      spacer
    • 80" High Indoor Cab - Melamine
      $809.00
      No Image
      spacer
  • Platform Canopy for 42" Panels (Rather Than Full Cab)

    • No Canopy
      $0.00
      No Image
      spacer
    • Platform Canopy
      $706.00
      No Image
      spacer
  • Wing Walls

    • No Wing Walls
      $0.00
      No Image
      spacer
    • 64" Travel
      $450.00
      No Image
      spacer
    • 78" Travel
      $500.00
      No Image
      spacer
    • 98" Travel
      $545.00
      No Image
      spacer
    • 115" Travel
      $720.00
      No Image
      spacer
    • 130" Travel
      $785.00
      No Image
      spacer
    • 160" Travel
      $785.00
      No Image
      spacer
  • Platform Dimensions (Dimensions are All Clear)

    • 34" x 54"
      $0.00
      No Image
      spacer
    • 34" x 60"
      $0.00
      No Image
      spacer
    • 36" x 54"
      $0.00
      No Image
      spacer
    • 36" x 60"
      $536.00
      No Image
      spacer
    • Custom: W=30" to 42" by L=46" to 66"
      $536.00
      No Image
      spacer
  • Platform Controls

    • 40mm (1.57") Diameter Buttons on Platform
      $322.00
      No Image
      spacer
    • 60mm (2.36") Diameter Buttons on Platform
      $342.00
      No Image
      spacer
    • Joystick
      $184.00
      No Image
      spacer
    • Additional Platform Controls (On Opposite Side)
      $507.00
      No Image
      spacer
    • Lighted Buttons for COP
      $130.00
      No Image
      spacer
  • Lower Landing Orientation

    • Open on Left
      $0.00
      Open on Left
      spacer
    • Open on Right
      $0.00
      Open on Right
      spacer
  • Lower Landing Entrance (Interlock Included with Door/Gate)

    • A Call/Send Control must be ordered for every Door or Gate Ordered
      $0.00
      Open on Right
      spacer
    • Polycarbonate Gate Panel
      $1,104.00
      No Image
      spacer
    • 34" or 36" W x 42" H Platform Gate
      $847.00
      No Image
      spacer
    • 38" to 42" W x 42" H Platform Gate
      $1,052.00
      No Image
      spacer
    • Door 80" H x 36" W Interior
      $711.00
      Hercules Door 36" x 80" Interior
      spacer
    • Door 80" H x 36" W Exterior
      $1,540.00
      Hercules Door 36" x 80" Exterior
      spacer
    • Door 80" H x 36" W Commercial
      $1,066.00
      Hercules Door 36" x 80" Commercial
      spacer
    • Door 80" H x 36" W Exterior Polycarbonate
      $1,540.00
      Hercules Door 36" x 80" Exterior Polycarbonate
      spacer
    • Door 80" H x 42" W Interior
      $1,617.00
      Hercules Door 42" x 80" Interior
      spacer
    • Door 80" H x 42" W Exterior
      $2,251.00
      Hercules Door 42" x 80" Exterior
      spacer
    • Door 80" H x 42" W Commercial
      $1,870.00
      Hercules Door 42" x 80" Commercial
      spacer
    • Door 80" H x 42" W Exterior Polycarbonate
      $2,251.00
      Hercules Door 42" x 80" Exterior Polycarbonite
      spacer
    • No Gate or Door (For Gates/Doors Provided by Others)
      $0.00
      No Image
      spacer
  • Mid Landing Orientation (3 Stop Units Only)

    • Open on Left
      $0.00
      No Image
      spacer
    • Open on Right
      $0.00
      No Image
      spacer
  • Mid Landing Entrance (3 Stop Units Only, Interlock Included)

    • A Call/Send Control must be ordered for every Door or Gate Ordered
      $0.00
      No Image
      spacer
    • Door 80" H x 36" W Interior
      $711.00
      Hercules Door 36" x 80" Interior
      spacer
    • Door 80" H x 36" W Exterior
      $1,540.00
      Hercules Door 36" x 80" Exterior
      spacer
    • Door 80" H x 36" W Commercial
      $1,066.00
      Hercules Door 36" x 80" Commercial
      spacer
    • Door 80" H x 36" W Exterior Polycarbonate
      $1,540.00
      Hercules Door 36" x 80" Exterior Polycarbonate
      spacer
    • Door 80" H x 42" W Interior
      $1,617.00
      Hercules Door 42" x 80" Interior
      spacer
    • Door 80" H x 42" W Exterior
      $2,251.00
      Hercules Door 42" x 80" Exterior
      spacer
    • Door 80" H x 42" W Commercial
      $1,870.00
      Hercules Door 42" x 80" Commercial
      spacer
    • Door 80" H x 42" W Exterior Polycarbonate
      $2,251.00
      Hercules Door 42" x 80" Exterior Polycarbonite
      spacer
    • Interlock is included with any Door Ordered
      $0.00
      Hercules Door 42" x 80" Exterior Polycarbonite
      spacer
    • No Door (For Doors Provided by Others)
      $0.00
      No Image
      spacer
  • Upper Landing Orientation

    • Open on Left
      $0.00
      Open on Left
      spacer
    • Open on Right
      $0.00
      Open on Right
      spacer
  • Upper Landing Entrance (Interlock Included with Door/Gate)

    • A Call/Send Control must be ordered for every Door or Gate Ordered
      $0.00
      Open on Right
      spacer
    • Polycarbonate Gate Panel
      $963.00
      No Image
      spacer
    • 34" or 36" W x 42" H Upper Landing Gate
      $662.96
      No Image
      spacer
    • 38" to 42" W x 42 H Upper Landing Gate
      $1,052.00
      No Image
      spacer
    • Door 80" H x 36" W Interior
      $711.00
      Hercules Door 36" x 80" Interior
      spacer
    • Door 80" H x 36" W Exterior
      $1,540.00
      Hercules Door 36" x 80" Exterior
      spacer
    • Door 80" H x 36" W Commercial
      $1,066.00
      Hercules Door 36" x 80" Commercial
      spacer
    • Door 80" H x 36" W Exterior Polycarbonate
      $1,540.00
      Hercules Door 36" x 80" Exterior Polycarbonate
      spacer
    • Door 80" H x 42" W Interior
      $1,617.00
      Hercules Door 42" x 80" Interior
      spacer
    • Door 80" H x 42" W Exterior
      $2,251.00
      Hercules Door 42" x 80" Exterior
      spacer
    • Door 80" H x 42" W Commercial
      $1,870.00
      Hercules Door 42" x 80" Commercial
      spacer
    • Door 80" H x 42" W Exterior Polycarbonate
      $2,251.00
      Hercules Door 42" x 80" Exterior Polycarbonite
      spacer
    • No Gate or Door (For Gates/Doors Provided by Others)
      $0.00
      No Image
      spacer
  • Interlocks (For Gates/Doors Provided by Others)

    • Interlock Only (For Gates/Doors Provided by Others)
      $261.00
      Hercules Interlock for Customer Provided Gate or Door
      spacer
  • Call/Send Options

    • 40mm (1.57") Diameter Buttons on Call Station
      $115.00
      No Image
      spacer
    • 60mm (2.36") Diameter Buttons on Call Station
      $115.00
      No Image
      spacer
    • Anti-Tamper Commercial Buttons
      $142.00
      No Image
      spacer
    • Keyed Call/Send Post - Lower Landing
      $232.00
      Hercules DC 750 Call/Send Post
      spacer
    • Keyed Call/Send Post - Mid Landing
      $232.00
      Hercules DC 750 Call/Send Post
      spacer
    • Keyed Call/Send Post - Upper Landing
      $232.00
      Hercules DC 750 Call/Send Post
      spacer
    • Keyed Call/Send Flush Mount - Lower Landing
      $232.00
      Hercules DC 750 Flush Mount Call/Send
      spacer
    • Keyed Call/Send Flush Mount - Mid Landing
      $232.00
      Hercules DC 750 Flush Mount Call/Send
      spacer
    • Keyed Call/Send Flush Mount - Upper Landing
      $232.00
      Hercules DC 750 Flush Mount Call/Send
      spacer
    • Keyed Call/Send Surface Mount - Lower Landing
      $232.00
      Hercules DC 750 Surface Mount Call/Send
      spacer
    • Keyed Call/Send Surface Mount - Mid Landing
      $232.00
      Hercules DC 750 Surface Mount Call/Send
      spacer
    • Keyed Call/Send Surface Mount - Upper Landing
      $232.00
      Hercules DC 750 Surface Mount Call/Send
      spacer
    • Keyed Call/Send In Gate's Frame - Upper Landing Only
      $232.00
      Hercules DC 750 In Gate Frame Call/Send
      spacer
    • Lighted Buttons for Call Station
      $95.00
      No Image
      spacer
    • Call/Send Control must be ordered for every Door or Gate Ordered
      $0.00
      No Image
      spacer
  • Auto Openers and Closers

    • Auto Operator for Gate Qty.
      $860.00
      No Image
      spacer

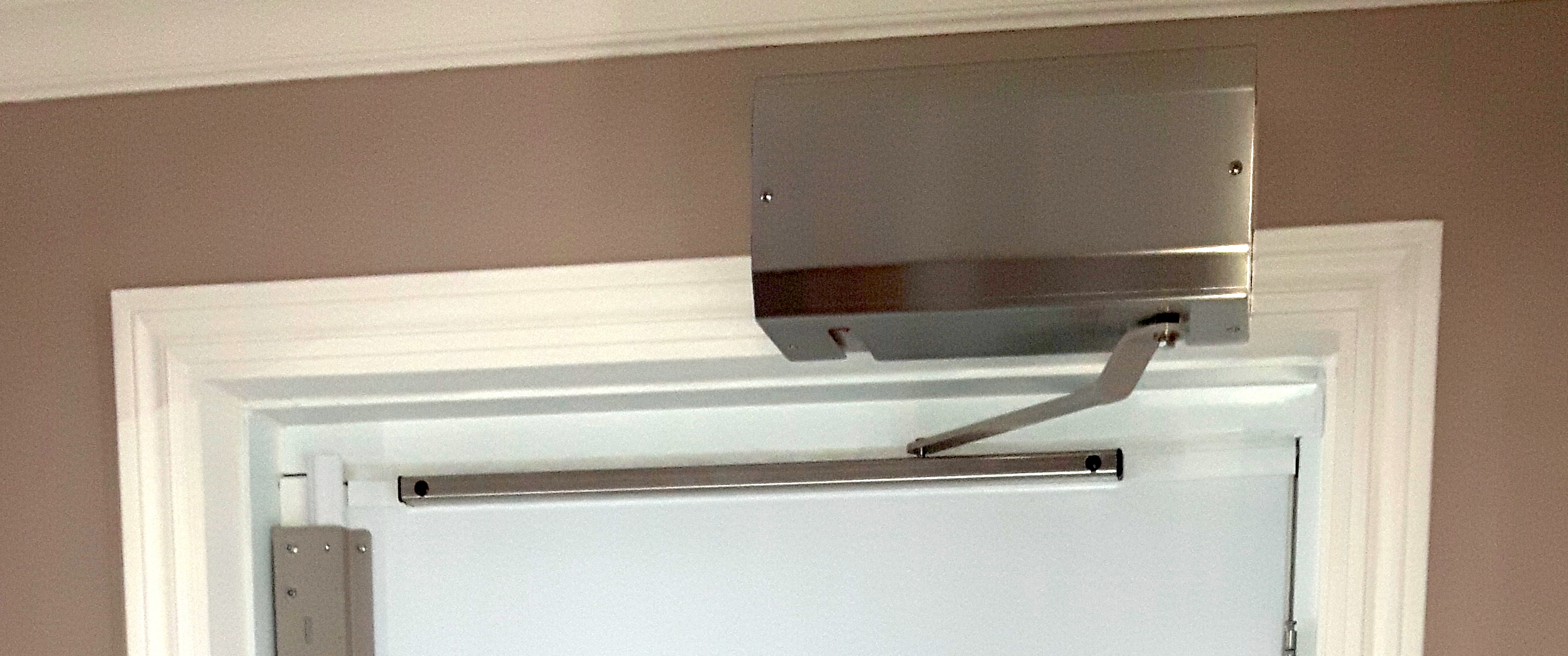

    • Auto Operator for Door Qty.
      $948.00
      No Image
      spacer
    • Wireless Remotes for Auto Operators (2x)
      $136.00
      No Image
      spacer
    • Gas Spring Loaded Door Closer (Required for Doors Without Auto Operator)
      $83.00
      Hercules DC 750 Gas-Spring Door Closer
      spacer
  • Other Options

    • Grab Bar
      $194.00
      No Image
      spacer
    • Platform Lights
      $194.00
      No Image
      spacer
    • Disconnect Switch
      $135.00
      No Image
      spacer
    • Designer Gate
      $257.00
      No Image
      spacer
    • Easy Access Lowering Mechanism
      $527.00
      No Image
      spacer
    • Folding Seat
      $450.00
      No Image
      spacer
    • Fixed Ramp for Bottom Landing
      $325.00
      No Image
      spacer
    • Custom Sized Folding Ramp (less than 24")
      $273.00
      No Image
      spacer
    • Additional Weather Protection Coating
      $449.00
      No Image
      spacer
    • Front Panel Brushes (Travel Track Protection)
      $85.00
      No Image
      spacer
    • GFI Outlet in Wing Wall
      $141.00
      No Image
      spacer
    • Handsfree Phone
      $578.00
      No Image
      spacer
    • Ground Support Brackets
      $325.00
      No Image
      spacer
    • Triangle Support Brackets
      $273.00
      No Image
      spacer
    • 1000 lbs. Capacity
      $1,284.00
      No Image
      spacer
    • All Wooden Crate
      $460.00
      No Image
      spacer
  • Delivery Options

    • Pick up at Local Freiht Terminal
      $0.00
      No Image
      spacer
    • Site Shipping - Customer Provided Fork Lift OR Loading Dock on Site
      $0.00
      No Image
      spacer
    • Site Shipping - Liftgate Delivery (not available for 98" and taller models)
      $199.00
      No Image
      spacer
    • Site Shipping - Flatbed & Forklift Delivery (Available in Most Areas)(for 98" and taller models)
      $999.00
      No Image
      spacer
    • Factory Pickup
      $0.00
      No Image
      spacer
  • Delivery State

    • Delivery Outside of the USA
      $0.00
      No Image
      spacer
    • Alabama
      $0.00
      No Image
      spacer
    • Alaska
      $0.00
      No Image
      spacer
    • Arizona
      $0.00
      No Image
      spacer
    • Arkansas
      $0.00
      No Image
      spacer
    • California
      $0.00
      No Image
      spacer
    • Colorado
      $0.00
      No Image
      spacer
    • Connecticut
      $0.00
      No Image
      spacer
    • Delaware
      $0.00
      No Image
      spacer
    • District of Columbia
      $0.00
      No Image
      spacer
    • Florida
      $0.00
      No Image
      spacer
    • Georgia
      $0.00
      No Image
      spacer
    • Hawaii
      $0.00
      No Image
      spacer
    • Idaho
      $0.00
      No Image
      spacer
    • Illinois
      $0.00
      No Image
      spacer
    • Indiana
      $0.00
      No Image
      spacer
    • Iowa
      $0.00
      No Image
      spacer
    • Kansas
      $0.00
      No Image
      spacer
    • Kentucky
      $0.00
      No Image
      spacer
    • Louisiana
      $0.00
      No Image
      spacer
    • Maine
      $0.00
      No Image
      spacer
    • Maryland
      $0.00
      No Image
      spacer
    • Massachusetts
      $0.00
      No Image
      spacer
    • Michigan
      $0.00
      No Image
      spacer
    • Minnesota
      $0.00
      No Image
      spacer
    • Mississippi
      $0.00
      No Image
      spacer
    • Missouri
      $0.00
      No Image
      spacer
    • Montana
      $0.00
      No Image
      spacer
    • Nebraska
      $0.00
      No Image
      spacer
    • Nevada
      $0.00
      No Image
      spacer
    • New Hampshire
      $0.00
      No Image
      spacer
    • New Jersey
      $0.00
      No Image
      spacer
    • New Mexico
      $0.00
      No Image
      spacer
    • New York
      $0.00
      No Image
      spacer
    • North Carolina
      $0.00
      No Image
      spacer
    • North Dakota
      $0.00
      No Image
      spacer
    • Ohio
      $0.00
      No Image
      spacer
    • Oklahoma
      $0.00
      No Image
      spacer
    • Oregon
      $0.00
      No Image
      spacer
    • Pennsylvania
      $0.00
      No Image
      spacer
    • Rhode Island
      $0.00
      No Image
      spacer
    • South Carolina
      $0.00
      No Image
      spacer
    • South Dakota
      $0.00
      No Image
      spacer
    • Tennessee
      $0.00
      No Image
      spacer
    • Texas
      $0.00
      No Image
      spacer
    • Utah
      $0.00
      No Image
      spacer
    • Vermont
      $0.00
      No Image
      spacer
    • Virginia
      $0.00
      No Image
      spacer
    • Washington
      $0.00
      No Image
      spacer
    • West Virginia
      $0.00
      No Image
      spacer
    • Wisconsin
      $0.00
      No Image
      spacer
    • Wyoming
      $0.00
      No Image
      spacer
spacer
What customers say about this product...
This product currently has no reviews. Would you like to leave one?



Stair Lifts 4 Less Bottom
spacer
