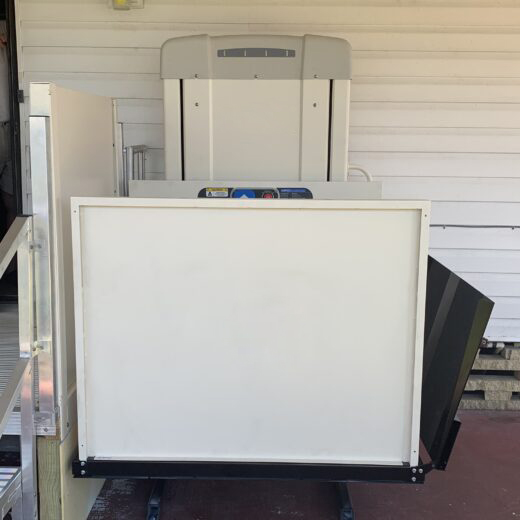

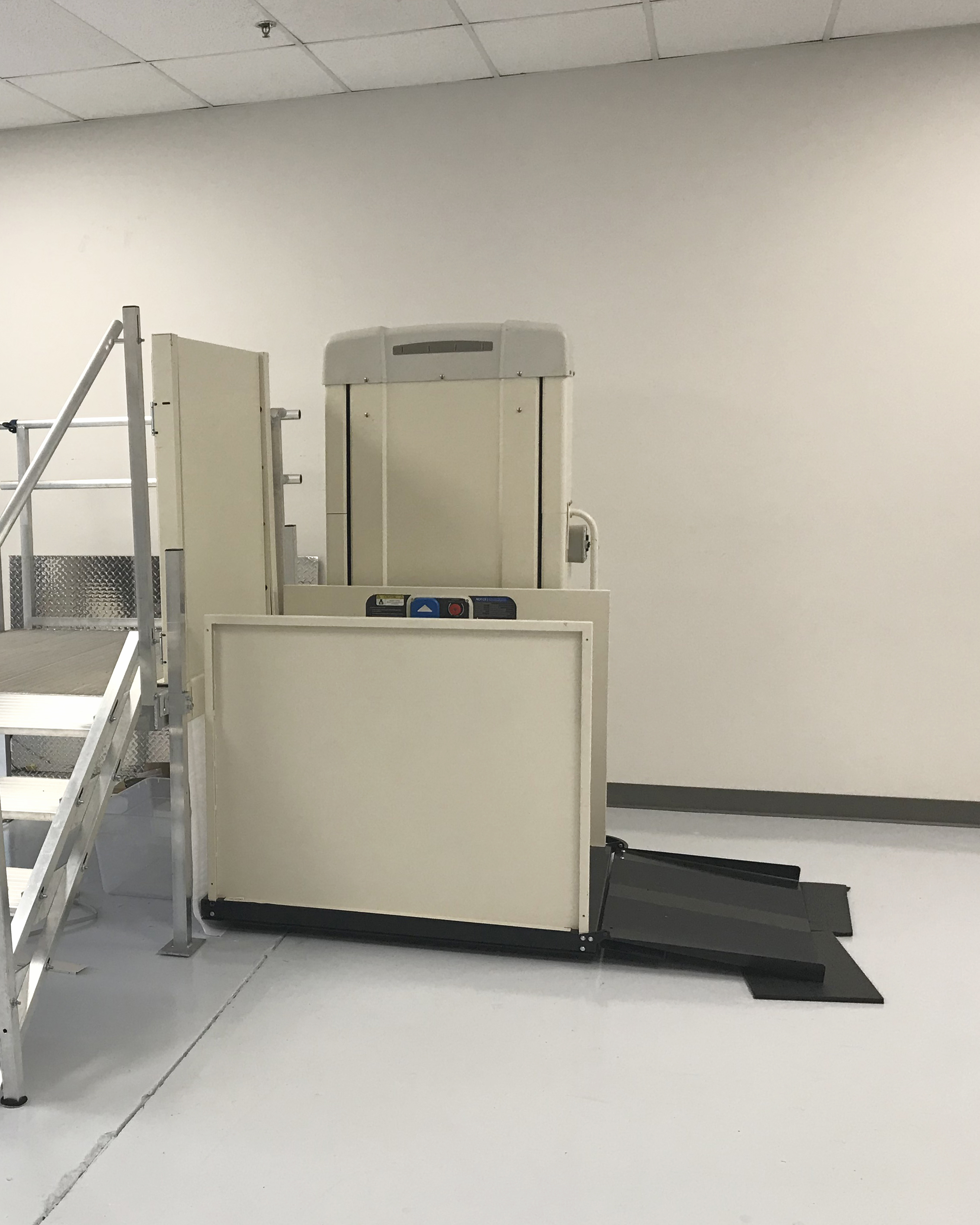

| $7,399.00 Plus Shipping Free Shipping Save money when you buy a reconditioned vertical lift. Our vertical lifts are reconditioned at the factory to arrive at your home in like new condition. They have all the same capabilities as our regular vertical platform lifts. The Hercules II 750 Commercial Vertical Platform Lift offers a substantial 750 lb weight capacity. This is a large increase over the Hercules II 600 models. Our standard commercial package ensures that you meet code right away. The Emergency Stop feature includes an Alarm, as well as two call sends. The sturdy ball screw drive and large platform ensure that users can operate the lift comfortably and safely. The top limit switch allows you to set the top height of the platform at any height (up to 171") so the same level can be easily accessed whenever you need to do so.  | Lifting Capacity | 750 lb | | Standard Lift Height | 53" | | Maximum Lift Height | 171" | | Arrives Assembled | No | | Drive System | Ball Screw Drive | | Optional Drive Systems | None Available | | Battery Powered Option | Yes | | Constant Pressure Platform Control | Yes | | Emergency Stop Platform Control | Included | | Alarm Button | Included, Optional Lighted Button | | Keyed Platform Control | Optional | | Call-Send Controls | (2) Non-Keyed | | Optional Call-Send Controls | Keyed, Wireless | | Platform Type | Solid with Non-Skid Coating | | Platform Size | 36" x 54" (34" Usable Width) | | Optional Platform Sizes | 36" x 60" (34" Usable), 42"x 54" (34" Usable), 42" x 60" (40" Usable) | | Platform Configuration | Straight-Thru Access | | Optional Platform Configurations | Same Side Entry-Exit, 90 Degree Adjacent Access | | Upper Landing Gate | Optional | | Upper Access Ramp | None Available | | Lower Access Ramp | Fixed, Optional Automatic | | Grab Rail | Included | | Guard Panel | 42" | | Maximum Stops | 3 | | Lift Speed (FPM) | 10 | | Portable | Optional | | Other Options | Fire-Rated Doors, Automatic Door Openers |
Lifting Height 53" Maximum Lift Height (12 Business Day Lead Time) $0.00 77" Maximum Lift Height (12 Business Day Lead Time) $685.00 101" Maximum Lift Height (12 Business Day Lead Time) $1,716.00 125" Maximum Lift Height (24 Business Day Lead Time) $2,377.00 149" Maximum Lift Height (24 Business Day Lead Time) $4,177.00 171" Maximum Lift Height (24 Business Day Lead Time) $5,477.00
Crating & Assembly No Crating - Some assembly is required. $0.00 36" x 54" Platform $0.00 53" Unit Shipped Crated - Some assembly is required $460.00 36" x 60" or 42" x 54" Platform - Requires Extra Large Crate $0.00 53" Unit Shipped Crated - Some assembly is required $691.00
Tower Orientation Tower On The Left $0.00  Tower On The Right $0.00
Power Source AC Powered $0.00 DC Battery Powered $0.00
Platform Type 36" x 54" Straight Thru (34" Usable Width) $0.00 36" x 60" Straight Thru (34" Usable Width) $548.35 42" x 60" Straight Thru (40" Usable Width) $800.00 42" x 54" Straight Thru (40" Usable Width) $548.35 36" x 48" Platform $147.00 36" x 54" 90 Degree (34" Usable Width) $372.40 36" x 60" 90 Degree (34" Usable Width) $749.85 42" x 54" 90 Degree (40" Usable Width) $749.85 42" x 60" 90 Degree (40" Usable Width) $951.40 36" clear x 54" Platform Upgrade $396.60

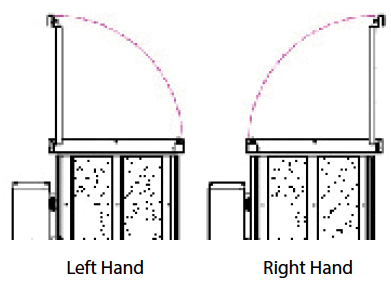

Platform Access Platform Gate Lifts 8' and over that are not in a hoistway require a platform gate or an interlock for a customer provided gate. $0.00 No Platform Gate $0.00 Left Swing 36" Wide Straight Thru Platform Gate with Interlock $724.30  Right Swing 36" Wide Straight Thru Platform Gate with Interlock $724.30 Left Swing 42" Wide Straight Thru Platform Gate with Interlock $1,001.40 Right Swing 42" Wide Straight Thru Platform Gate with Interlock $1,001.40 Left Swing 90 Degree Platform Gate with Interlock $1,052.00 Right Swing 90 Degree Platform Gate with Interlock $1,052.00
Platform Controls Platform Control Options Keylocks for Controls $57.30
Platform Options Ramp Type & Pit Switch Landing Controls Call/Send Control Station (each) $147.00 Keylocks for Controls (each) $57.30 Wireless Call/Send Control Stations (pair) $472.65 Pit Switch $147.00

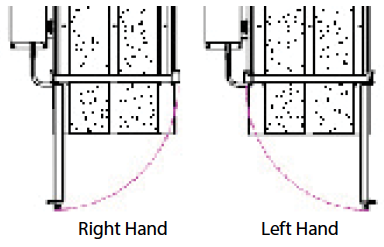

Landing Gate Landing gates below include an interlock and a call/send control built into the gate. $0.00 Left Swing 36" Wide Landing Gate with Interlock & Call/Send Control (each) $926.35  Right Swing 36" Wide Landing Gate with Interlock & Call/Send Control (each) $926.35 Left Swing 42" Wide Landing Gate with Interlock & Call/Send Control (each) $1,152.70 Right Swing 42" Wide Landing Gate with Interlock & Call/Send Control (each) $1,152.70 Landing gates below include an interlock only. $0.00 Left Swing 36" Wide Landing Gate with Interlock Only (each) $794.05 Right Swing 36" Wide Landing Gate with Interlock Only (each) $794.05 Left Swing 42" Wide Landing Gate with Interlock Only (each) $1,053.30 Right Swing 42" Wide Landing Gate with Interlock Only (each) $1,053.30
Fire Rated Doors 36" Fire-Rated Door with EMI - Left $2,231.00  36" Fire-Rated Door with EMI - Right $2,231.00 42" Fire-Rated Door with EMI - Left $2,732.50 42" Fire-Rated Door with EMI - Right $2,732.50 36" Fire-Rated Door with Electric Strike - Left $2,571.00 36" Fire-Rated Door with Electric Strike - Right $2,571.00 42" Fire-Rated Door with Electric Strike - Left $3,072.00 42" Fire-Rated Door with Electric Strike - Right $3,072.00
Automatic Opener Interlocks Surface mount EMI interlocks below are for a customer provided door or gate. $0.00 Left Swing Top Landing Door/Gate EMI Interlock (each) $369.15 Right Swing Top Landing Door/Gate EMI Interlock (each) $369.15 Flush mount electric strike interlocks below are for a customer provided door or gate. $0.00 Top Landing Electric Strike Interlock - Left Hand (each) $709.35 Bottom Landing Electric Strike Interlock - Left Hand (each) $709.35 Top Landing Electric Strike Interlock - Right Hand (each) $709.35 Bottom Landing Electric Strike Interlock - Right Hand (each) $709.35 Other Interlock Options $0.00 Wiring For Interlock (per landing) $170.45 Keyed Dead Latch for Flush Mount Electric Strike Interlock (each) $147.00
Optional Equipment Anchor Bolt Kit $0.00 Tower Braces $170.45 3-Stop Package with 3 Call Controls and Emergency Stop Alarm $749.90 Phone Jack $147.00 Emergency Light $147.00 Fascia Panel (per foot) $81.95 Automatic Opener for Top Landing or Platform Gate $2,099.00  Automatic Opener for Full Size Do $2,458.00 Extra Keys $3.00 Premium Finish for Base Unit (allow 6-8 weeks) $1,566.25 Premium Finish for Tower Above 4' (per foot, allow 6-8 weeks) $301.80 Premium Finish per Gate (allow 6-8 weeks) $148.35 Custom Color (allow 6-8 weeks) $1,531.00 Float Level Switch $179.15
Delivery Options Delivery State
|
