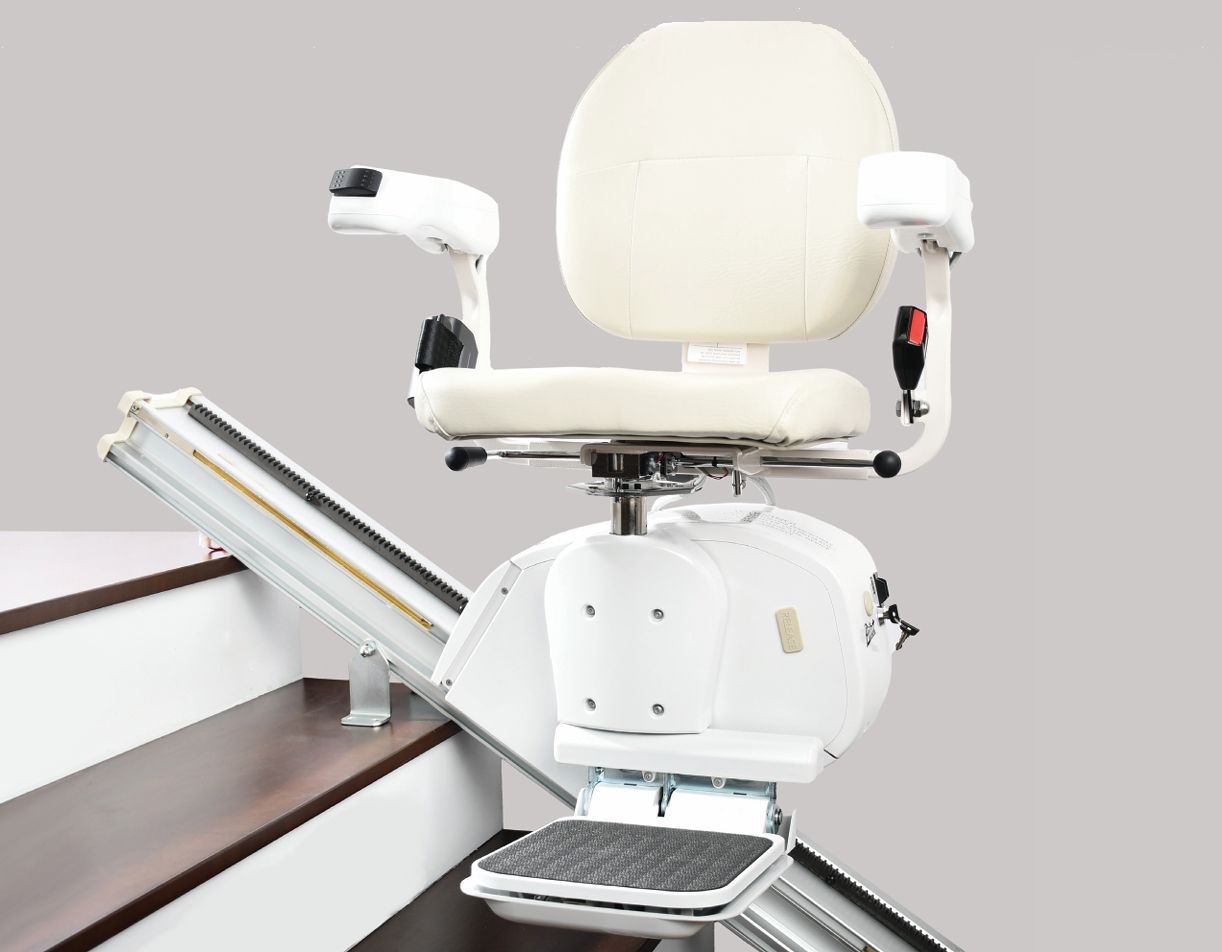

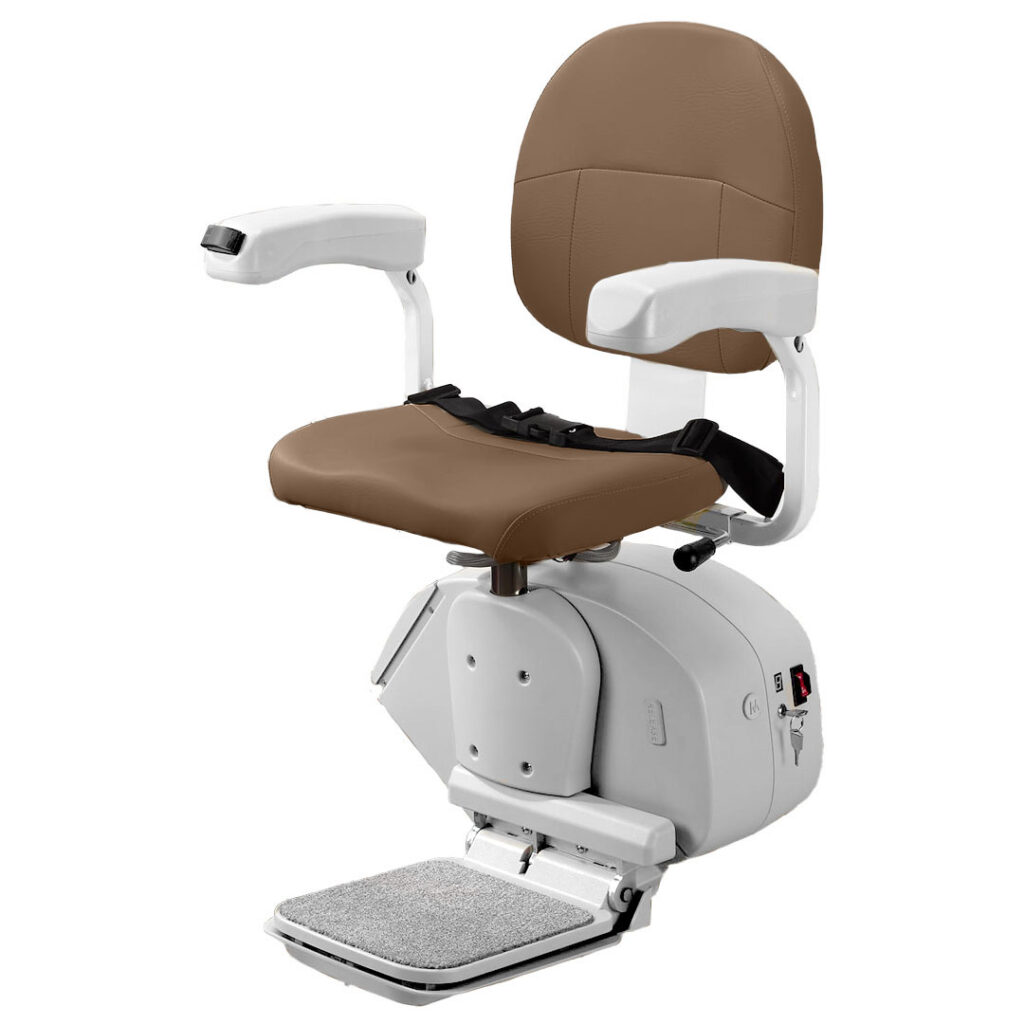

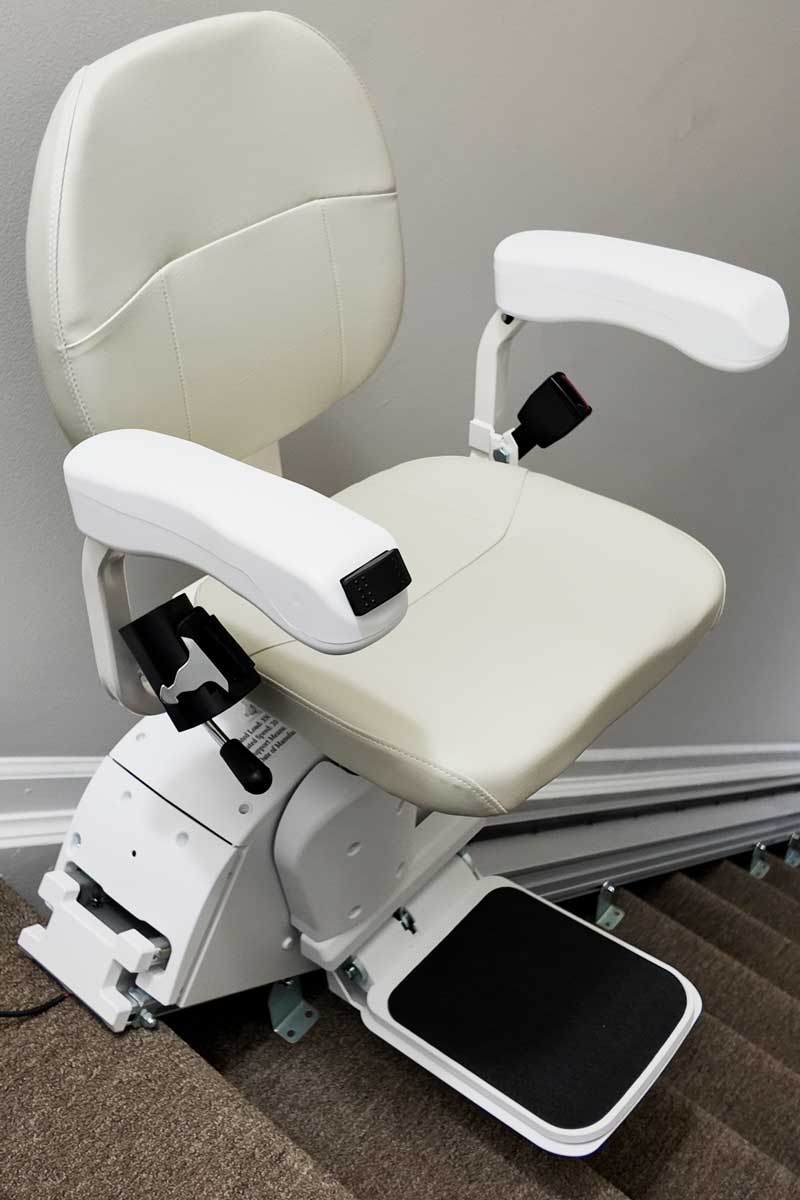

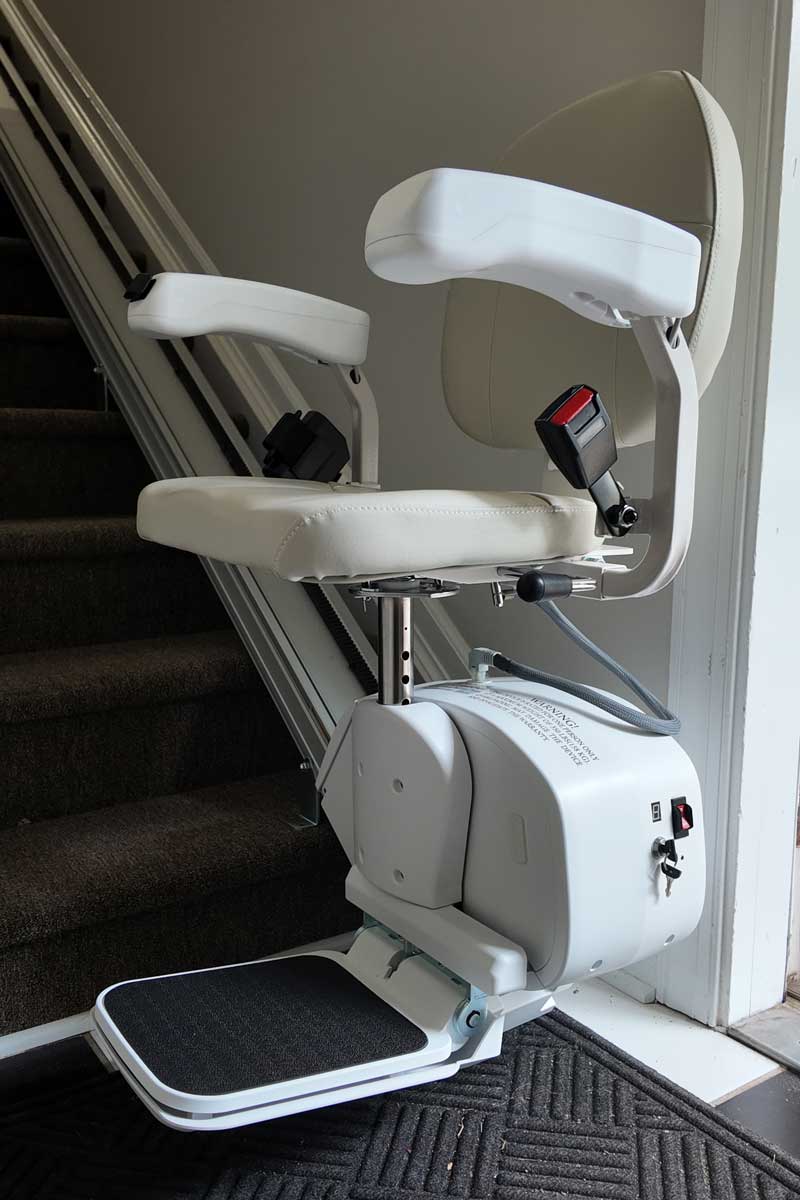

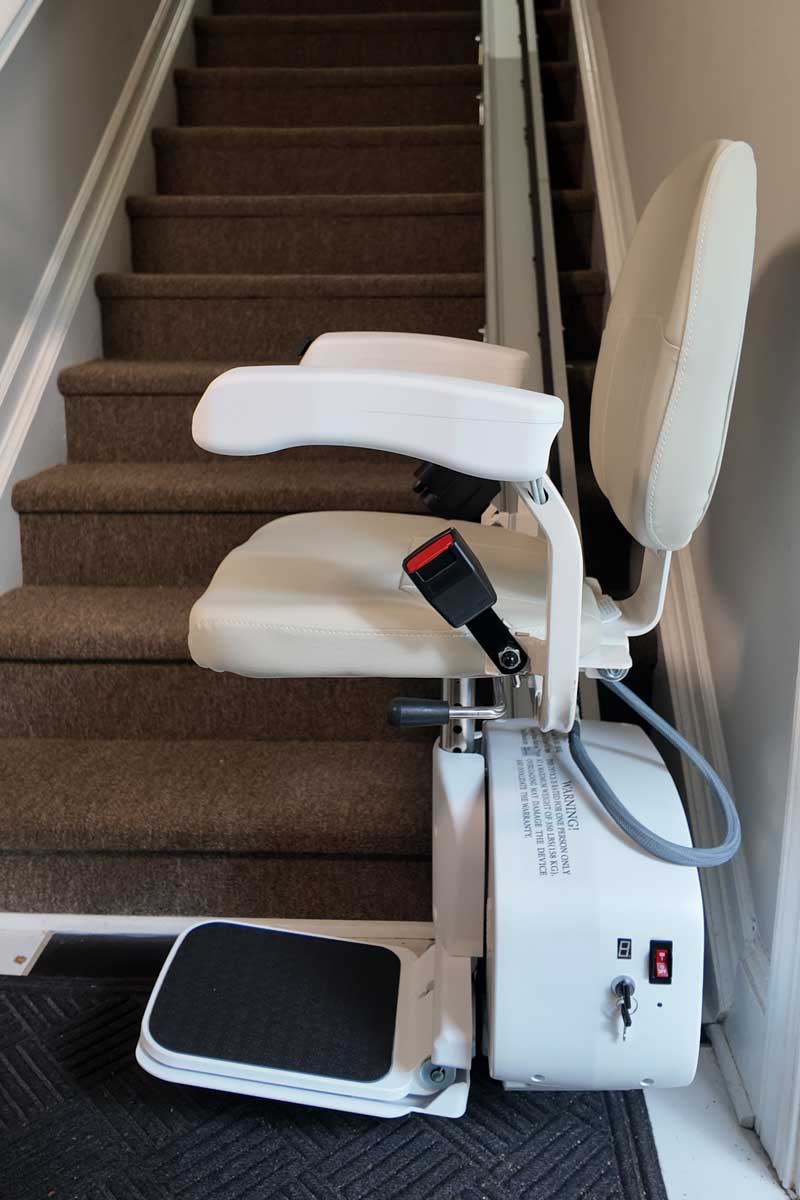

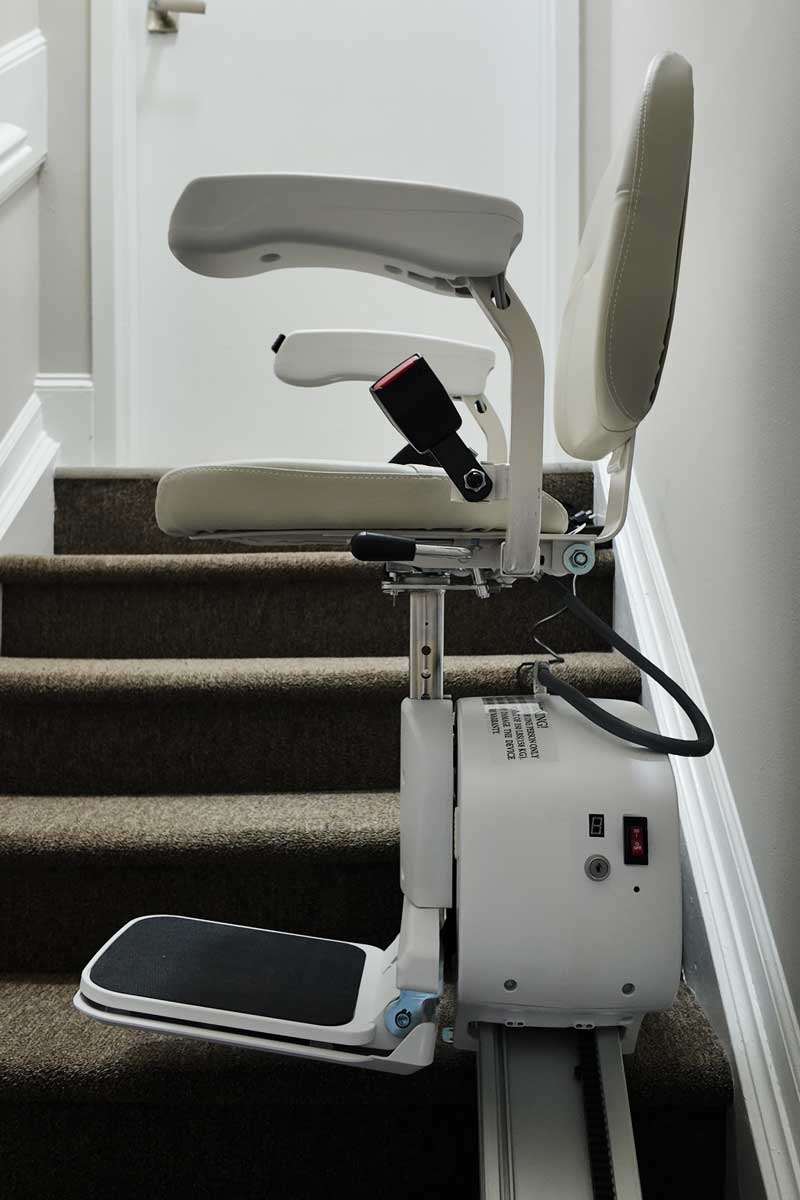

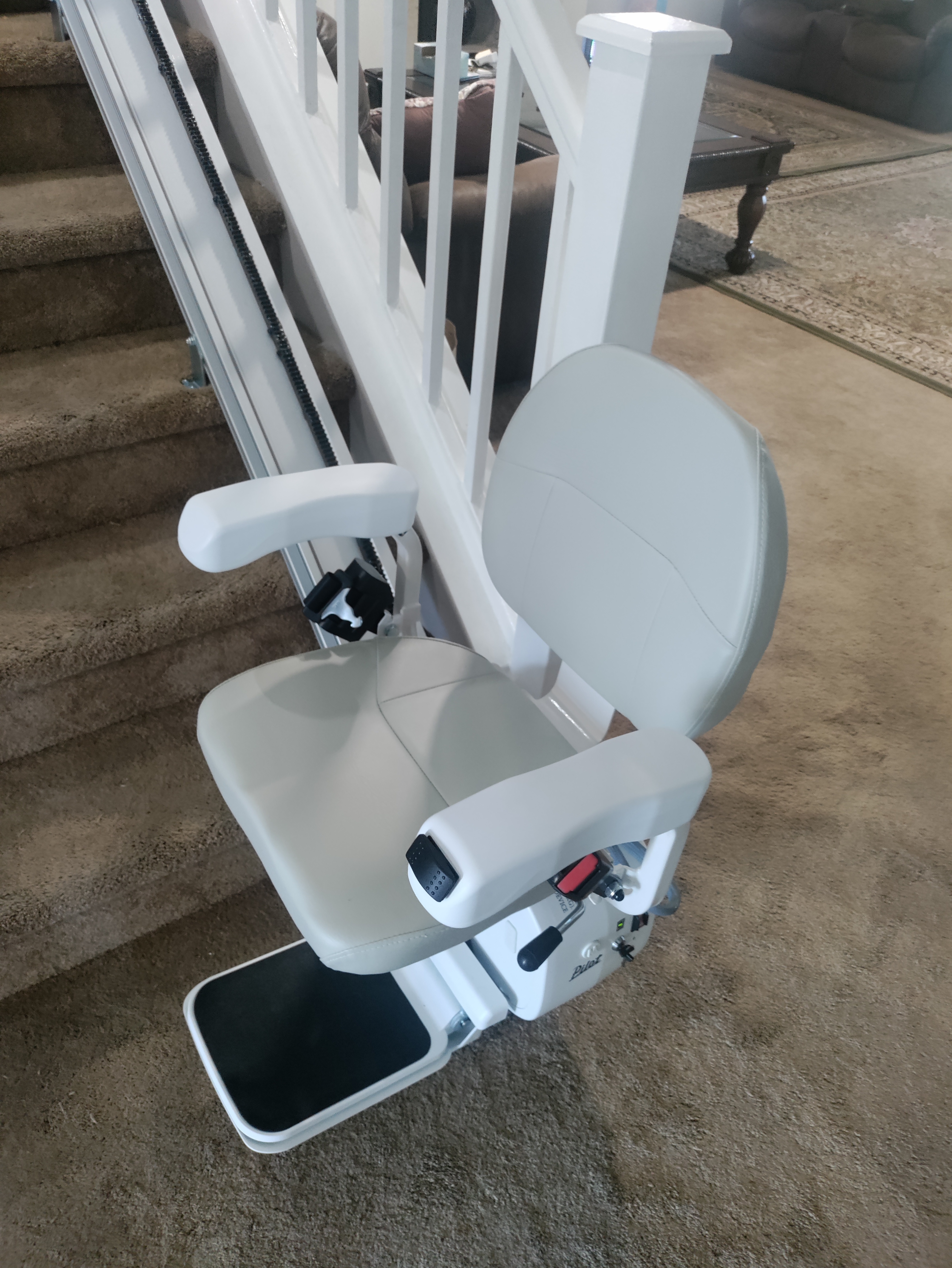

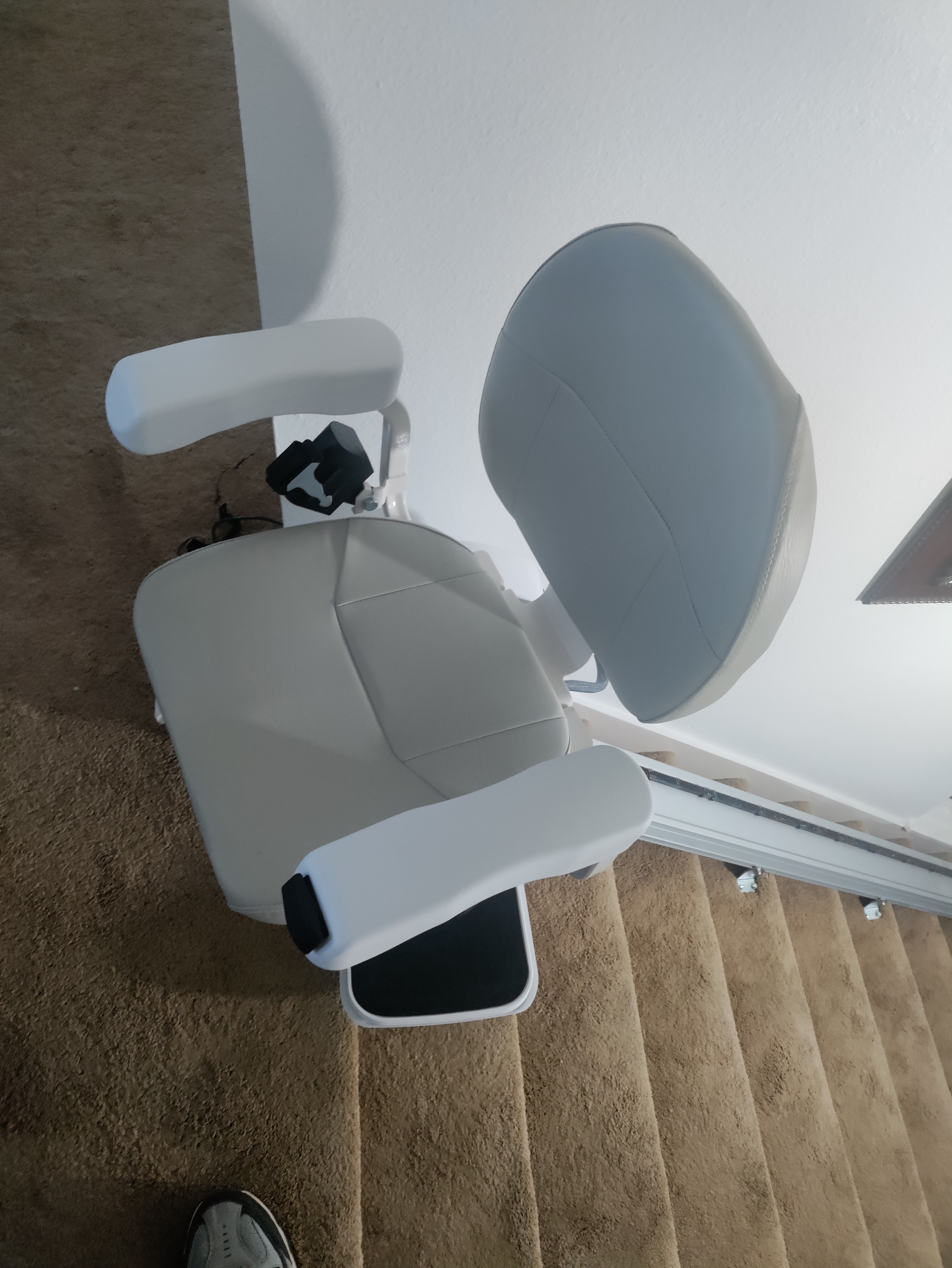

Crest HD - Stair Lift

click an image to enlarge

Warranty

5 years on the motor gear box
2 years on components

$4,441.00

$2,099.00

Plus Shipping

Product Review

(0)

Write a review!

The Crest HD Stair Lift delivers exceptional versatility, heavy-duty performance, and advanced safety features. With a 350 lb. weight capacity, its universal design supports both left and right-side installation, while adjustable armrest width, seat height, and toggle control offer customizable comfort. A 2-position swivel seat ensures safe and easy transfers.

Functionality is enhanced with extra-long charging stations and 9Ah batteries, capable of lasting up to 20 days in power-saving sleep mode during outages. Maintenance is streamlined with a battery test point, diagnostic display, and easy-access service panels.

Robust safety features include:

5 directional safety sensors
Retractable seat belt
Armrest and seat position sensors
Over-speed governor
Electro-mechanical brake system
Key switch for controlled access

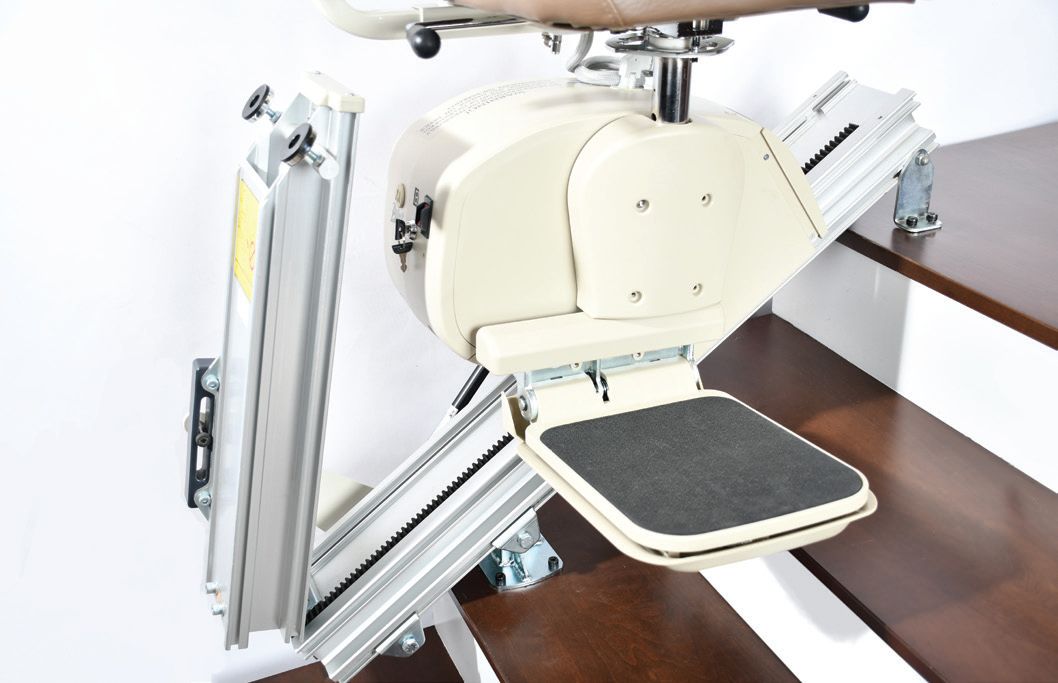

An optional automatic hinged rail ensures safe clearance at the bottom of the stairs, making the Crest HD an ideal solution for both performance and peace of mind.

Note: Capacity is derated to 300lbs if installed at 46 to 55 degree angle or adding the hinged rail option.

* CT, MI and WA residents need to check their local building codes to ensure compliance.

Features

Drive Type	Rack and Pinion
Battery Powered	Yes
Self Installable	Yes
Basic Installation Included	No
Standard Capacity	350 lb
Max Track Length, Standard	16'
Max Track Length, Optional	32'
Seat Width	16"
Seat Depth	16.36"
Swivel Seat	Yes
Swivel Seat Rotation	90 Degrees at top landing
Flip-Up Seat	Yes
Flip-Up Armrests	Yes
Constant Pressure Controls	Yes
Footrest Safety Sensor	Yes
Unit Footprint, In Use	23"

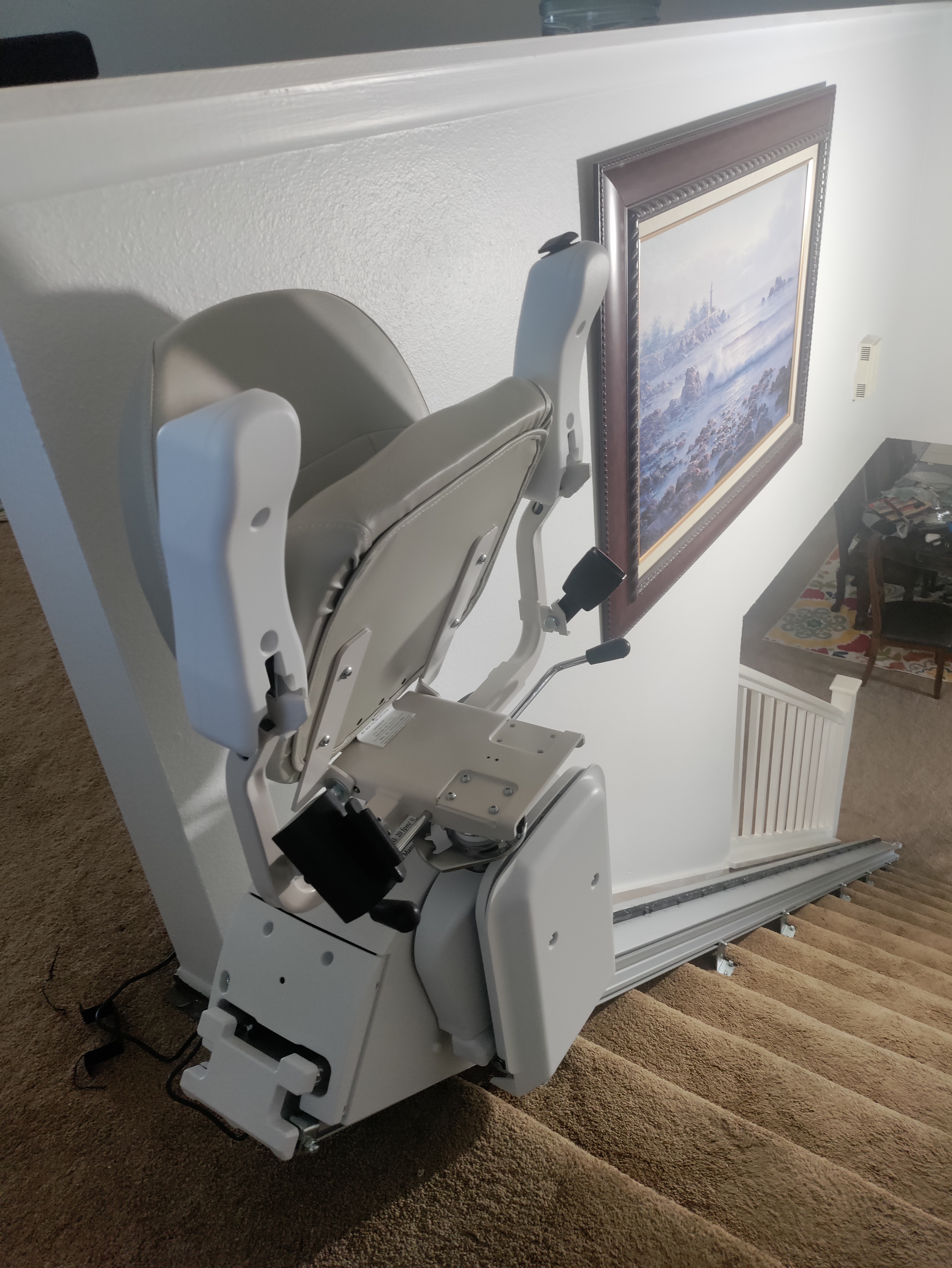

Unit Footprint, Folded	13"
Call Stations Included	2 Wireless
Seat Width, Max	20"
Rail Angle, Min	25°
Rail Angle, Max	55°
Digital Diagnostics Display	Yes
Key Lock	Yes

Options Available

Stair Lift Orientation (Looking Up the Stairs)
- Right
  $0.00
- Left
  $0.00
Upholstery Color
- Beige
  $0.00
- Light Brown
  $0.00
- Dark Brown
  $0.00
- Red
  $0.00
Track Length
- Standard 16' Of Track
  $0.00
- Additional 8' Section of Track
  $384.00
- Track Custom Cut to Length
  $0.00
Stair Lift Measurements According to Measurement Guide
- Step 1 - Total Staircase Length
  $0.00
- Step 2 - Top Landing to Bottom Step
  $0.00
- Step 3 - Stair Width
  $0.00
- Step 4 - Available Space at Bottom
  $0.00
- Step 5 - Height of One Step
  $0.00
- Step 6 - Length of One Tread
  $0.00
- Step 7 - One Step Front Edge to Front Edge
  $0.00
- Step 8 - Available Space at Top
  $0.00
Options
- Hinge Rail
  $834.00
- Power Swivel Seat
  $1,476.00
- 6" Extended Indoor Brackets (each)
  $9.00
- 8' Charging Cable Extension
  $15.00
- Extended Footplate Kit - 2"
  $167.00
- Extended Seat Post Kit - 2"
  $42.00
Installation
- Self-Install
  $0.00
- Nationwide Installation Service
  $599.00
- Double Stair Lift Installation Service - Per Stair Lift
  $437.50
- Nationwide Measurement and Installation
  $749.00
Installation Special Cases
- Installation In Remote or Limited Access Location
  $285.00
- Installation On Concrete, Steel, or Tile Stairs
  $300.00
- Additional Charge for Installation in the States of: New York, and Massachusetts
  $150.00
- Existing Stair Lift Removal
  $499.00
Shipping
- Additional Shipping Charge for Unit with More Than 16' of Track
  $154.00
- Shipping to Alaska or Hawaii (Call for Price)
  $0.00
