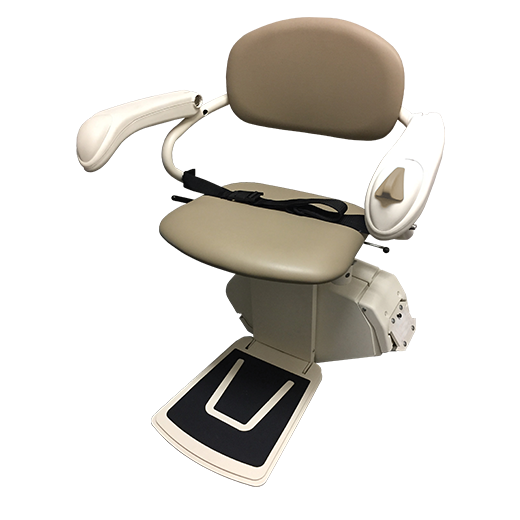

Harmar Pinnacle Stair Lift, 300 lb. with Folding Rail

spacer
  • Harmar Pinnacle Stair Lift, 300 lb. with Folding Rail
  • Person Riding Up the Stairs

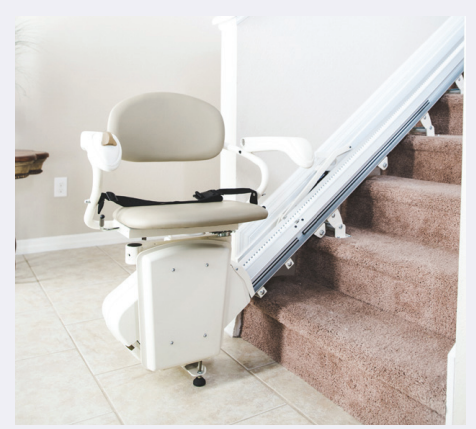

  • Parked at Bottom

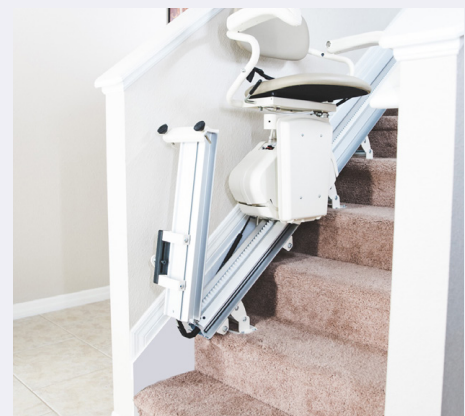

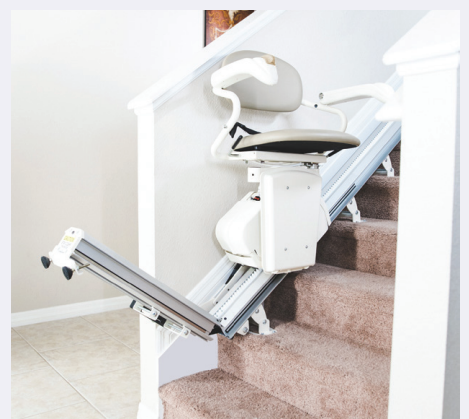

  • Folding Rail at Bottom Raising
  • Folding Rail Fully Lifted to Clear Access at Bottom of Stairs
spacer
click an image to enlarge
Add To Cart
$6,495.00
$5,145.00
Plus Shipping
Product Review
(0)
(0)
The Pinnacle SL300 Stair Lift is competitively priced with plenty of value. Very compact, it runs smoothly, and requires little to no maintenance.

The Pinnacle Stair Lift has an established reputation as an industry leader for its innovative design, solid performance and reliability. Its patented drive system serves as the cornerstone that makes this stair lift different from all others on the market.

The SL300 gives you peace of mind knowing its efficient motor offers extended performance during power loss, up to 40 trips up and down. Owners of this stair lift will enjoy a smooth stable ride due to its patented Helical Worm Gear and Nylon Polymer Gear Rack. Pinnacle is the most compact of stair lifts, folding closer to the wall so others can pass easily.

Harmar's exclusive automatic and mechanical folding rail removes obstructions and trip hazards at the lower landing area. Its operation is automatic, the user does not need to stop or have someone else assist. And since it’s mechanical, there are no additional switches or controls.
* CT, MI and WA residents need to check their local building codes to ensure compliance.
spacer
Features
Drive TypePolymer Worm / Worm-Rack
Battery PoweredYes
Self InstallableYes
Basic Installation IncludedNo
Standard Capacity300 lb
Max Track Length, Standard15.5'
Max Track Length, Optional70'
Seat Width19"
Seat Depth16"
Swivel SeatYes
Flip-Up SeatYes
Flip-Up ArmrestsYes
Constant Pressure ControlsYes
Footrest Safety SensorYes
Unit Footprint, Folded13.6"
Rail Angle, Min32°
Rail Angle, Max45°
Digital Diagnostics DisplayNo
Key LockYes

Options Available

  • Track Lengths Selection: 15' (180") is Standard *

    • * Actual track is 7" longer. A 7" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.
      $0.00
      option_name
      spacer
    • 15' (180") of Track
      $0.00
      No Image
      spacer
    • Length in inches if Shorter than 180" (allow +7" for entry/exit)
      $0.00
      No Image
      spacer
  • Additional Track (Maximum 70' Including the 15' Standard Track)

    • Up to 3' of Additional Track
      $215.00
      No Image
      spacer
    • Up to 5' of Additional Track
      $358.00
      No Image
      spacer
    • Up to 7'9" (93") of Additional Track
      $500.00
      No Image
      spacer
  • Additional Brackets (comes with standard)

    • Standard Brackets
      $29.00
      No Image
      spacer
    • Tall Brackets
      $29.00
      No Image
      spacer
  • Options

    • Seat Belt
      $0.00
      No Image
      spacer
    • Track Cut to Custom Length (Required for any track cut)
      $136.00
      No Image
      spacer
    • Key Lock on Chasis
      $136.00
      No Image
      spacer
  • Call Stations

    • Top & Bottom Call-Send Stations
      $0.00
      No Image
      spacer
  • Orientation (looking UP the staircase)

    • The stair lift will be on the left
      $0.00
      No Image
      spacer
    • The stair lift will be on the right
      $0.00
      No Image
      spacer
  • Installation

    • NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout
      $0.00
      No Image
      spacer
    • Self Installation
      $0.00
      No Image
      spacer
    • Nationwide Installation
      $599.00
      No Image
      spacer
    • Nationwide Installation and Measurement Service
      $749.00
      No Image
      spacer
    • Double Stair Lift Installation Service - Per Stair Lift
      $437.50
      No Image
      spacer
    • Stair Lift Removal and Disposal
      $499.00
      No Image
      spacer
  • Installation Special Cases

    • Installation On Concrete, Steel, or Tile Stairs
      $300.00
      No Image
      spacer
    • Installation In Remote or Limited Access Location
      $285.00
      No Image
      spacer
  • Measurements

    • Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.
      $0.00
      No Image
      spacer
    • 1. Overall length
      $0.00
      No Image
      spacer
    • 2. Top stair to bottom stair
      $0.00
      No Image
      spacer
    • 3. Staircase width
      $0.00
      No Image
      spacer
    • 4. Bottom clearance
      $0.00
      No Image
      spacer
    • 5. Rise of one step
      $0.00
      No Image
      spacer
    • 6. Tread of one step
      $0.00
      No Image
      spacer
    • 7. Diagonal
      $0.00
      No Image
      spacer
    • 8. Door at the top
      $0.00
      No Image
      spacer
    • Need help measuring? Please see our "How to Measure" page.
      $0.00
      No Image
      spacer
spacer
What customers say about this product...
This product currently has no reviews. Would you like to leave one?
